Specifications
car charger1.Soft switch in all progress
2.High efficiency, high quality
3.multiple protection
4.for EV ch
car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger

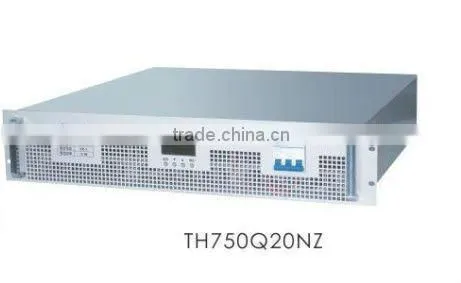

500V600V 700V APFC modular EV charger
battery charger battery charger battery charger battery charger battery charger battery charger battery charger battery charger
Specifications: car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger car charger

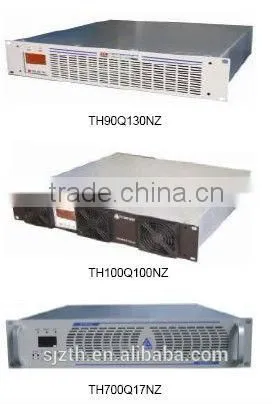

| Model | TH350Q30NZ-2 | TH450Q14NZ-A | TH500Q20NZ-A | TH500Q24NZ-2 | TH700Q15NZ-A | TH700Q17NZ-2 | |
| Weight(KG) | 20kgs | 10kgs | 20kgs | ||||
| Dimension(H*W*D)mm | 88*482*450 | 482×88×260 | 88*482*450 | ||||
| Input voltage (VAC) | 380V AC±15%, 3 phases | ||||||
| Frequency | 45Hz ~ 65Hz | ||||||
| Outout voltage(VDC) | 150-350V | 300-450V | 350-500V | 250-500V | 450-750V | 400-700V | |
| Max output current(A) | 30A | 14A | 20A | 24A | 16A | 17A | |
| Max power (KW) | 10KW | 6KW | 10KW | 12KW | 12KW | 12KW | |
| Efficiency | ≥92% | ≥93% | ≥92% | ≥92% | ≥92% | ≥93% | |
| Power factor | ≥0.93 (PFC) | ≥0.99 (APFC) | ≥0.99 (APFC) | ≥0.93 (PFC) | ≥0.99 (APFC) | ≥0.93 (PFC) | |
| Total harmonic current | ≤30% (PFC) | ≤ 5% (APFC) | ≤ 5% (APFC) | ≤30% (PFC) | ≤ 5% (APFC) | ≤30% (PFC) | |
| Current stabilization | ≤ ± 1% | ||||||
| Voltage stabilization | ≤ ± 0.5% | ||||||
| Current share imbalance | ≤ ± 5% | ≤ ± 5% | ≤ ± 3% | ≤ ± 5% | ≤ ± 5% | ≤ ± 5% | |
| Soft start time(S) | 3 ~ 8s | ||||||
| Cooling type | fan cooling | ||||||
| Ambient conditions | working temperature | -20°C ~ 50°C | |||||
| storage temperature | -40°C~ 60°C | ||||||
| relative humidity | ≤ 90%, no condensation | ||||||
| Load grade | Continuous work under I grade(100%)rated output current | ||||||
| Auto current limit | Constant current output if over threshold 105% rated current | ||||||
| Over voltage protection | No output, self-recoverable | ||||||
| Short circuit protection | The ouput voltage drops to protect, self recoverable | ||||||
| Reverse connection protection | No output,self-recoverable | ||||||

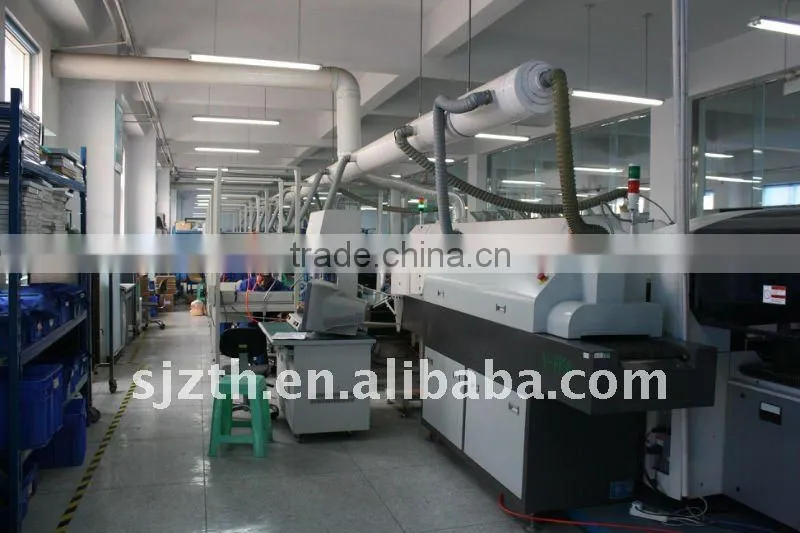

production shop
