Specifications
1.320 * 240 LCD display;2.Touch Screen
3.Communication interface: RS485, RS232;
4.Communication protocal: CDT, MODBUS

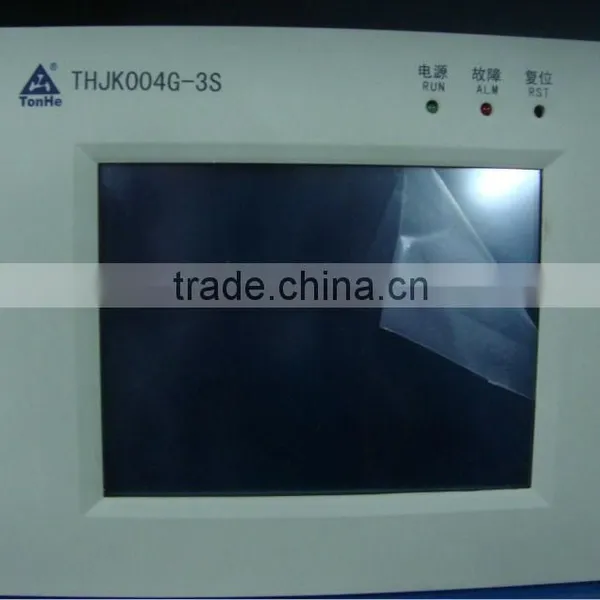

The electric power monitor THJK004G-3S is modular designed and the matched RTU data acquisition modules as well. The host monitor and data acquisition modules can be combined flexibly. The size of all data acquisition modules are same and easy for installation. They are ZHCL (general data), DCXJ (battery data), KGL (switches), JYJC (insulation data) . The specification is as follows Table 1-1
Name |
Model |
Function |
HOST unit |
THJK002G-3S |
Blue color 320*240 pixels LCD, screen-touch type monitor |
ZHCL unit |
ZHCL-2 |
Detects 1 AC voltage Detects 3 DC voltage, 2 current,1 temperature Detects 24 DI, provides 8 DO |
ZHCL unit |
ZHCL-3 |
Detects 2 AC voltage Detects 6 DC voltage, 4 current,2 temperature Detects 32 DI, provides 8 DO |
DCXJ unit |
DCXJ-19 |
Detects 19 batteries the voltages, 1 temperature |
DCXJ unit |
DCXJ-55 |
Detects 55 batteries the voltages, 2 temperature |

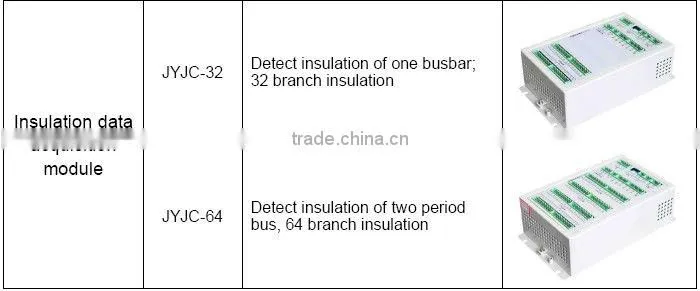

JYJC unit |
JYJC-64 |
Detects 2 bus insulation, 64 branch insulation |
JYJC unit |
JYJC-32 |
Detects 2 bus insulation, 32 branch insulation |
KGL unit |
KGL-64 |
Detects 64 DI, provides 8 DO |
- Blue color 320*240 pixels LCD, screen-touch type monitor.
- The screen-touch type operation is advantageous for the establishment parameter and the inquiry information.
- Provides RS485, RS232; Provides protocol CDT, MODBUS
- The real-time clock demonstrated, after power failure clock normal operation.
- May save 200 alarm logs, 48 work logs, after the power failure the information does not lose.
- Battery charge management function.
SUPPORTING DATA ACQUISITON DODULES
