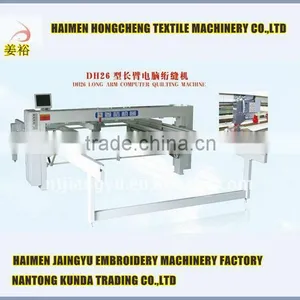

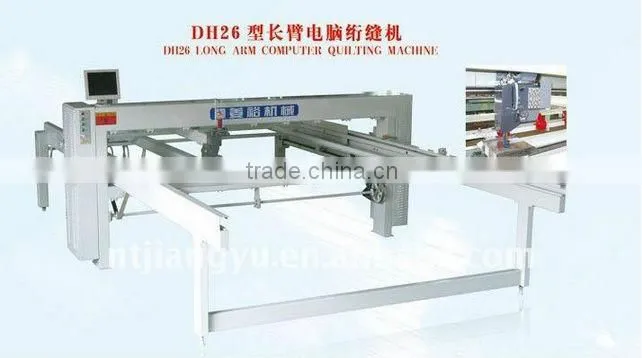

DH26 LONG ARM COMPUTER QUILTING MACHINE

DH26 LONG ARM COMPUTER QUILTING MACHINE thumbnail-1
DH26 LONG ARM COMPUTER QUILTING MACHINE photo-1
US$ 5100.00 - 5100.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JIANGYU
Contact Supplier Request Quote Chat Now
Haimen Hongcheng Textile Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name JIANGYU
Model Number DH-26
Max Sewing Speed 2200rpm
Max Sewing Thickness 1200gsm
Number of Head Single Head
Moving Style Head Moved
Voltage 220V
Power(W) 50Hz1.5Kw
Dimension(L*W*H) 5.8m*4.2m*1.4m
Weight 1000KG
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Type

DH26-2628

DH26-2832

DH26-3032

DH26-3535

Quiliting Size

2.6*2.8m Max

2.8*3.2m Max

3.0*3.2m Max

3.5*3.5mMax

Needle Drop Size

2.4*2.6m Max

2.6*3.0m Max

2.8*3.0m Max

 3.3*3.3m Max

Sewing-Machine

Single-line style, double-line lock style, big Rotary Shuttle

Sewing Thick

1200g/m2(Max)

Sewing Speed

2000(SPM)  (Stitch)2~7mm

Needle

MR5 18~22#

Dimensions

5*4*1.4m

5.4*4.2*1.4m

5.4*4.4*1.4m

5.8*5*1.4m

Power

220VAC,50Hz,1.5KW

Weight

1700KG

1800KG

1900KG

2000KG



function:

1.Needle head is controlled by one big frame.

2.Easy modification operation of needle distance and speed.

3. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.

4. the needle automatically stops at high position when the machine stops.

5. the machine stops when any broken thread is automatically detected.

6. Quilting condition and operation indication are shown in real time.

7. It automatically returns to original point.

8. It has the function of pattern tracing to make the needle position quickly.

9.It has the function of pattern browsing.

10.It has the function of work-piece and time statistics.
