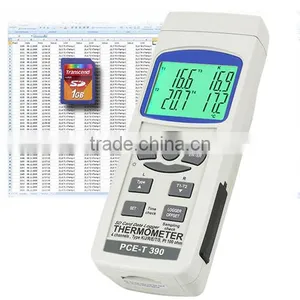

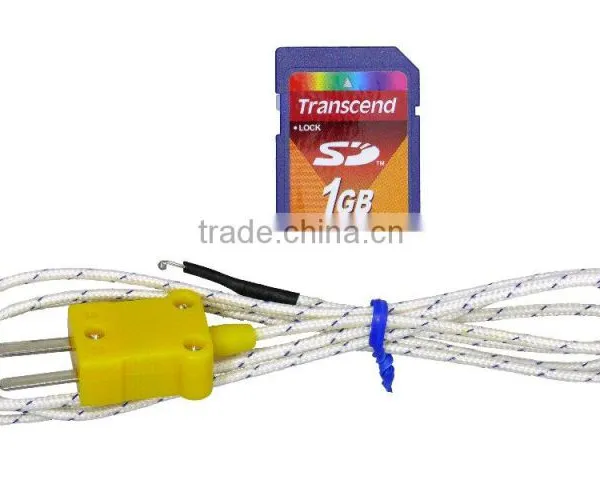

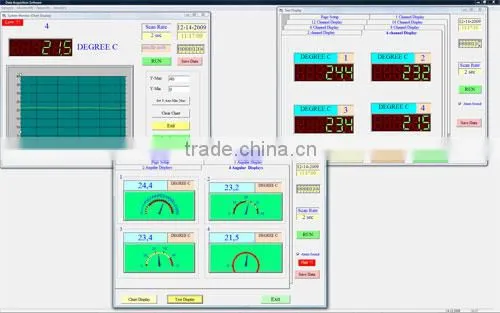

The digital thermometer PCE-T390 has four input channels for type K and J temperature probes and two input channels type Pt100 temperature probes. Through the internal SD card up to 16 GB and the optional software incl. RS-232 cable , the measurement data can be transfered to PC for further analysis. So this device can work online or offline as data logger. The intervals of measurement can be set. The measure results will be indicated on the display. Temperature sensors type-K, J and PT100 can be used on the PCE-T390 digital thermometer.
4 input channels for type-K, J and PT100 |
- Low battery indicator |
|
Fields of application | ||

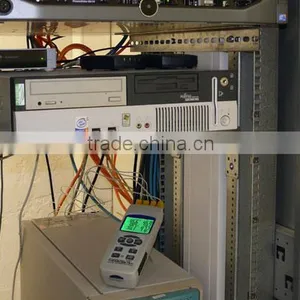

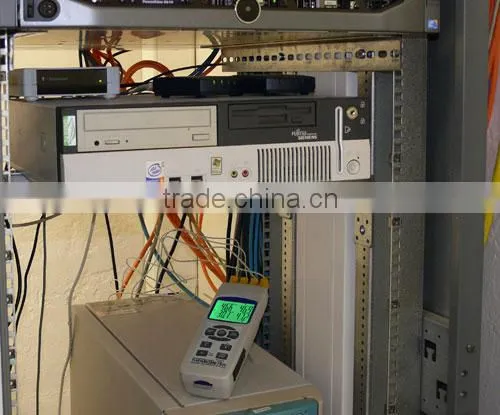

The PCE-T390 digital thermometer can be used for taking measurements in situ and thanks to its internal memory it can take readings over an extended period of time for such applications as: | ||
Technical specifications | ||
Measuring ranges |
Type K: -100 ...+ 1370 °C |
|
Resolution |
Type K: 0,1 °C (-100 ... +1000 °C) |
|
Accuracy at 23 ºC ±5 ºC |
Type K: ± (0,4 % + 1 ºC) |
|
Time intervals |
1 ... 3600 seconds (adjustable) |
|
Temperature sensor inputs |
4 sensors input type K / 2 and Pt100 |
|
Memory |
flexible through the SD memory card |
|
System requirements for the software |
from Windows 95 |
|
Inputs |
4 |
|
Display |
52 x 38 mm with backlight LCD display |
|
Power |
6 x 1,5 V AA batteries / |
|
Auto shut-off |
The digital thermometer shuts off after 30 minutes of inactivity. This function can be disabled. |
|
Operating temperature |
0 ... +50 °C, <85 % H.r. |
|
Dimensions |
177 x 68 x 45 mm (height x width x depth) |
|
Weight |
490 g (with battery) |
|
