FRS-1100W Series Color Ribbon Printing Continuous Sealing Machine

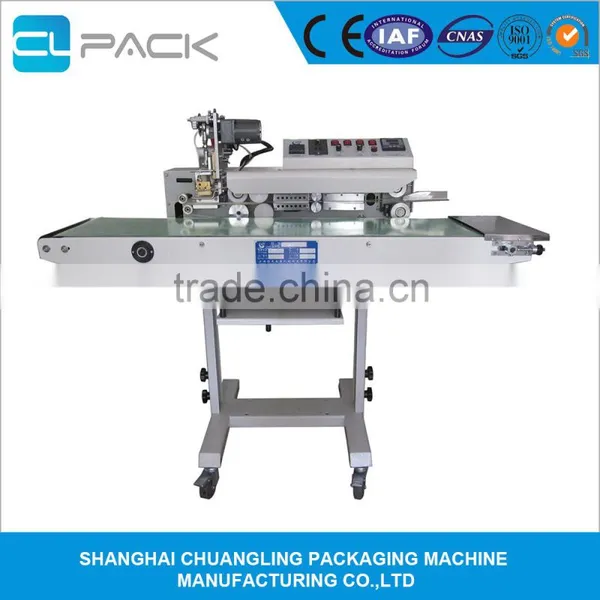

FRS-1100W Series Color Ribbon Printing Continuous Sealing Machine photo-1
US$ 1250.00 - 1500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Machinery & Hardware
Packaging Type Cartons
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage AC 220V/50Hz
Power 100W
Place of Origin Shanghai, China
Brand Name CLPACK
Model Number FRS-1100W
Dimension(L*W*H) 1260*630*1150mm
Weight 130KG
Certification CE Certification
After-sales Service Provided Engineers available to service machinery overseas

FRS-1100 series color ribbon continuous printing  sealing machine



Brief introduction:
     FRS-1100 is suitable for plastic film bag sealing, widely used in food, pharmaceutical, chemical, household, seeds and other industries. It is the best sealing equipment for factory`s and shop`s bulk packaging. The machine adopts electronic constant temperature control mechanism and stepless speed transmission can seal different materials plastic bag, and with packaging lines supporting to use of unrestricted length sealing. The machine has high effect with continuous sealing, reliable sealing quality, reasonable structure, convenient operation.


Product parameters:

Model
FRS-1100WQ
FRSC-1100W
FRS-1100W
FR-1100W
Thermal power
300W*2
300W*2
300W*2
300W*2
Driving motor power
60W/220V
60W/220V
60W/220V
60W/220V
The printing electric power
100W
100W
100W
——
Pump power
1200W
——
——
——
Charge pump power
180W
——
——
Ribbon coding machine
Ribbon coding machine part: with the word set (0-2) *5, (3-9) *4 particles, (B, C, A) each 1, 5 blank thickness, blank sheet 10,  temperature of printing machine can be adjusted, the characteris clear and neat

Sealing speed
0-16m/min
Sealing width
Sealing width: 17mm, belt width: 20mm, sealing texture: horizontal stripes (can be customize)
Sealing temperature
0-300℃
The height of sealing center to the conveying table
10-40mm
Frame material
Carbon baking
Maximum load of single piece
1.5KG
Maximum load of conveying platform
3KG
Size of conveying table (L*W)
1200*310mm
Size of conveyor belt (L*W)
2380*285mm
Size of Equipment (L*W*H)
1260*630*1150mm
Size of packing box(L*W*H)
1300*700*1250mm
Net weight
115KG
123KG
110KG
103KG
Gross weight
135KG
143KG
130KG
123KG
