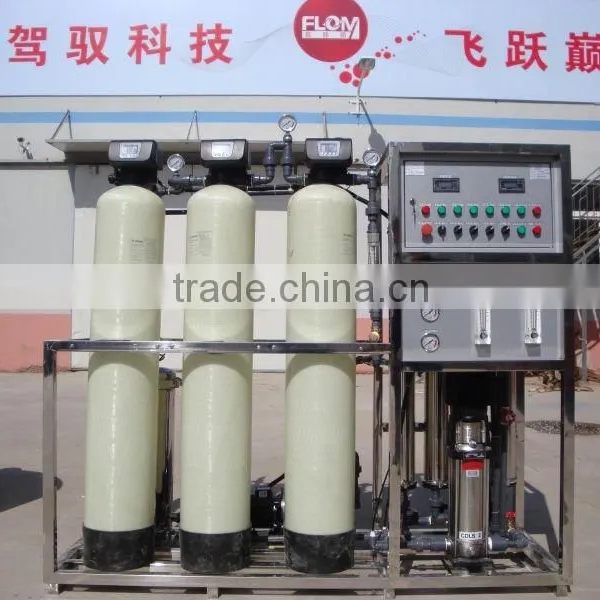

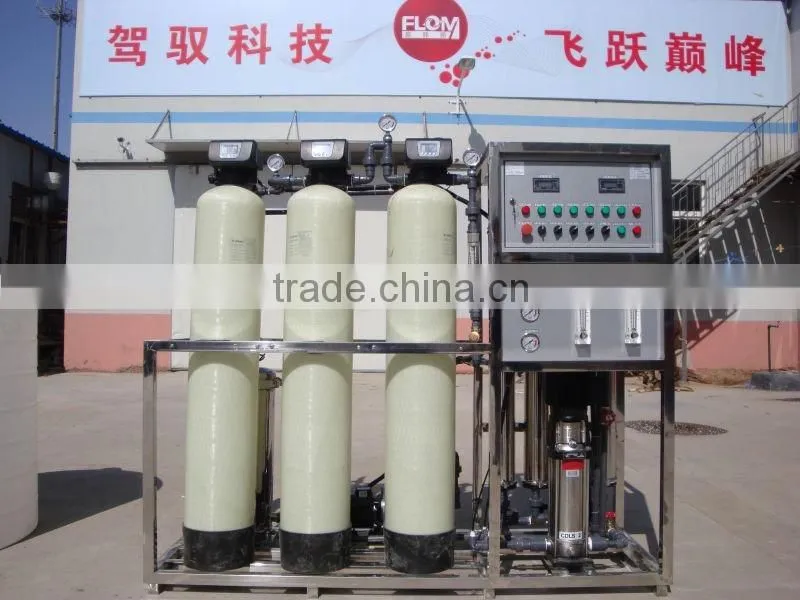

Help CenterIndustry Water Treatment Equipment/system/machine 1T/h
Related Products
Specifications
water treatment equipmentThe system is controlled by one single chip (PLC), all movements work automatically under preinstalledWater treatment equipment (Industrial Water Purification System)
1, Project category: The equipment sale &installment& service (Turnkey Project)
2,Raw water: underground water /tap water
Raw water design temperature:25°C
3,Producing water production: 1m3/h
Producing water conductivity: 1µs/cm; 0.1-1.0MΩ/cm
4, Desalination rate >=98%; Recovery rate >=55%
5,Making water process:Preteatment+Reverse osmosis+Mixed bed
Technical process
Raw water tank -Raw water pump - Multi-media filter -Acticarbon filter–Full automatic softener- salt case- Precision filter - single stage RO plant-1st Purified tank-Twin stage RO plant -Ultraviolet sterilizer -2nd purified water -Terminal micro filters – RO water
System characteristics
* The system is controlled by one single chip (PLC), all movements work automatically under preinstalled procedure and with full automatic function (automatically producing water,automatic flushing,scarcity of Inlet water/water tank full of water auto-stop).
* Structure arrangement is compact, has small foot-print, saving space effectively.
* System consumes low energy, thus saves energy effectively.
* Consumables life is long, with low cost of producing water.
* System works safely and reliably, while its water pipeline is closed with stable effluent quality.
it separates strictly H2O and the impurities like inorganic salt,heavy metal ion,organic matter,colloid,bacterium,virus ,etc in source water.
We Flom may provide the detailed project program, the content is as follows:
1.Project analysis: Raw water quality analysis, construction requested analysis;
2.Standards of drinking water
3.The solutions of ultrapure water Instructions of ultrapure water process, detailed flow chart;
4.Construction solutions
5.Equipment technical parameters
6.System layout and technical parameters
7.Equipment quotation
8.Mode of payment
9.Annual consumables schedule.
water treatment equipment
