Specifications
aluminum profile used for handrail1)material: aluminum
2)temper:t5/t6
3)finish:anodized/electrophoresis/sandblasting etr

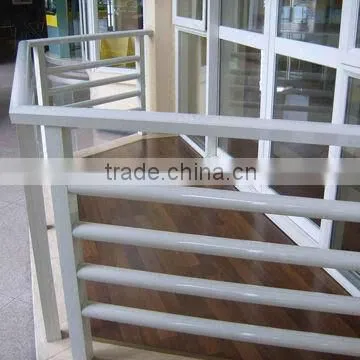

aluminum profile used for handrail
Specification:
Material |
6063,6060,6061,6005 |
Temper |
T4,T5,T6 |
Surface treatment |
Mill Finish,Anodized,Eletropharesis,Powder Coated, Wooden Finish, |
Colour |
Silver,Black,Red,Blue,or as required |
Length |
≤6m |
Shape |
Round,Square,T-slot,or as per the drawings and samples |
Fabrication |
cutting,drilling,punching,bending,etc |
Wall thickness |
≥0.5mm |
Package |
inner plastic paper interleaving each piece profile,outer fixed by plywood, or as per your requirements |
Payment terms |
TT or LC at sight |
Delivery time |
15-20 days after order confirmation |
Certification |
ISO 9001:2008;ISO14001:2004; |
Warranty |
above10 years |
Profile Application |
1)Industrial profiles 2)Decoration/Furniture profiles 3)Construction/Building profiles 4)Aluminum Pipes and tubes 5)Door&Window profiles 6)Curtain Wall profiles 7)Aluminum Heat Sink 8)Aluminum Angle/Channels |
Capacity |
3000 tons per month |
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.70 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.4-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
3)Anodized
Grade |
Anodizing thickness |
Hole scaling quality of oxide layer |
|
Average thickness |
Local thickness |
P. Cr acid-erosion weight less method |
|
AA10 |
≥10um |
≥8um |
≤30 mg/d m2 |
AA15 |
≥15um |
≥12um |
|
4)Powder coating & wooden-grained
Coating thickness |
Coating impress rigidity |
Adhesive force of coating layer |
40-120um |
Indentation hardness>80 |
0 grade |

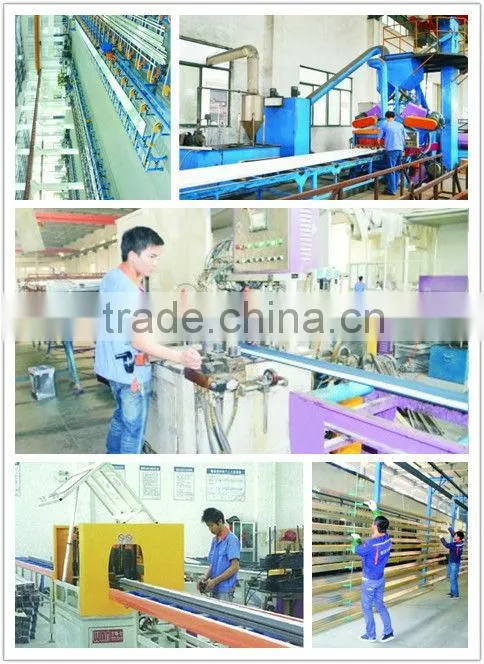

equipment show
Please contact us for more details freely.
