Home > Industrial Equipment & Components > Industrial Ceramic Products > Ceramic Insulator > Electrical Insulation Al2O3 Alumina Ceramic Substrate Plates

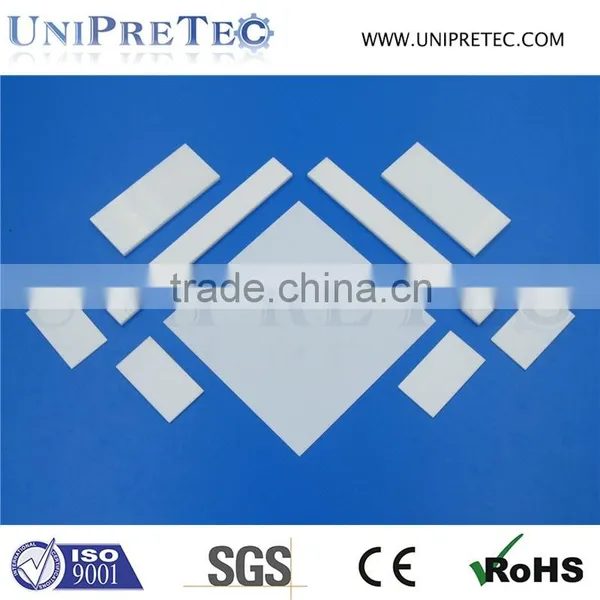

Electrical Insulation Al2O3 Alumina Ceramic Substrate Plates

Name: Electrical Insulation Al2O3 Alumina Ceramic Substrate Plates
Brand: UNIPRETEC
SKU: 104833801

Electrical Insulation Al2O3 Alumina Ceramic Substrate Plates thumbnail-1

Electrical Insulation Al2O3 Alumina Ceramic Substrate Plates photo-1

US$ 1 - 100 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

UNIPRETEC

Model Number:

UPT-ALC-a15080503

Contact Supplier Request Quote Chat Now

Xiamen Unipretec Ceramic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name UNIPRETEC

Model Number UPT-ALC-a15080503

Type Insulating Ceramics

Material Alumina

Electrical Insulation Al2O3 Alumina Ceramic Substrate Plates

PRODUCT DESCRIPTION

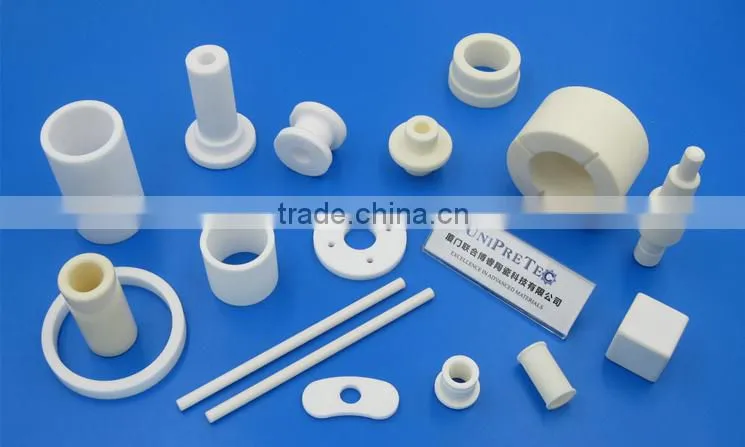

Alumina ceramic ( Aluminum Oxide or Al2O3 ) is an excellent electrical insulator and one of the most widely used advanced ceramic materials. Additionally, it is extremely resistant to wear and corrosion. Alumina components are used in a wide range of applications such as electronics & electrical, pump components and automotive sensors, medical, semiconductor, furnace parts...

UNIPRETEC offers a variety of alumina compositions, typical grades that are used for modern industrial applications are of high purity from 90% to 99.7%.

Alumina components can be formed by a variety of manufacturing techniques such as dry pressing, cold isostatic pressing, injection molding and extrusion. Finishing can be accomplished by precision grinding and lapping, laser machining, metallizing and a variety of other processes.

Overview of typical properties:

• Good electrical insulation;

• High mechanical strength;

• Excellent wear resistance;

• Excellent corrosion resistance;

• Low dielectric constant;

• High using temperature;

• High thermal shock resistance...

Overview of typical applications:

• Pump seals and other components;

• Wear resistant inserts;

• Insulating washers or bushings;

• Semiconductor components;

• Aerospace components;

• Automotive sensors;

• Electrical or electronic insulators...

MATERIAL PROPERTIES

	Unit	95% Al2O3	99% Al2O3	ZrO2	GP-Si3N4
Color	-	white	ivory	white	gray
Density	g/cm³	3.65	3.88	5.95	3.22
Water Absorption	%	0	0	0	0
Young's Modulus	Gpa	280	350	205	295
Vickers Hardness	Gpa	14	20	12	18-20
Flexural Strength ( at R.T. )	Mpa	280	300	900	650
Compressive Strength ( at R.T. )	Mpa	2000	2500	2200	2200
Thermal Conductivity ( at R.T. )	W/(m.K)	18-25	30	2.2	25
Thermal Shock Resistance	ΔT(°C)	220	180-200	280-350	450-650
Max. Working Temperature ( at R.T. )	°C	1500	1700	850	1200
Volume Resistivity ( at R.T. )	Ω.cm	>10^15	>10^14	>10^12	>10^14
Dielectric Constant (1 MHz at R.T. )	-	9.50	9.80	26	8.20
Dielectric Strength	kV/mm	16	22	-	16

COMPANY INFORMATION

As a professional company in advanced ceramic industries, UNIPRETEC is manufacturing and supplying high quality and high precision ceramic components for clients from worldwide. Our ceramic products are widely used in various fields of automotive, metallurgy, machinery, electronic & electrical, food, chemical, medical..... With experienced engineers and talented workers, we are able to evaluate projects and drawings properly, make valuable suggestion, supply satisfying products. Our materials including:

- Aluminium Oxide / Alumina ( 95% 96% 99% 99.5% 99.7% Al2O3 )
- Zirconium Oxide / Zirconia ( Yttria stabilized ZrO2 )
- Silicon Nitride ( Gas pressure sintered & Hot pressed Si3N4 )
- Boron Carbide ( B4C )
- Boron Nitride ( Hot pressed hexagonal BN )
- Machinable Glass Ceramic

Aiming at building long term cooperation relationship with our clients, we set our motto as "Quality First". Far now, our products have been exported to North Amirica, East Europe, West Europe, East Asia, Southeast Asia and get good reputation from our client.

FAQ

Q1: What are advanced ceramics?

>>> Advanced ceramics - also referred to as engineering, structural or technical ceramics - have been processed to be very pure and, in general, have superior properties to unrefined ceramics. Many are man-made, i.e. they do not occur naturally, e.g. silicon nitride, and their properties can be enhanced to produce very high strength at high temperatures, good corrosion resistance, etc.

Q2: What types of ceramic do you supply?
>>> Alumina in purity from 90% to 99.7%, yttria stabilized zirconia (Y-PSZ), hot pressed boron nitride, machinable glass ceramic, boron carbide, silicon nitride, mullite and cordierite.

Q3: Can I machine the ceramics myself?
>>> The harder ceramics like alumna and zirconia will require diamond tooling but other materials like Machinable Glass Ceramic and Hot Pressed Boron Nitride can be machined. To get the right result it does take time, experience and semi-specialised tooling but it can be done and many of our customers take advantage of this when they need extremely fast solutions in-house.

Q4: Can I get a sample or purchase a small quantity?
>>> Yes, we are happy to supply small samples of material for you to test. We can also supply prototype quantities through to volume production to suit your needs.

Q5: How long will it take for you to send me a quote?
>>> This depends totally on the complexity of your requirements. For simple items such as bars and rods, we can generally supply a quotation within 24 hours.

Q6: What's the delivery time?
>>> For our standard products, like ceramic protection tubes and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30 working days.
