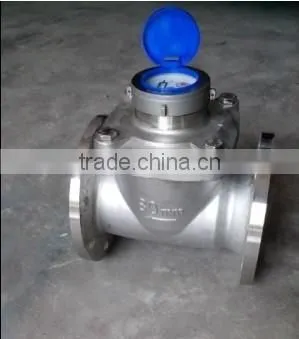

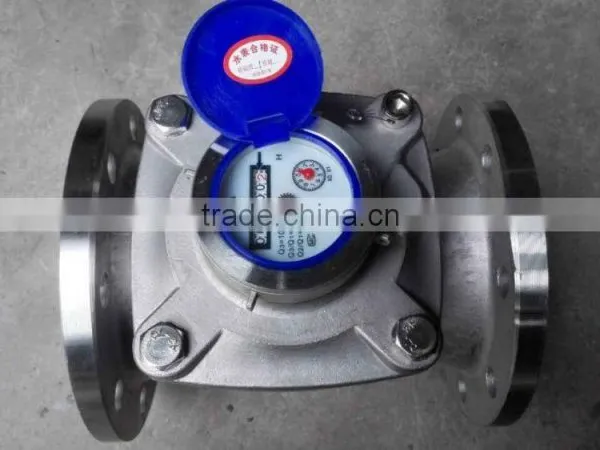

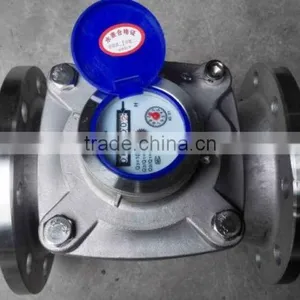

Large caliber stainless steel woltman water flow meter DN50-DN300 !
Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance;
--Dry-dial, Magnetic drive;
--Large flow capacity, small pressure loss;
--Resist water hummer and pollution;
--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
--Selected high quality materials for steady and reliable characteristic;
--Technical data conform to international standard ISO 4064.Class B
The meters can be equipped with a kind of remote transmission device, the pulse generating volume could be 100,1000 or 10000 L/pulse.
Working condition:
Water temperature: 0.1℃~50℃ (0.1℃~90℃ for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors:
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
MAIN TECHNICAL SPECIFICATIONS:
Type |
Size (mm) |
Class |
qs Overload Flow |
qp Permanent Flow |
qt Transitional Flow |
qmin Min. Flow |
Min. Reading |
Max. Reading |
m3/h |
m3 |
|||||||
DN50 |
50 |
B |
31.25 |
25 |
0.8 |
0.5 |
0.001 |
999,999 |
DN65 |
65 |
B |
50 |
40 |
1.28 |
0.8 |
0.001 |
999,999 |
DN80 |
80 |
B |
78.75 |
63 |
2.016 |
1.26 |
0.001 |
999,999 |
DN100 |
100 |
B |
125 |
100 |
3.2 |
2.0 |
0.001 |
999,999 |
DN125 |
125 |
B |
200 |
160 |
5.12 |
3.2 |
0.01 |
999,999 |
DN150 |
150 |
B |
312.5 |
250 |
8 |
5 |
0.01 |
999,999 |
DN200 |
200 |
B |
500 |
400 |
12.8 |
8 |
0.01 |
999,999 |
DN250 |
250 |
B |
787.5 |
630 |
20.16 |
12.6 |
0.01 |
999,999 |
DN300 |
300 |
B |
1250 |
1000 |
32 |
20 |
0.01 |
9,999,999 |
DN400 |
400 |
B |
2000 |
1000 |
200 |
30 |
0.02 |
9,999,999 |
DN500 |
500 |
B |
3000 |
1500 |
300 |
45 |
0.02 |
9,999,999 |
DIMENSIONS:
|
Size (DN) |
L Length |
H Height |
Connecting flange |
||||
φD1 Outside diameter |
φD2 Bolt circle diameter |
Connecting Bolts (n-M) |
|||||
mm | |||||||
50 |
200 |
261 |
165 |
125 |
4-M16 |
||
65 |
200 |
271 |
185 |
145 |
4-M16 |
||
80 |
225 |
279 |
200 |
160 |
8-M16 |
||
100 |
250 |
289 |
220 |
180 |
8-M16 |
||
125 |
250 |
299 |
250 |
210 |
8-M16 |
||
150 |
300 |
319 |
285 |
240 |
8-M20 |
||
200 |
350 |
346 |
340 |
295 |
8-M20(1.0MPa) |
||
12-M20(1.6MPa) | |||||||
250 |
400 |
434 |
395 |
350 |
12-M20(1.0MPa) |
||
450 |
434 |
405 |
355 |
12-M24(1.6MPa) |
|||
300 |
450 |
459 |
445 |
400 |
12-M20(1.0MPa) |
||
500 |
459 |
460 |
410 |
12-M24(1.6MPa) |
|||
400 |
600 |
630 |
565 |
515 |
16-M24 |
||
500 |
800 |
738 |
620 |
570 |
20-M24 |
||
MOQ:
We will accept your trial order or sample order.
Logo:
Customers could customize their logo or lable on the water meter.
Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7 days after we come to an agreement.
Delivery time:
Start shipping within 10--20 days after signing the contract.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
List Of Competitive Advantage:
We are factory, can provide you high quality, best price
Professional employee and effective management
Professional trading service
Prompt delivery
Good service & reputation
Large production line
After Service:
We will make compensate for you if the accident made by us.
We have stocks now so if you request for samples, we can send to you at the first time once you confirm.
About us:
We Linyi Gaoxiang Water Meter Co.,Ltd was founded in 2005, and we are a professional manufacturer of intelligent water meters and heat meters, with the capacity of product development, casting, CNC machines, testing and assembling. The company locates in high quality water meter base, the town of Baishabu, Lanshan district, Linyi city, Shandong Province. The factory covers 30 thousand square meter with 300 efficient staff. Our advanced production equipment of more than 70 CNC machine and more than one hundred testing machines for DN15-25, DN32-40, DN50-200 water meter and heat meter. All we have can satisfied with the demand of kinds of types of water meters and heat meters with the daily output of 5000 pieces. Under our constant effort on researching, till now we applied successfully for 16 skill patent on products.
