What is the details for Epoxy Coated Cast Iron Material Turbine WM Water Flow Meter

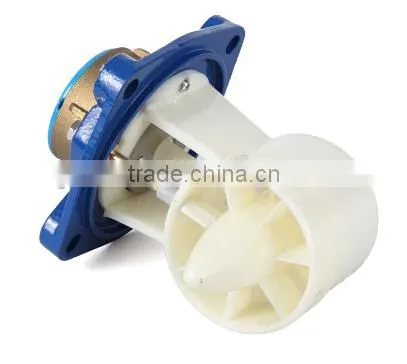

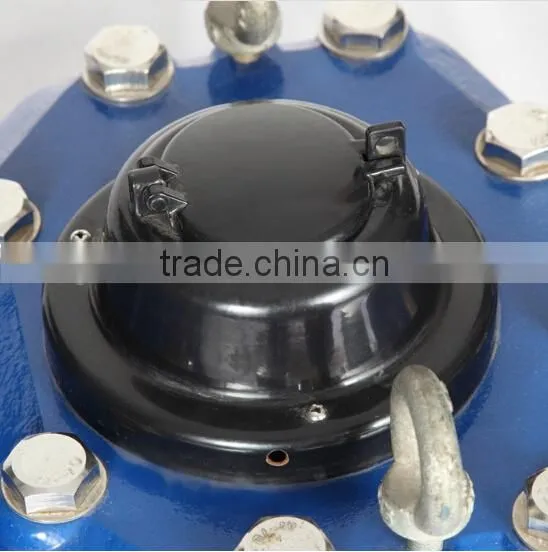

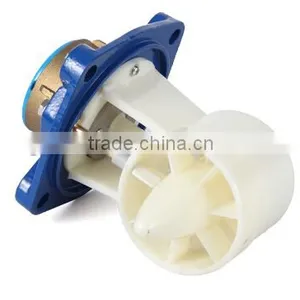

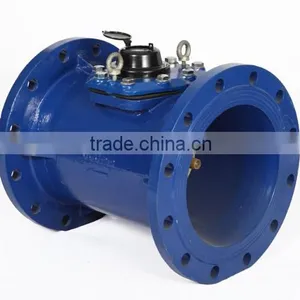

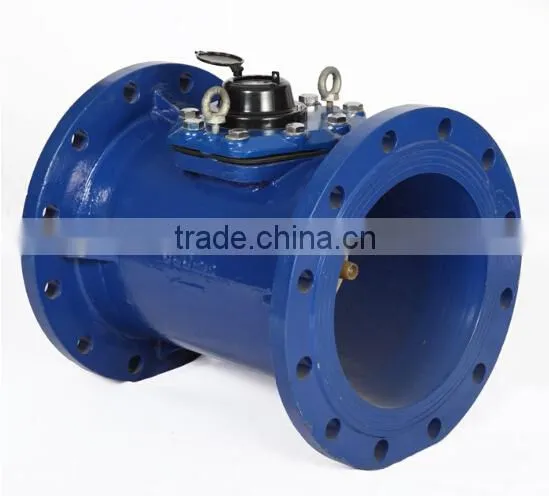

Woltmann water meter, dry dial water meter size: DN50---DN600 Feature: 1. Removable element structure, easy installation and maintenance. 2. Magnetic drive. 3. Large flow capacity, small pressure loss. 4. Resist water hummer and pollution. 5. Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service; 6. Selected high quality materials for steady and reliable characteristic; 7. Technical data conform to international standard ISO 4064. Working condition: Water temperature: 0.1ºC~40ºC (0.1ºC~90ºC for hot water meter) Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors: in the lower zone from qmin inclusive up to but excluding qt is ±5% in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
Main technical specification:
| Type | Size (mm) | Class | qs Overload Flow | qp Permanent Flow | qt Transitional Flow | qmin Min. Flow | Min. Reading | Max. Reading |
| m3/h | m3 | |||||||
| DN50 | 50 | B | 30 | 15 | 3.0 | 0.45 | 0.0002 | 999,999 |
| DN65 | 65 | B | 50 | 25 | 5 | 0.75 | 0.0002 | 999,999 |
| DN80 | 80 | B | 80 | 40 | 8.0 | 1.2 | 0.002 | 999,999 |
| DN100 | 100 | B | 120 | 60 | 12 | 1.8 | 0.002 | 999,999 |
| DN125 | 125 | B | 200 | 100 | 20 | 3 | 0.002 | 999,999 |
| DN150 | 150 | B | 300 | 150 | 30 | 4.5 | 0.002 | 999,999 |
| DN200 | 200 | B | 500 | 250 | 50 | 7.5 | 0.002 | 999,999 |
| DN250 | 250 | B | 800 | 400 | 80 | 12 | 0.002 | 999,999 |
| DN300 | 300 | B | 1200 | 600 | 120 | 18 | 0.02 | 9,999,999 |
| Type | Size(mm) | Class | Qs overload flow | Qp permanent flow | Qt transition flow | Qmin min flow | Mini reading | Max reading |
| m3/h | m3 | |||||||
| LXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.002 | 999,999 |
| B | 3.0 | 0.45 | 0.002 | 999,999 | ||||
| LXLC-80 | 80 | A | 80 | 40 | 12.0 | 3.2 | 0.002 | 999,999 |
| B | 8.0 | 1.2 | 0.002 | 999,999 | ||||
| LXLC-100 | 100 | A | 120 | 60 | 18.0 | 3.8 | 0.002 | 999,999 |
| B | 12.0 | 1.8 | 0.002 | 999,999 | ||||
| LXLC-150 | 150 | A | 300 | 150 | 45.0 | 12.0 | 0.002 | 999,999 |
| B | 30.0 | 4.5 | 0.002 | 999,999 | ||||
| LXLC-200 | 200 | A | 500 | 250 | 75.0 | 20.0 | 0.002 | 999,999 |
| B | 50.0 | 7.5 | 0.002 | 999,999 | ||||
| LXLC-250 | 250 | A | 800 | 400 | 120.0 | 32.0 | 0.002 | 999,999 |
| B | 80.0 | 12.0 | 0.002 | 999,999 | ||||
| LXLC-300 | 300 | A | 1200 | 600 | 180.0 | 48.0 | 0.002 | 999,999 |
| B | 120.0 | 18.0 | 0.02 | 9,999,999 | ||||
