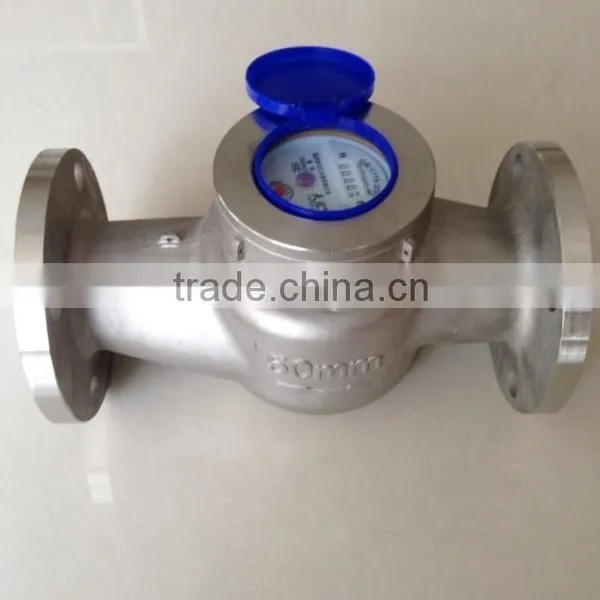

Help CenterDetachable Wet Dial Large Diameter Stainless Steel Water Meter
Related Products
-
High Quality Connection Coupling Fitting for Water Meter In GB StandardUS$ 1.5 - 8.99MOQ: 1000 Pieces -
Intelligent Water Flow Meter With Prepaid Function By RF Smart Card Quality ChoiceUS$ 35.99 - 49.99MOQ: 100 Pieces
-
High Transparent Glass For Water Flow Meter UseUS$ 0.49 - 0.99MOQ: 1000 Pieces
-
Brass Water Connection Coupling Fitting for Water Meter ConnectorsUS$ 1.5 - 8.99MOQ: 1000 Pieces
-
Plastic Security Seal in Blue ColorUS$ 0.11 - 0.12MOQ: 10000 Sets
What is the details for stainless steel water meter
Horizontal Woltmann Detachable Cold Water Meter / industrial water meter DN50-300MM
Woltmann water meter, dry dial water meter size: DN50---DN600 Feature: 1. Removable element structure, easy installation and maintenance. 2. Magnetic drive. 3. Large flow capacity, small pressure loss. 4. Resist water hummer and pollution. 5. Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service; 6. Selected high quality materials for steady and reliable characteristic; 7. Technical data conform to international standard ISO 4064. Working condition: Water temperature: 0.1ºC~40ºC (0.1ºC~90ºC for hot water meter) Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors: in the lower zone from qmin inclusive up to but excluding qt is ±5% in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
Main technical specification:
| Type | Size (mm) | Class | qs Overload Flow | qp Permanent Flow | qt Transitional Flow | qmin Min. Flow | Min. Reading | Max. Reading |
| m3/h | m3 | |||||||
| DN50 | 50 | B | 30 | 15 | 3.0 | 0.45 | 0.0002 | 999,999 |
| DN65 | 65 | B | 50 | 25 | 5 | 0.75 | 0.0002 | 999,999 |
| DN80 | 80 | B | 80 | 40 | 8.0 | 1.2 | 0.002 | 999,999 |
| DN100 | 100 | B | 120 | 60 | 12 | 1.8 | 0.002 | 999,999 |
| DN125 | 125 | B | 200 | 100 | 20 | 3 | 0.002 | 999,999 |
| DN150 | 150 | B | 300 | 150 | 30 | 4.5 | 0.002 | 999,999 |
| DN200 | 200 | B | 500 | 250 | 50 | 7.5 | 0.002 | 999,999 |
| DN250 | 250 | B | 800 | 400 | 80 | 12 | 0.002 | 999,999 |
| DN300 | 300 | B | 1200 | 600 | 120 | 18 | 0.02 | 9,999,999 |
| Type | Size(mm) | Class | Qs overload flow | Qp permanent flow | Qt transition flow | Qmin min flow | Mini reading | Max reading |
| m3/h | m3 | |||||||
| LXLC-50 | 50 | A | 30 | 15 | 4.5 | 1.2 | 0.002 | 999,999 |
| B | 3.0 | 0.45 | 0.002 | 999,999 | ||||
| LXLC-80 | 80 | A | 80 | 40 | 12.0 | 3.2 | 0.002 | 999,999 |
| B | 8.0 | 1.2 | 0.002 | 999,999 | ||||
| LXLC-100 | 100 | A | 120 | 60 | 18.0 | 3.8 | 0.002 | 999,999 |
| B | 12.0 | 1.8 | 0.002 | 999,999 | ||||
| LXLC-150 | 150 | A | 300 | 150 | 45.0 | 12.0 | 0.002 | 999,999 |
| B | 30.0 | 4.5 | 0.002 | 999,999 | ||||
| LXLC-200 | 200 | A | 500 | 250 | 75.0 | 20.0 | 0.002 | 999,999 |
| B | 50.0 | 7.5 | 0.002 | 999,999 | ||||
| LXLC-250 | 250 | A | 800 | 400 | 120.0 | 32.0 | 0.002 | 999,999 |
| B | 80.0 | 12.0 | 0.002 | 999,999 | ||||
| LXLC-300 | 300 | A | 1200 | 600 | 180.0 | 48.0 | 0.002 | 999,999 |
| B | 120.0 | 18.0 | 0.02 | 9,999,999 | ||||
