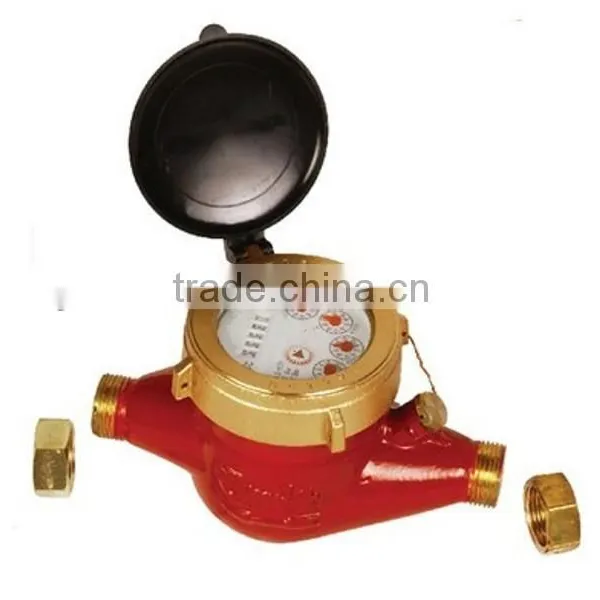

Multi Jet Wet Type Hot Water Meter LXSR-15E-50E

Multi Jet Wet Type Hot Water Meter LXSR-15E-50E thumbnail-1
Multi Jet Wet Type Hot Water Meter LXSR-15E-50E photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Gaoxiang Meter
Model Number:
LXS-MJL-13-40E
Contact Supplier Request Quote Chat Now
Gaoxiang Water Meter Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Gaoxiang Meter
Model Number LXS-MJL-13-40E

Specifications

The core of this meter is made of heat-resistant plastics. It is used for measuring the living water, hot Water, boiler preheati

Specifications

Used for measuring the total volume of hot water flowing through thrunning water pipelin


FEATURES:
The core of this meter is made of heat-resistant plastics. It is used for measuring the living water, hot Water, boiler preheating water and process cooling water.

•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•universal Use. Easy For Interchange&maintenance
•Cold water meter or hot water meter for option

Specifications

Multi jet dry type hot water meter
1,Dry dial, brass body
2,Multi jet, anti-magnetic
3,hot water meter

INDICATING ERROR

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to


MAIN TECHNICAL DATA
Meter size
Dia DN (mm)

Class

Qs Overload Flow

Qp Nominal Flow

Qt Transitional Flow

Qmin Min Flow

Min Reading Lectura

Max Reading Lectura

m3/h

1/h

m3

15

A

3

1.5

150

60

0.0001

99999

B

120

30

20

A

5

2.5

250

100

0.0001

99999

B

200

50

25

A

7

3.5

350

140

0.0001

99999

B

280

70

32

A

12

6.0

600

240

0.0001

99999

B

480

120

40

A

20

10

1000

400

0.001

99999

B

800

200

50

A

30

15

4500

1200

0.001

99999

B

3000

450



DIMENSIONS AND WEIGHT

Meter size
Dia DN (mm)

L
length

B
Width

H
Height


Connecting Thread
D

Weight
kg

mm

15

165

99

104

G3/4"B

1.5

20

190

99

106

G1"B

1.7

25

225

104

120

G11/4"B

2.4

32

230

104

120

G11/2"B

2.7

40

245

125

155

G2"B

4.5

50

300

125

155

G21/2"B

7.2

280

165

175

GB4216.4
D=165
D1=125
Flange connecting conform to
GB4216.4
D=165
D1=125

14
