Electric Drop Bolt Lock With Magnetic Switch Door Sensor

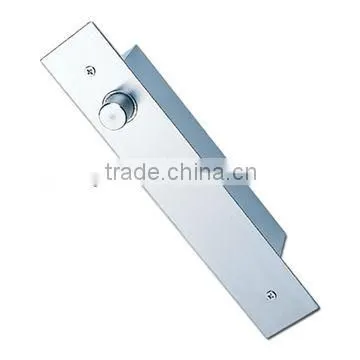

Electric Drop Bolt Lock With Magnetic Switch Door Sensor photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Pegasus, Pongee
Model Number:
DA -62A/D
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name Pegasus, Pongee
Model Number DA -62A/D

Electric drop bolt lock with magnetic switch door sensor

Product Description
  • For access control systems with high traffic doors which are fail-safe operation.
  • Operation: Drop to hold position by magnetic.
  • Release as power off.
  • With magnetic switch for sensoring door position.
  • With door monitoring and adjustable door release monitoring time.
  • With adjustable timer to lock.
  • With electronics control for over heating.
  • Application: As auxiliary lock for emergency door swing glass sheet door

Specifications
  • Lock size (mm): 205x38x44
  • Approx. weight: 750g
  • Nominal voltage: DC12V
  • Voltage tolerance: 10%
  • Standby current: 270mA
  • Working current :930mA
  • Temp. range: -20oC ~ 70oC
  • Power consumption: 3.2W(standby) / 11(work)



 We reserve the right to change the specification without notice or obligation!
