Tubular Key Switch

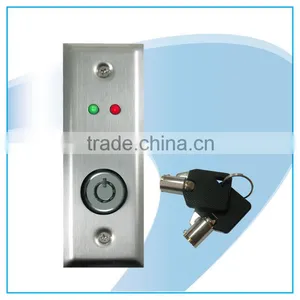

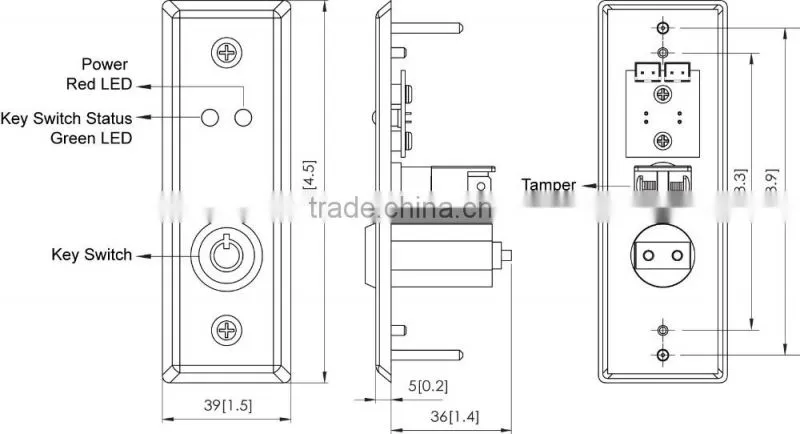

The PG-K212BL is a tubular key switch with LED & tamper switch. Designing with stainless-steel plate and built-in tamper switch which provides trigger of alarm if there’s any attempt to dismantle. The two LEDs supply status indication. Also supplies up to 10,000 different keys for purchasing.
Features
•Normal close circuit.
•Easy installation and wiring.
•Two LEDs provide indication of ON/OFF status.
•Closed-circuit tamper switch.
Specification
Dimensions |
39(W) x 115(L) x 41(H)mm |
Net Weight |
135g ± 5% |
Material |
Face plate: Stainless steel |
Installation diameter |
31mm/ 1.22 inch |
Contact |
Silver plate |
Contact Rating |
4A 125VAC, 2A 250VAC |
Contact Resistance |
10Milli-Ohms Max. |
Insulation Resistance |
500 Meg-Ohms Min.(500VDC) |
Dielectric Strength |
1500VAC-1Minute |
We reserve the right to change the specification without prior notice or obligation!
