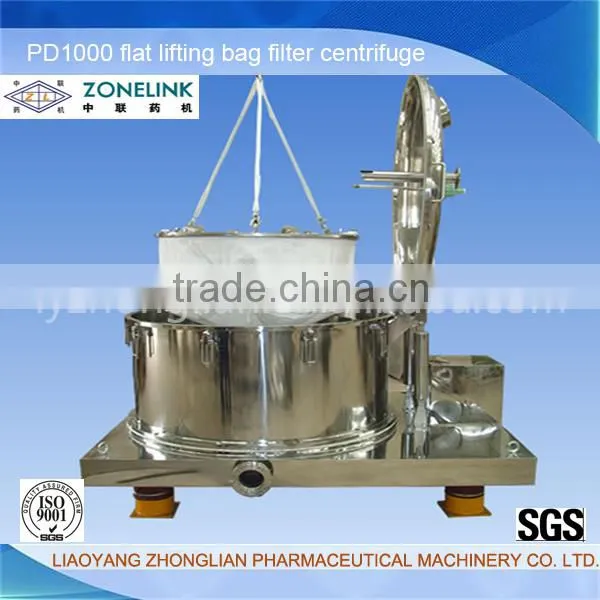

PD1000 Flat Plate lifting bag Basket filtration centrifugal Separator machine
Technical Parameter and Selection Model Form
| Model Item |
SD800 | SD1000 | SD1250 | SD1500 |
| (PD800) | (PD1000) | (PD1250) | (PD1500) | |
| Bowl diameter(mm) | 800 | 1000 | 1250 | 1500 |
| Bowl speed(r/min) | 1500 | 0~1000 | 0~950 | 0~850 |
| Separation factor | 1000 | 600 | 630 | 600 |
| Max.feeding capacity(kg) | 135 | 250 | 530 | 800 |
| Max.volume(L) | 100 | 240 | 400 | 600 |
| Motor power(kw) | 5.5 | 11 | 18.5 | 22 |
| Weight(kg) | 1500 | 2000 | 3200 | 4500 |
| Open cover limit height(mm) | 2300 | 2530 | 2850 | 3400 |
Main Features
Start with frequency converter for stepless speed regulation, with a PLC (programmable logic controller) to start steadily, expan of the scope, with the main control cabinet and field proof auxiliary control panel,it can be operated two places, improve security, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolator types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.
Shell structure for the flip, the shell and bowl’s sandwich can be thorough cleaning l. Structural design is reasonable, more comprehensive cleaning and sterilization. Particularly difficult to adapt materials for the staff contact, high cleanliness, strict washing demanding, high grade solid-liquid separation in explosion-proof. Lifting bag discharge, can be discharged remotely, improve efficiency, reduce labor intensity, environmental conditions fully comply with GMP standards.
Main Purpose
Applies to both solid phase for the granular filtering, it can be used for dewatering of fibrous material, particularly filtation of high viscosity, fine particle size, toxic and hazardous, flammable materials.s For example, gypsum, thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball acid plaster, water treatment.
Structure and Principle

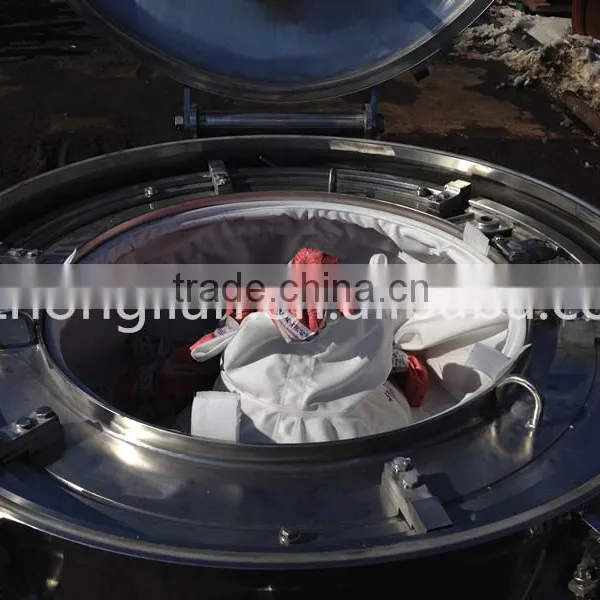

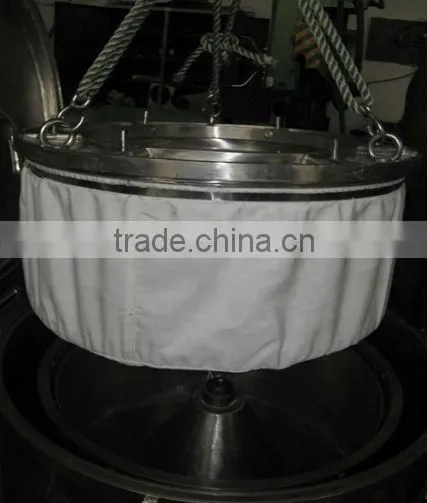

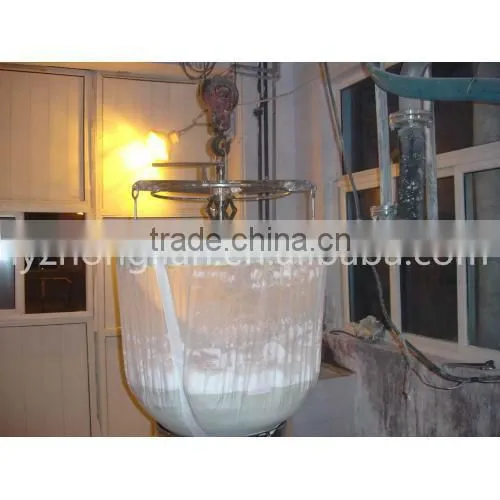

The bowl is driven by a main motor which is controlled by a variable frequency regulator with stable start through V-belt, and rotates around its own axis at a high speed and forms centrifugal force field .The stock flows into the bowl lined a filtering bag from the upper feeding pipe and is forced to be distributed on the bowl by the centrifugal force.after centrifuged and filterd.The liquid passes through crevice of filtering bag and then out of the hollow of housing.And is discharged floe liquid outlet. The solid phase in the filtering bag.Open the machine cover and lift the bag out of the machine put it at the place to discharge.It is equipped with a flushing pipe for flushing it.

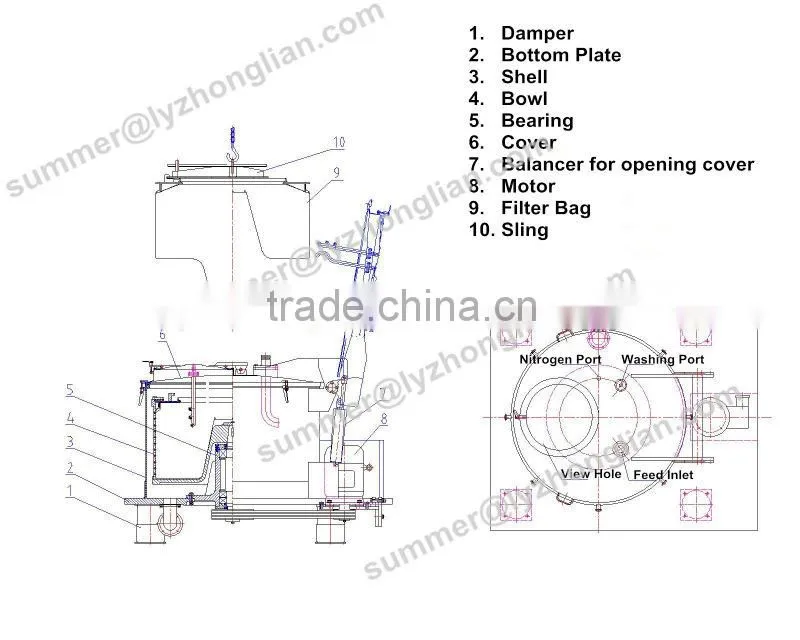

Structure Drawing

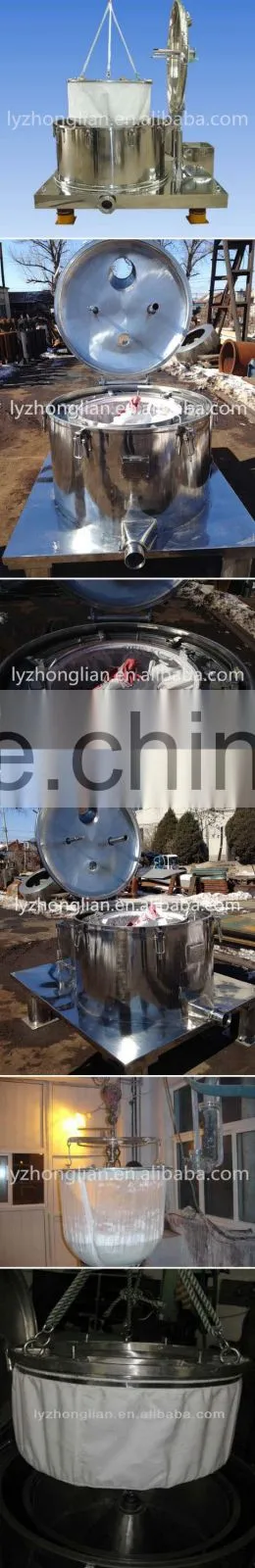

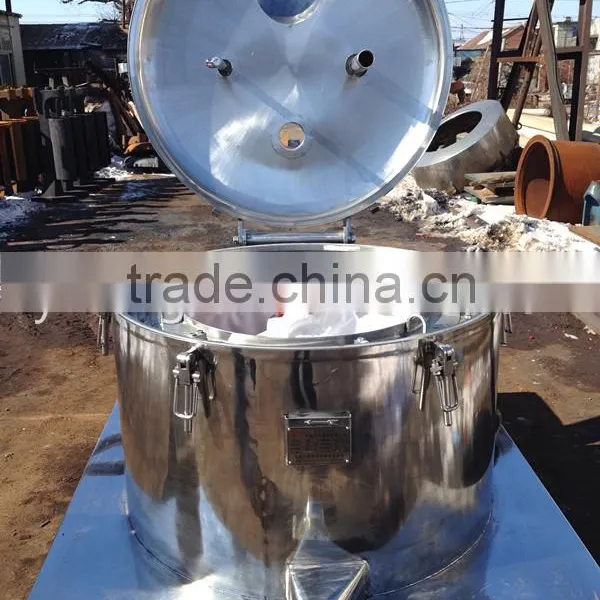

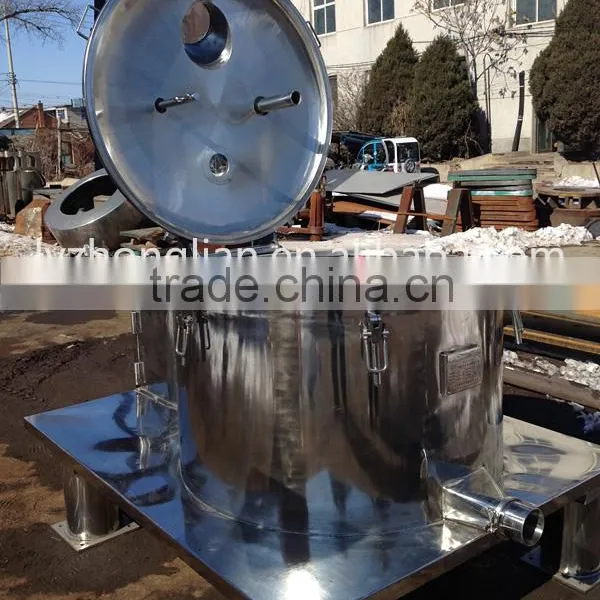

Pictures
PD1000 Lifting Bag Filter Centrifuge Packaging: Wooden Package
PD1000 Lifting Bag Filter Centrifuge Shipping: By Sea, By Air and By Train
The Service of PD1000 Lifting Bag Filter Centrifuge:
Technical suppport and Training support
Engineers available to service
Liaoyang Zhonglian Pharmaceutical Machinery Co., Ltd is situated in Liaoyang City of Liaoning Province, earliest engaged in the production of centrifugal machinery in China. Zhonglian is specially engaged in
the production of centrifugal equipment and pharmaceutical machinery, owns many years of experience in professional production, enjoys advanced technology and high quality equipment, developed and manufactured multiple hi-tech centrifugal equipment including disc centrifuge, tubular centrifuge, tripod series centrifuge and
flat plate centrifuge, which are widely applied in pharmaceutical, chemical, food, smelting and other industries. Our company is supported and well received by a wide range of users with reliable quality and excellent after-sales service. Our company mapped and improved originally imported TA60 disc separator to perfect the complicated structure of disc separator and better each index to be greatly approved of by users.
Certification
