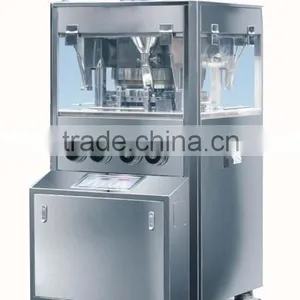

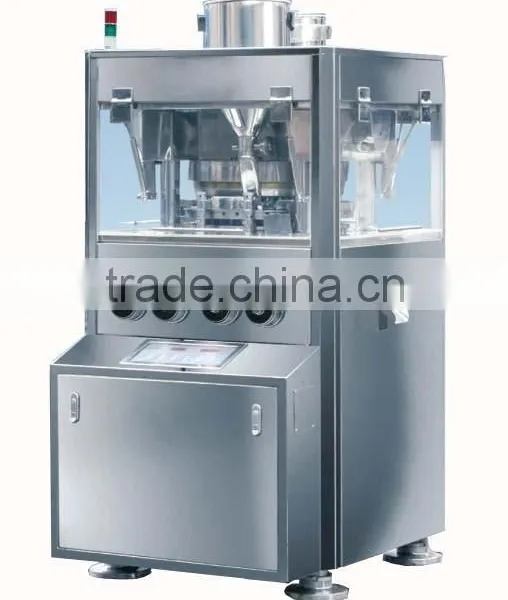

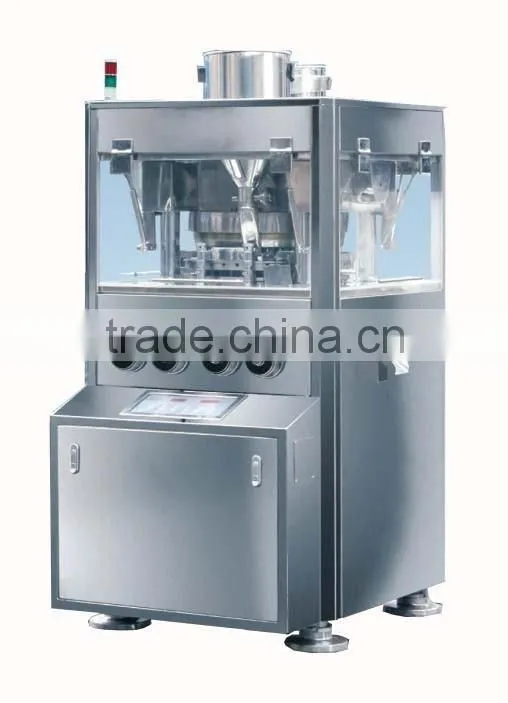

ZP-35D Series Rotary Tablet Press
Application:
This press is a double pressing tablet press,being broadly used in the industries of pharmacy,food process and chemicals, to make granular materials, to various round tablets or special-shaped tablets.
Features:
1.Upon the GMP Requirements, the peripheral casing the press-chamber inside are of stainless steel.
2.The advanced frequency-conversion speed regulation adjusts the motor,adjustable rpm,easy in operation,safe and accurate.
3.The central lubricating system supplies enough lubrication to the lubricated points and it is of very high reliability.
Technical parameters:
Dies(Pairs) |
35 |
Press force max.(KN) |
80 |
Pressed diameter max.(mm) |
13(16) |
Filled depth max.(mm) |
15 |
Tablet thickness max.(mm) |
6 |
Turntable rpm(r/min) |
5~32 |
Production max.( tablets/h) |
80,000~120,000 |
Motor power(Kw) |
4 |
Weight(KG) |
1400 |
Dimensions(L×W×H)mm |
1040×910×1800 |
