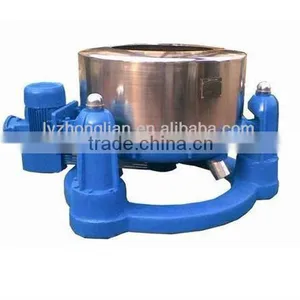

SS800N Tripod top discharge basket centrifuge
Structure and principle:
SS800N Tripod top discharge basket centrifuge ,the motor actuates the clutch to transmit power to bowl via triangular adhesive tape, so that the bowl can rotate at high speed around its own axis, to form a centrifugal force filed. The material enters the centrifugal field inside the bowl through feed pipe on top, and the centrifugal force forces the material to be uniformly distributed on the wall of bowl for deliquidation and separation. The liquid phase is thrown into the space of machine cabinet through solid-phase material and gaps of gauze via wall pores of the bowl, and solid-phase materials are discharged from the liquid outlet of the underpan with machine and retained inside the bowl, to be discharged manually on top.
Product features:
SS800N Tripod top discharge basket centrifuge ,simple in structure and easy in operation and maintenance. It is wide use in application. It is suitable for filtering particle suspension and for dehydration of fabric material and textile after printing and dyeing. And the material contact parts are made of stainless steel base and other parts of its body made of cast iron paint.
Main purposes:
Chemical Industry: Gypsum, thiamin, Glauber's salt, ferric sulfate, boric acid, borax, rubber additive, dye, and other chemical products.
2. Food industry: Kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar
3. Pharmaceutical: Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs
4. Mine and Metallurgy: Copper, zinc, minerals, and metal refining
5. Environmental Protection: With acid discharge, pure water sludge and sewage sludge, etc.
Technical Parameter:
Wooden package
Engineers available to service machinery overseas
