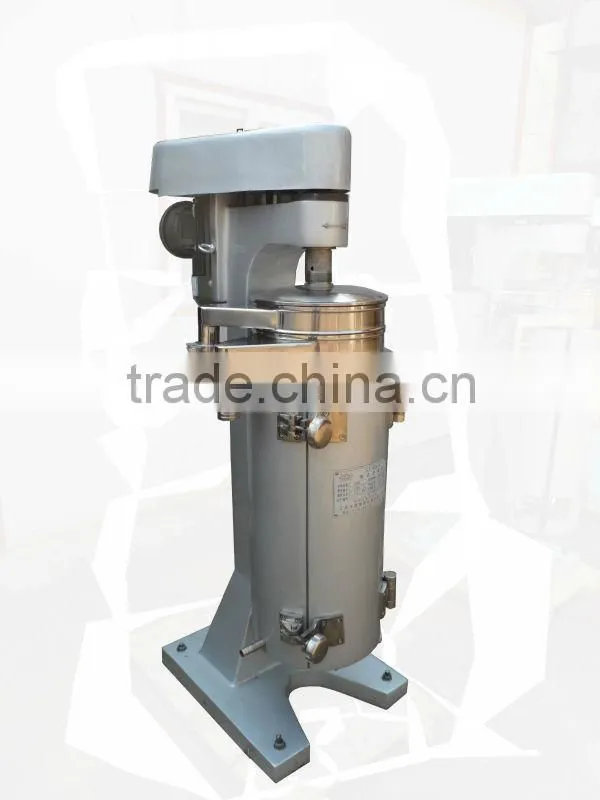

Help CenterPlam Oil Separator Tubular Centrifuge GF105A
Related Products
-
GQY125A Swing Type Tubular Centrifuge MachineUS$ 12,000 - 15,000MOQ: 1 Unit -
GF-105 Biodiesel Centrifuge SeparatorUS$ 5,500 - 8,000MOQ: 1 Unit
-
GF-105 Centrifugal All Kinds of Oil SeparatorUS$ 5,500 - 8,000MOQ: 1 Unit
-
GQ-105 Two Phase SeparatorUS$ 5,500 - 8,000MOQ: 1 Unit
-
Plasma Separator Tubular Centrifuge Machine GF105JUS$ 6,000 - 9,000MOQ: 1 Unit
Structure and principle:
It is high speed separator. It has better separation .the separator is consisted of main body ,driving device,bowl collecting pan and liquid-in bearing seats.the upper of the bowl is flexible mainshaft and the lower of it is damp floating .the mainshaft is connected with a driven wheel by the coupling seat with the buffer.the power is transmitted to the driven wheel by the motor through the transmisson belt and the tensioner to make the bowl rotate around its pwn axis at an overspeed and form a strong centrifugal force field . the product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl andthen is separated into different layers according to different density.
GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
Applications:
Principle diagram:
Structure chart:
Technical parameter:
Finished product:
Wooden package
Overseas service center available
