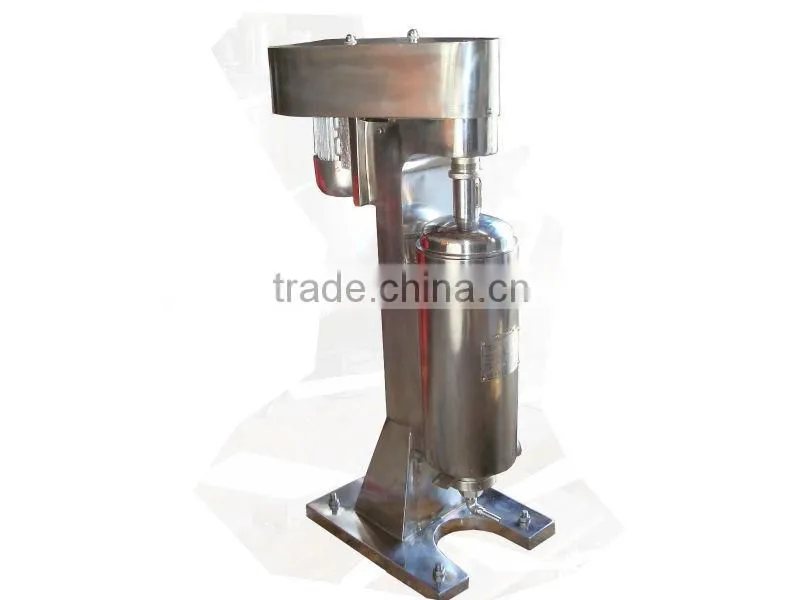

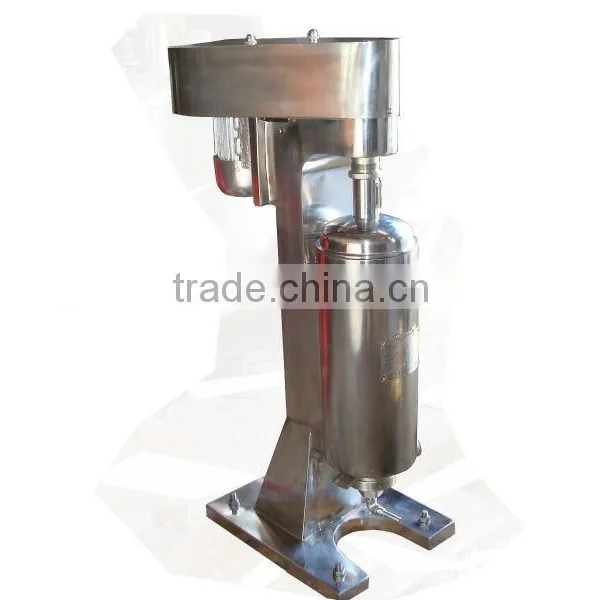

Help CenterGQ75J High Speed Small Size Pectin Separating Centrifuge
Related Products
-
GF-75 Tubular Centrifuge MachineUS$ 5,500 - 8,000MOQ: 1 Unit -
DRY530 Vegetable Oil Refining Disc Stack CentrifugeUS$ 20,000 - 50,000MOQ: 1 Unit
-
DRY Series Disc Continous Centrifuge Separator MachineUS$ 20,000 - 50,000MOQ: 1 Unit
-
DRY530 Vegetable Oil Refining Disc Stack Separator CentrifugeUS$ 20,000 - 50,000MOQ: 1 Unit
-
DRY500 Plant Oil Recycling Separator Disc Stack CentrifugeUS$ 20,000 - 40,000MOQ: 1 Unit
Specification features:
1.Laboratory centrifuge apparatus
2.Use in laboratory
3.Suspension
4.High-speed
Structure and principle:
It is high speed separator. It has better separation .The separator is consisted of main body ,driving device,bowl collecting pan and liquidin bearing seats.The upper of the bowl is flexible mainshaft and the lower of it is damp floating .The mainshaft is connected with a driven wheel by the coupling seat with the buffer.The power is transmitted to the driven wheel by the motor through the transmisson belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field . The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
GQ:granular souds with high density settle down on the inner wall of the bowl gradually to form residue layer and then are discharged manually after the machine stops.the liquid clarified flows out of the liquid outlet at the bow’s upper.
Applications:
GQ Type is used for separating various suspension liquid, which is difficult to be separated, especially the separation liquid suspension, which is low concentration, high viscidity, fine solid phase granule, and very small difference in solid-liquid gravity, such as clarification of various medicine liquid and oral liquid. Extract of paint, dye, as well as various protein, algae, pectin, and purification of rubber solution, etc.
Products structure chart:
Working principle:
Foundations chart:
Technical Parameter:
Wooden package
Overseas service center available
