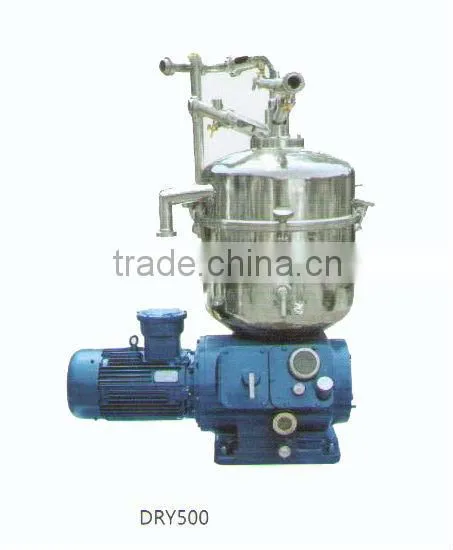

Help CenterDisc Milk Centrifuge DRY 500
Related Products
-
High Speed Tubular Series Laboratory Centrifuge GF(Q)-45US$ 4,000 - 5,000MOQ: 1 Unit -
Algae Tubular Laboratory Centrifuge GF(Q)-45US$ 4,000 - 5,000MOQ: 1 Unit
-
High Speed Tubular Industrial Centrifuge Separator GF-45US$ 4,000 - 5,000MOQ: 1 Unit
-
High Speed Tubular Laboratory Centrifuge Separator GF(Q)-45US$ 4,000 - 5,000MOQ: 1 Unit
-
High Speed Tubular PRP Centrifuge Separator GF(Q)-45US$ 4,000 - 5,000MOQ: 1 Unit
milk centrifuge
working principle
It can realize liquid-liquid-solid separation, It can be operated manually. It has better separation. It is used for separation of broth and emulsion and separation of suspension which its solid content is 1-5%.
It can realize liquid-liquid-solid separation, It can be operated manually. It has better separation. Separating factor at between 5000-9300, high production capacity. Rechable to 10 cubic meters/hour in maximum. Mechinery 's capability is stable. Easy operation and maintenance, especially for the separation of light and heavy liquid separation which is not stable materials, can be adjusted online. You can replace sub-liquid ring when it is working, extends the traditional oil-water separator on the applicability of the material.
Main purpose
It is used for separation of broth and emulsion and separation of suspension which its solid content is 1-5%. For example, the rebirth of oil and lube, purification of plant oil, chemical, the separation of nitroglycerin, benzoik asid( ammonia manufacturing) and emulsion, pharmaceutical, penicillin. Extraction of bacilli and alkaloid, separation of food and milk products, separation of beverage and flavoring.
Structure and principle
The bowl driven by the motor through the fricition clutch spiral gear pair rotates around the mainshaft at a high speed. The disk rack in the bowl filled with disk increase the settling area of equivalent. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disk seats and their holes in it. Solid material settled onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces discs to the mainshaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out of the heavy liquid outlet.

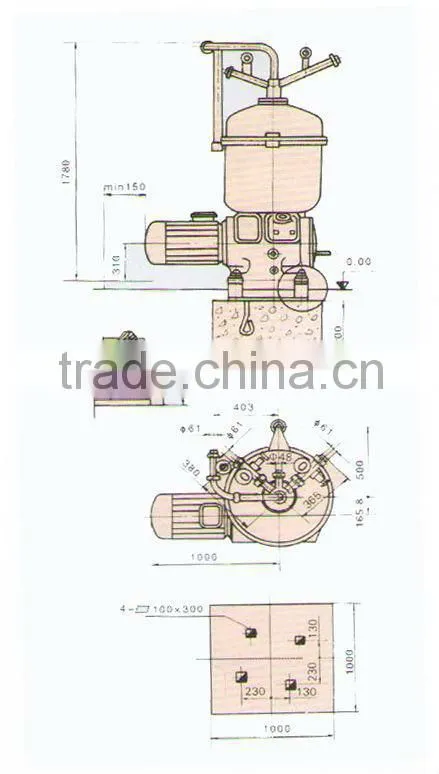

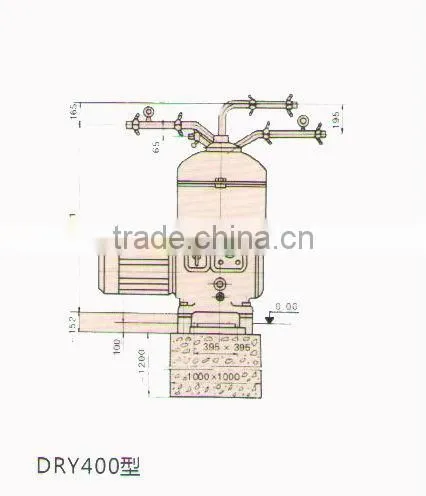

Products structure chart
Technical Parameter
Model |
DRY400 |
DRY500 |
DRY530 |
|
Bowl |
Diameter (mm) |
420 |
530 |
530 |
Speed (r/min) |
6525 |
4170 |
4150 |
|
|
Separator Factor |
10000 |
5100 |
5000 |
|
Throughput (m³/h) |
5 |
10 |
10 |
|
Motor Power(kw) |
11 |
15 |
15 |
|
|
Size(mm) L x W x H |
1500*900*1500 |
1200*1100*1780 |
1200*1100*1680 |
|
|
Weight (kg) |
1100 |
|||
Delivery time |
90 day |
|||
Minimum Order |
1 set |
|||
Packing |
Wooden case |
|||
Payment terms |
T/T , 50% in advance, 50% before shipment. |
|||
Warranty |
One year |
|||
