Mechanism Diaphragm Meter Pump With PVC Over Current Part and PTFE Diaphragm

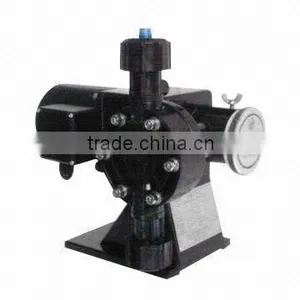

Mechanism Diaphragm Meter Pump With PVC Over Current Part and PTFE Diaphragm thumbnail-1
Mechanism Diaphragm Meter Pump With PVC Over Current Part and PTFE Diaphragm photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Xian Xijin Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China

Specifications

Mechanism diaphragm meter pump
Type: JWM-A32/1
Flow: 32L/hr
Pressure: 1MPa

Motor: 380V/50hz

Power: 60W

Over current part material: PVC

Diaphragm material: PTFE

Link size: D15 and D9





Mechanism Diaphragm Meter Pump with 32L/h Flow

  • Flow: 32L/h
  • Pressure: 1mPa
  • Motor: 380V/50Hz 60W
  • Over-current part material: PVC
  • Diaphragm material: PTFE
  • Link size: D15, D9



Mechanism Diaphragm Meter Pump with PVC Over Current Part and PTFE Diaphragm

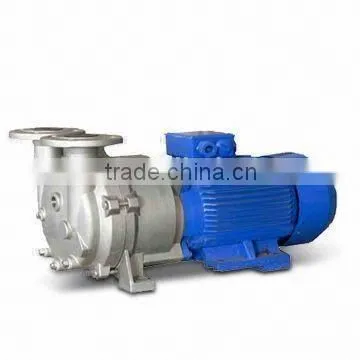

Closed Coupled Liquid Ring Vacuum Pump with Motor Voltage of 380V

  • Operating conditions:
    • Fluid: air
    • Type: liquid ring closed coupled
    • Operating temperature: 5 to 50°C
    • Operation continues
    • Operating data
    • Capacity: 100 to 150m3/hr
    • Suction pressure: 50mbar
    • Discharge pressure: 1,013mbar
  • Motor data:
    • Phase: 3
    • Voltage: 380V
    • Frequency: 50Hz
  • Materials:
    • Body: SS316
    • Casing: SS316
    • Impeller: SS316
    • Pump shaft: SS316
    • Rotor can: SS316
    • Slide bearing: SS316
  • Gasket PTFE
  • Environment corrosive
  • End connections:
    • RF flanged with counter flanges
    • Discharge size: 25mm

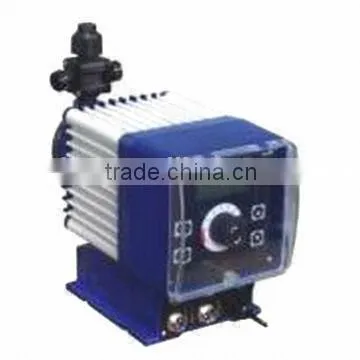

Mechanism Diaphragm Meter Pump with PVC Over Current Part and PTFE Diaphragm
