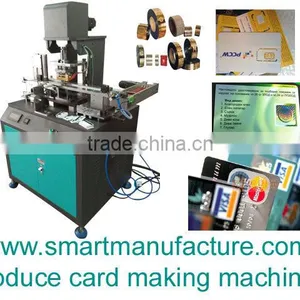

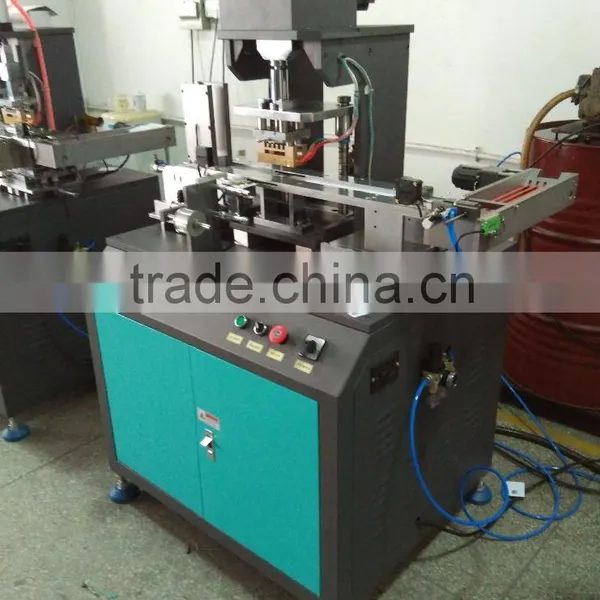

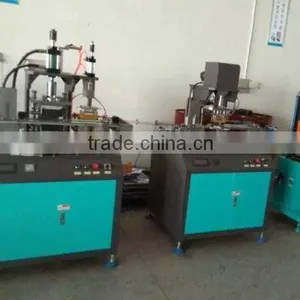

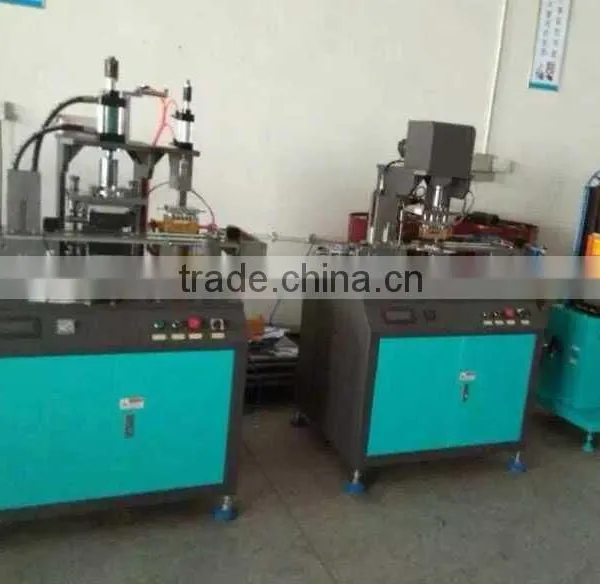

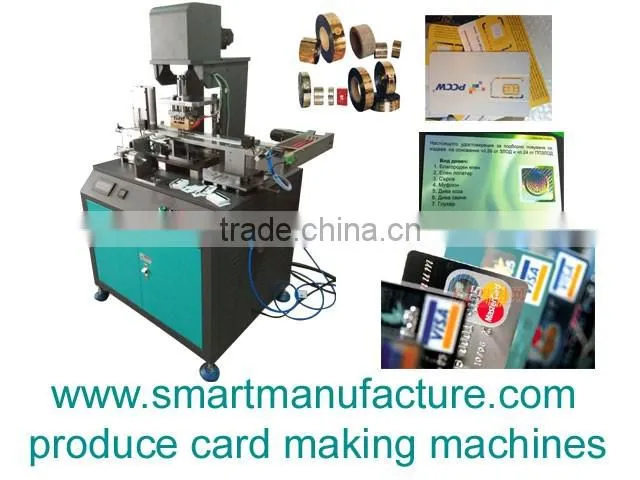

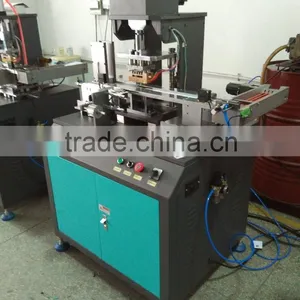

SMHSM-1 Automatic Hot Stamping Machine
US$ 10,000 - 26,667
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Plate Type
Letterpress
Place of Origin
Zhejiang, China
Brand Name
SmartManufacture
Model Number
SMHSM-1
Usage
Card Printer, Label Printer
Automatic Grade
Automatic
Voltage
110V/220V/380V415V
Gross Power
2KW
Dimensions(L*W*H)
1270mm*560mm*1420mm
Weight
600KGS
Certification
CE Certificate
After-sales Service Provided
Engineers available to service machinery overseas
SMHSM-1 Full Automatic Signature Stamping Machine is mainly used for hot stamping the anti-fake Holographic panel or signature panel on smart card surface. It can also be used for ordinary bronzing and scratch-off film hot stamping. SMHSM-1 Hologram Stamping Machine adopts PLC control with touch screen operation and hydraulic drive. Cards are well protected without scratching occurring during card conveying.
| Suitable Material | PVC, ABS, PET, PEGT, Paper, Teslin or other plastic materials |
| Material Thickness | 0.1mm-0.9mm |
| Card Size | 85.6mm*54mm |
| Pressure | maximum 1500KGS adjustable |
| Air Supply | 0.6MPa |
| Heating Temperature | less than 400 centigrade |
| Working Efficiency | 4800pcs card per hour |
| Control Method | PLC, Touch screen |
| Voltage Input | 380V 50/60Hz |
| Power | 2KW |
| Precision of card position | +/- 0.15mm |
| Precision of foil position | +/- 0.15mm |
| Packing Size | 1270mm*560mm*1420mm |
| Net/Gross Weight | 600KGS/650KGS |
