Truck Mounted Platform

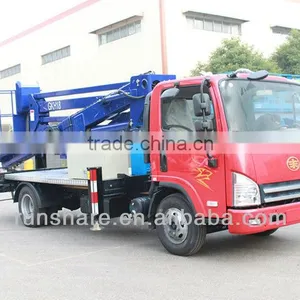

Truck Mounted Platform thumbnail-1
Truck Mounted Platform photo-1
US$ 10,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
RUNSHARE
Model Number:
GKS14,GKH18,GKH20,GKH22
Contact Supplier Request Quote Chat Now
Hunan Runshare Heavy Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINESE MAIN PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name RUNSHARE
Model Number GKS14,GKH18,GKH20,GKH22

Specifications

14m,18m,20m and 22m truck mounted platform

Model

GKH 14

GKH 18

GKH 20

GKH 22

Working height maximum

m

15.5

20.1

21.5

23.3

Platform height maximum

m

13.8

18.4

19.8

21.8

Horizontal reach maximum

m

8

8.4

10

12

Lift  capacity

kg

230

230

230

230

The width with truck

m

2.1

2.1

2.1

2.1

The length with truck

m

6.3

7.8

8.5

7.8

The Height with truck

m

2.5

2.5

2.5

2.5

Wheelbase



3

3.9

3.9

3.9

Outrigger type



incline

H

H

H

Outrigger Span(lengthwise×widthwise)

m

2.64m

3.6×3.1m

3.6×3.1m

3.6×3.1m

Turntable Swing



360°continuous

360°continuous

360°continuous

360°continuous

Turntable Swing speed



0~1rpm

0~1.3 rpm

0~1 rpm

0~1 rpm

Platform dimension(length×width×Height)

m

1.4m×0.7m×1.1m

1.4m×0.7m×1.1m

1.4m×0.7m×1.1m

1.4m×0.7m×1.1m

Platform levelling



Automatic leveling

Automatic leveling

Automatic leveling

Automatic leveling

Max hydraulic pressure



21 MPa

21 MPa

23 MPa

25 MPa

Voltage

V/V

12V/24V

12V/24V

12V/24V

12V/24V

Approach angle

°

24°

24°

24°

24°

Departure angle

°

16°

16°

16°

16°

Ground clearance-center

m

0.3

0.3

0.3

0.3

Hydraulic tank capacity

L

100 L

100 L

100 L

100 L

Weight

kg

5800

6500

6900

7180
