Rolling PVD Coating MachineHand Jewelry Supplies Plating Arab Countries
US$ 50,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Metal film layer
Technique:
Other, Vacuum coating
Style:
Other, The surface bright beautiful
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Motorcycle Parts Evaporation Coating MachineUS$ 28,000 - 48,000MOQ: 1 Set -
Ceramic Gold Metallizing Coating MachineUS$ 45,000 - 68,000MOQ: 1 Set
-
Mobile Phone Shell Vacuum Coating MachineUS$ 19,000 - 49,000MOQ: 1 Set
-
IPG Clocks and Watches Vacuum Coating Machine Quality ChoiceUS$ 28,000 - 58,000MOQ: 1 Set
-
Stainless Steel Vacuum Metalizing MachineUS$ 39,000 - 59,000MOQ: 1 Set
Material
Metal film layer
Technique
Other, Vacuum coating
Style
Other, The surface bright beautiful
Use
Other, Deposited metal film layer
Theme
Other, Surface treatment
Regional Feature
Other, Coating processing
Place of Origin
Zhejiang, China
Brand Name
junying
Model Number
JYDW-1012

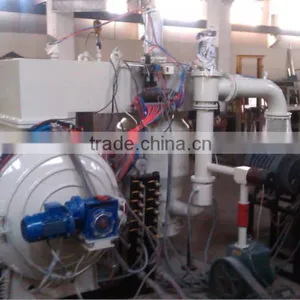

Rolling PVD Coating Machine
Introduction: High Vacuum Rolling Coater is specially designed equipment for coating aluminum films or oxidant compound films or other metallic films on rolls of any polyester membranes. It is extensively used for the production of metallic packing materials for food industry, decorative or packing material, electrochemical aluminum material, various labels, sticks and trade-marks as well as all kind of reflective material, heat preservation or heat insulation materials and electric material. Using this equipment, the metal film can be coated by evaporation, DC or MF magnetron sputtering on the surface of plastic, cloth and metal sheet, etc. It can be equipped with both evaporation and sputtering functions with efficient vacuum pumps group coupled with.
Main Features:
1. Roll system uses high-precision tributaries or AC frequency converter is operating steadily, high-speed, no scratches, no crease on the original sheet;
2. Tension control using import statistics tension control system with the characteristics of tension constant and line speed constant;
3. Each group sending wire system controlled by independent computer motor ,can adjust speed separately or overall, and speed display;
4. Sophisticated vacuum system configuration, exhaust fast , using PLC control;
5. Equipped with high-power power supply, coating high efficiency and good uniformity of the film
Main Configuration:
This equipment mainly by the vacuum system, the vacuum chamber, the parent metal winding system, the aluminum evaporation system, the electricity controls parts and so on cabinet, evaporation control desk to be composed.
1. Vacuum chamber for horizontal-type circle tubular, 304 stainless steel manufactures, vacuum chamber size φ1000~1400mm;
2. The vacuum system with 1 to 2 diffusion pump, Roots pump, mechanical pump, uses electro-pneumatic valve;
3. The Rolling system uses 6 to 10 groups of rollarounds, the wind-up roll, puts the winding up roller, the water cooling roller respectively by a direct motor drive;
4. The coating system may choose according to the product steams the transmission silk coating system or magnetism controls the sputtering coating system. Delivers the silk organization to include the crucible, the electrode, the water cooling, to deliver the silk machine, the power source and so on. Magnetism controls the sputtering to be possible to match 1-4 plane targets and the sputtering power source;
5. Vacuum auxiliary pumping air is a uniform allocation fast circulation low temperature water vapor trap.
Technical Parameters:
1. Ultimate vacuum: 7×10-3Pa;
2. Secondary recovery time: <10min changing from 1×105 Pa and 6.7×10-1 Pa;
3. Coating speed: 120~200m/min;
4. Total power: 4.5×4.5×2.6 .
Jewelry coating samples;
