Specifications
Metal mesh filter1. Low resistance ;large dust holding capacity
2. Protect mesh : aluminum or stainless steel mesh

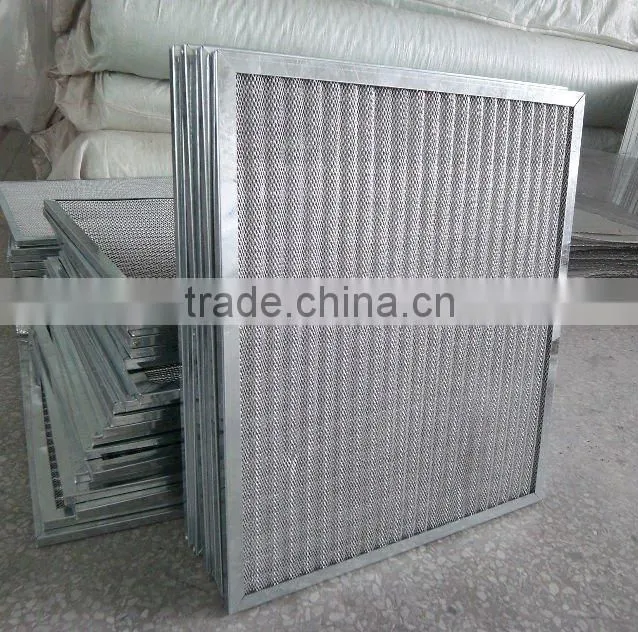

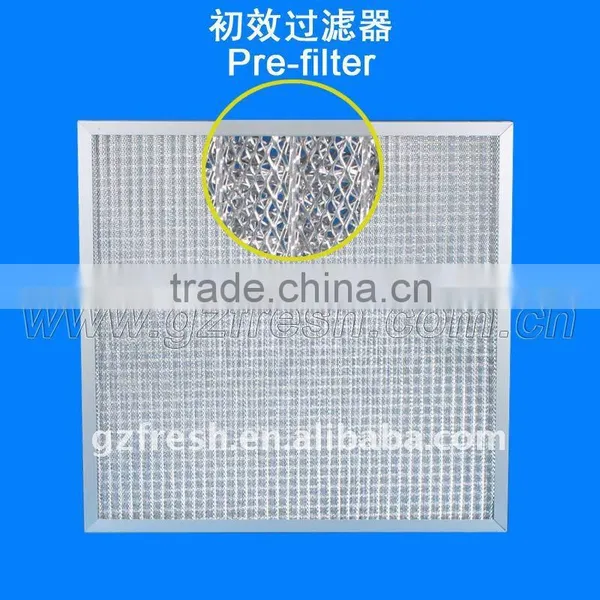

Supply High quality Metal mesh pre-filter,air intake pre filter,washable metal air filter for air conditioner with with ISO9001 accredited
Features:
·High acid and alkali resistance
·Washable
·Low Initial resistance
·Firm structure
Application:
High temperature resistance, filter dust,used in the high temperature environment,
pre-filter through airfilter system
Type: plank metal mesh pre-filter
Frame: Galvanized iron, stainless steel or aluminum alloy frame
Media: Multi-level structure, can increase the filtering area
Protect mesh : aluminum or stainless steel mesh
DIN53438 Non-flammability Standard: F1
Final resistance: (suggest)100Pa-200Pa
Max. air flow: 125% of the rated air flow
Temp. resistance: 300°C
Special sizes available upon request
Type |
Dimension |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
Height(mm) |
Width(mm) |
Thickness(mm) |
|||
FRS-JS-1 |
595 |
595 |
21 |
4000 |
≤25 |
FRS-JS-2 |
595 |
290 |
21 |
2000 |
|
FRS-JS-3 |
595 |
595 |
25 |
3800 |
≤30 |
FRS-JS-4 |
595 |
290 |
25 |
1900 |
|
FRS-JS-5 |
595 |
595 |
46 |
3600 |
≤35 |
FRS-JS-6 |
595 |
290 |
46 |
1800 |
|
