Specifications
mini-pleatLow resistance
Light weight
Thin thickness easy to install
Each filter has scanning test

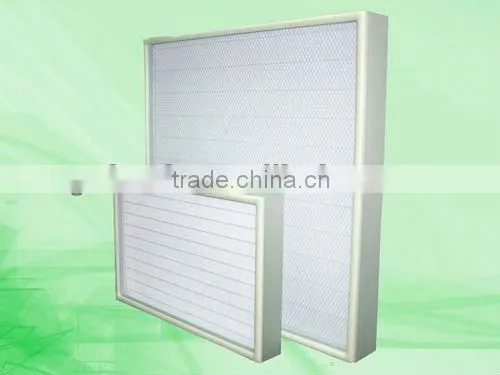

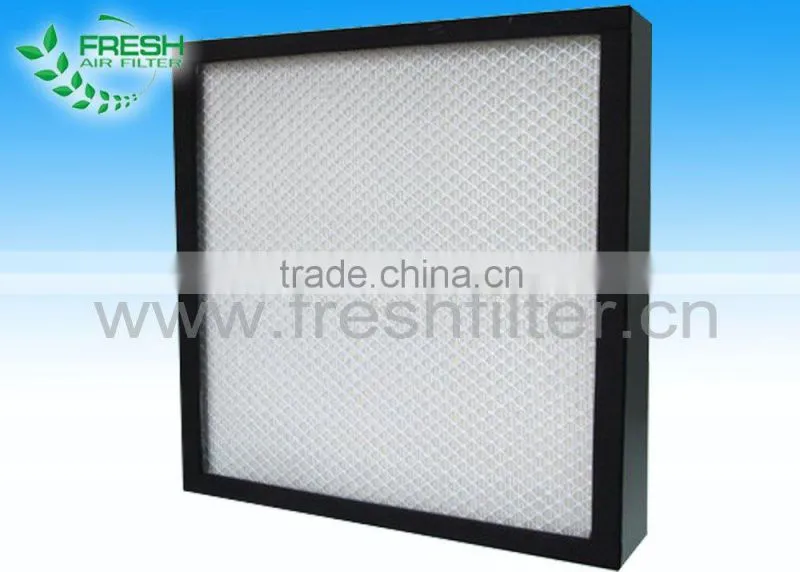

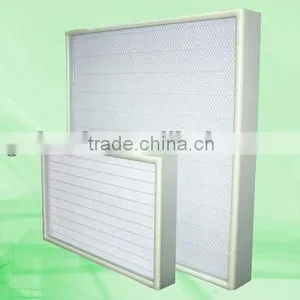

Supply high quanlity FRS-UW mini-pleat ultra low penetration air filter for clean room
Advantage:
·High efficiency(capturing 0.12 or above 0.12μm particles)
·Low resistance
·Light weight
·Thin thickness
·Easy to install
·Each filter has scanning test
Application:
be widely used in the place where the clean air is strictly required.
Type: high efficiency foldaway filter
Frame: aluminum frame
Separation material: hot melt adhesive
Media: good quality imported fiber glass paper(0.12μm )
Final resistance: (suggest)400PA-600PA
Max. air flow: 125% of the rated air flow
Temp. resistance: 80°C
Humidity:≤80%
Specification:
Dimensions(mm) |
Rated air flow(m^3/h) |
Initial pressure (Pa) |
Filter efficiency % |
Material |
|||
Width*Height*Depth |
Frame |
Filters meterial |
Partition material |
Sealant |
|||
610*610*50 |
470 |
≤220 |
>99.9995% |
|
Fiberglass filter paper |
Hot melt rubber |
Polyurethane rubber |
915*610*50 |
700 |
||||||
610*610*69 |
600 |
||||||
915*610*69 |
900 |
||||||
610*610*90 |
800 |
||||||
915*610*90 |
1200 |
||||||
1220*610*100 |
1600 |
||||||
