Specifications
high temperature resistance filter1,Thin structure
2,High dust holding capacity
3,High temperature resistance

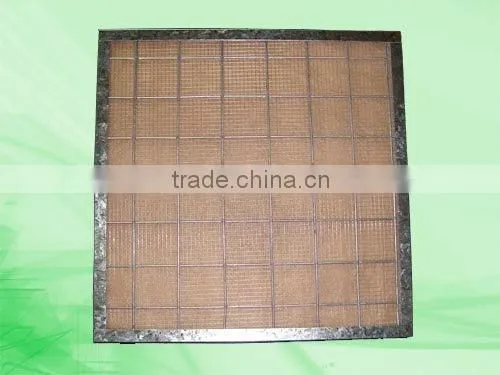

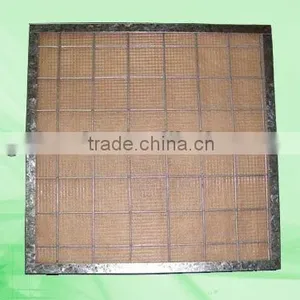

FRS-GB Plank temperature resistance filter/high temperature resistance filter
pplication: Avoid tar, coom and dust from high-temperature dryer
Type: Plank temperature resistance filter
Frame: aluminum alloy, stainless steel or galvanized iron frame
Media: special Synthetic fiber, fiberglass
Protect mesh: aluminum or stainless steel mesh
EN779 class: G3,G4,G5
Average arrestance: 88%,99%,93 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3,EU4,EU5
Final resistance: (suggested)250Pa-300Pa
Max. air flow: 125% of the rated air flow
Temp. Resistance:300°C
Humidity: 80%
Type |
Dimension |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
Height(mm) |
Width(mm) |
Thickness(mm) |
|||
FRS-GW-1 |
592 |
592 |
10 |
1800 |
40 |
FRS-GW-2 |
592 |
292 |
10 |
850 |
|
FRS-GW-3 |
592 |
592 |
20 |
1800 |
60 |
FRS-GW-4 |
592 |
292 |
20 |
850 |
|
Special sizes available upon request.
