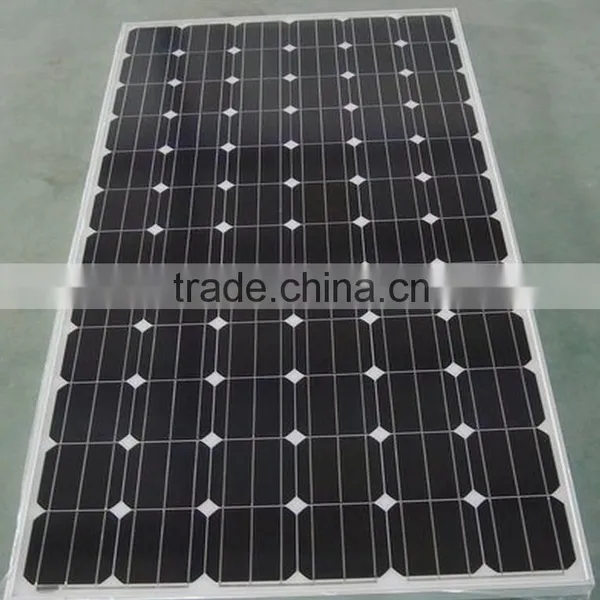

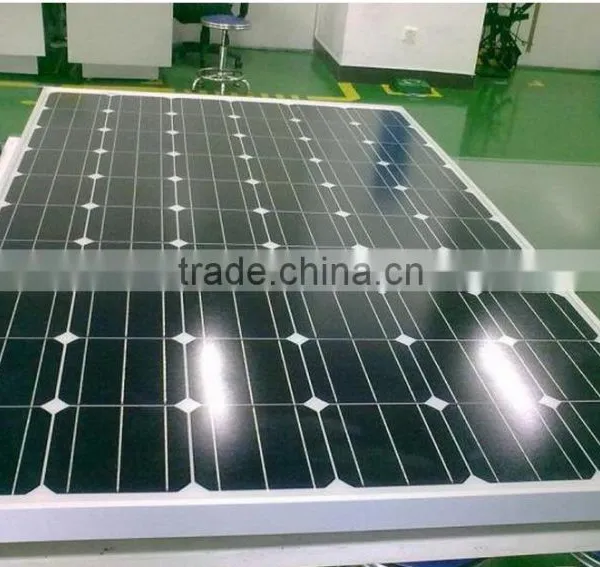

Help Center300W Mono Solar Module for Power Station PV System
Related Products
-
250W PV Poly Solar Panels Grade A 1650*992*40US$ 0.4 - 0.54MOQ: 1000 Watts -
250W PV Mono Solar Panel Grade A Cells 1650*992US$ 0.4 - 0.56MOQ: 1000 Watts
-
270W pv Mono Solar Panel Grade A CellsUS$ 0.4 - 0.56MOQ: 1000 Watts
-
30W PV Mono Solar Panel Grade A 550*510US$ 0.5 - 0.56MOQ: 1000 Watts
-
40W PV Mono Solar Panel Grade A Cells 630*542US$ 0.4 - 0.56MOQ: 1000 Watts
Features:
Ø High reliability with guaranteed +/-2% output power tolerance
Ø The modules can withstand high wind-pressure, snow loads and extreme temperatures
Ø Bypass diodes to minimize power loss with shading
Ø High and stable conversion efficiency to ensure the highest quality
Quality and Safety:
Ø Industry leading power output warranty, 25 years spanlife and 10 years power warranty
Ø ISO9001:2008 (Quality Management system) certified factory
Ø Product Quality warranty & products Liability Insurance to guarantee and user' benefits

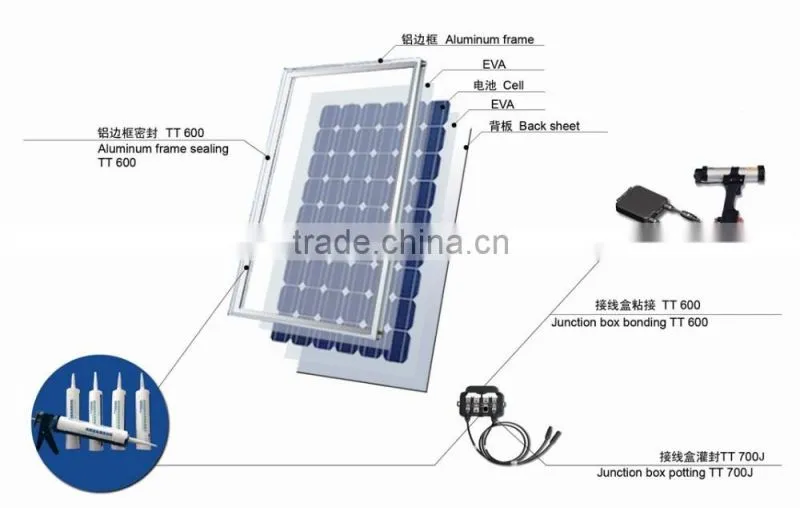

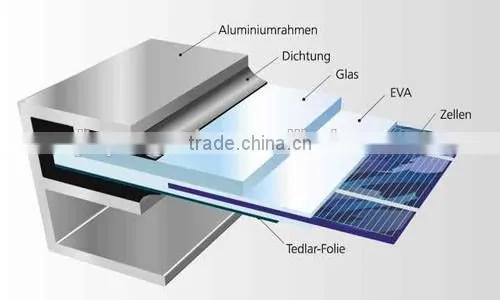

Materials of solar panel:

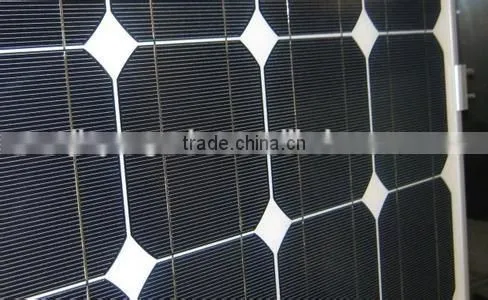

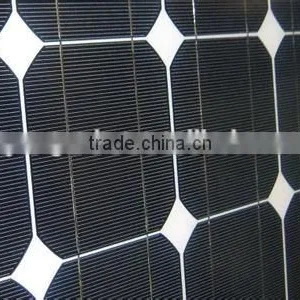

Solar cell------conversion efficency of solar cells: 24%-17%, and ensures high performance and more power under same condition
Front glass------3.2mm, high transmission, low iron, tempered glass,to enhanced stiffness and impact
resistance
EVA------excellent anti-aging EVA , to enhance the rigidity and stability of solar cells
TPT-------TPT hot seal made of flame resistance.
Flame------is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame
Junction box------Ip65 rated, high quality, with diode protection
Bypass diodes ------to avoid hot-spot effect.
Specification:
| MONO 300W | |
| Electrical Characteristics | |
| At standard test-conditions (STC): 1000W/m², cell temperature 25ºC, AM1.5 | |
| Max power at STC | 300W |
| Voltage at max power | 29.6V |
| Current at max power | 8.45A |
| Open circuit voltage | 37.9V |
| Short circuit current | 9.13A |
| Module efficiency | 15.3% |
| α P | -0.48%/K |
| α Voc | -0.33%/K |
| α Isc | +0.02%/K |
| NOCT | 46±3ºC |
| Mechanical Characteristics | |
| Panel cell type | Mono |
| Glass | 3.2mm high transmission, low iron, tempered glass |
| Frame | Anodized Aluminum Alloy |
| Junction box | IP67 |
| Dimension | 1650*992*40cm |
| Weight | 18.3kg |
| Limit Value | |
| Max system voltage | 1000V |
| Working temperature | -40 to 85ºC |
| Largest mechanical load | 540kg/m² |
Our company is the solar energy utilization, research and development, production, sales and service in one large provincial high-tech enterprises, technology research and development began in 2003, in September 2008 formally incorporated, registered capital of 50.1 million RMB, the main products include solar energy solar panels, photovoltaic power plants, LED AC and DC solar lamps, household photovoltaic systems and other new energy products.
Based on strong strength and superior quality products, our company have undertaken many urban solar street reconstruction project in Beijing, Jiangsu, Zhejiang, and Shandong provinces and cities. When products meet domestic market demand, simultaneously they are also exported to overseas developed countries, solar cells panels and solar energy lamp have been exported to the United States, Germany, Australia, Ukraine, Spain and other countries. We are praised and recognised by the Customers at home and abroad based on superior product quality .
We have attended many exhibitions such as Indonesia Exhibition,Canton Fair,ect.Cooperative Partner are came from Southeast Asia, USA, Germany , Spain.They have provided our prodect a high repution.
Why Choose Jieyang?
1.Quality Focused
“Making Reliable Products” is the core business fundamental of our company. We implement an IEC complied quality system in the production for the unique purpose: Perlight ONLY DELIVERS RELIABLE SOLAR PRODUCTS. For more details please refer to Perlight Quality Control System.2.Customer-centric Services
Jieyang rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support teams are always prepared to provide all-round services for our clients.
3.ISO Accredited Factory
With total area of 15000 m2, Jieyang’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.
4.TüVCertified Products
All of our solar panels have passed successfully the German TüV Certification Tests - the most rigorous and worldwide recognized quality standards.
5.System-wide Solutions
In association with partners, Perlight provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.
6.Professional Team
Jieyang has created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
