Specifications | |||||||||
Cell |
monocrystalline silicon solar cells 125MM*125MM |
||||||||
No.of cells and connections |
36(4*9) |
||||||||
Dimension of module(mm) |
1250*660*30 |
||||||||
Weight(kg) |
6.2 |
||||||||
Limits | |||||||||
Operating temperature(°C) |
-40 to +85 |
||||||||
Maximum system voltage |
1000 V DC |
||||||||
Temperature and coefficients | |||||||||
NOCT |
45C±2°C |
||||||||
Current temperature coefficient |
%/k |
0.06±0.01 |
|||||||
Voltage temperature coefficient |
mv/k |
-(155±10) |
|||||||
Power temperature coefficient |
%/k |
-(0.5±0.05) |
|||||||
Output | |||||||||
Type of output terminal |
Junction box |
||||||||
Cable |
LAPP(4.0mm²) |
||||||||
Lengths |
900mm |
||||||||
Connection |
type lv |
||||||||
Characteristics | |||||||||
model |
Maximum power at STC(pm) |
Open cirxuit voltage(Voc) |
Optimum operating voltage(Vmp) |
Short circuit current(lsc) |
Optimum operating current(lmp) |
||||
CNBM60-36M |
60W |
21.60V |
17.20V |
4.74A |
3.52A |
||||
CNBM70-36M |
70W |
21.60V |
17.20V |
4.91A |
4.11A |
||||
CNBM80-36M |
80W |
21.60V |
17.60V |
4.95A |
4.55A |
||||
CNBM90-36M |
90W |
22.30V |
18.70V |
5.36A |
4.81A |
||||
CNBM95-36M |
95W |
22.30V |
18.80V |
5.60A |
5.05A |
||||
| Rated maximum power (Wp) | 90 | 120 | 150 | 180 |
| Maximum power voltage (Vmp) | 18.36 | 24 | 30 | 36 |
| Maximum power current (Imp) | 4.91 | 5 | 5 | 5 |
| Open circuit voltage (Voc) | 22.17 | 28.8 | 36 | 43.2 |
| Short circuit current (Isc) | 5.28 | 5.4 | 5.4 | 5.4 |
| Cell efficiency | 16.75% | 17.00% | 17.00% | 17.00% |
| Max system voltage (VDC) | 750VDC | 1000VDC | 1000VDC | 1000VDC |
| Temperature range | -40~85 Celsius degree | |||
| Power tolerance | ±5% | |||
| Standard test conditions | STC:AM=1.5,1000W/m2,cells temperature 25°C | |||
| Mechanical Characteristics | ||||
| Solar cell | Mono(4*9) | Mono(4*9) | Mono(6*8) | Mono(6*10) |
| Size of module(mm) | 1300*750*9.23 | 1300*750*9.23 | 1380*1050*8 | 1510*1050*8 |
| Weight per piece(kg) | 14 | 14 | 28 | 31.5 |
| Double Glass | 3.2 mm tempered glass | |||
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | |||
| Allowable Hail Load | steel ball fall down from 1m height | |||
| Junction Box Type | Edge(IP65 rated), 1000 VDC,TUV certified; 2 pcs Schottky By-pass diodes | |||
| Connectors | MC Plug Type IV connectors | |||
| Cables | 4.0 mm2, 900m | |||
| Encapsulation | Both sides Low iron tempered glass with light transmission above 91%, laminated with fast cure EVA |
|||

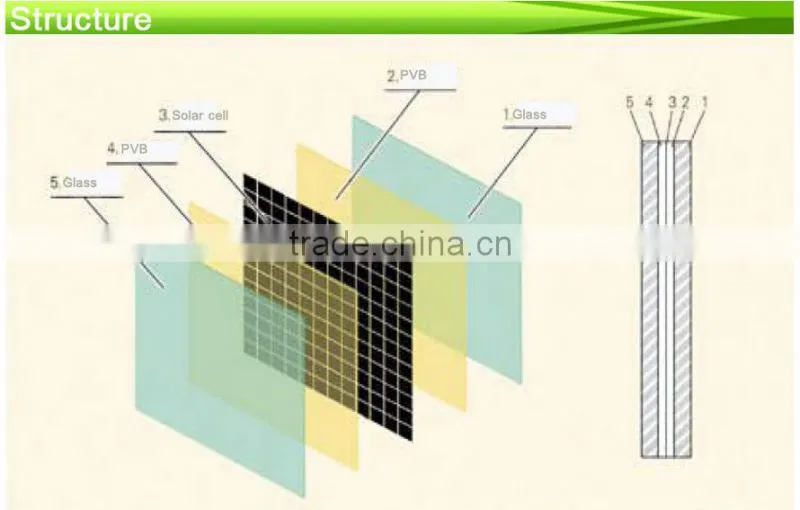

-Glass photovoltaic module definition
Consists of two sheets of glass, intermediate compound solar cells make up the composite layers, cells by wire between series and parallel collection
Wire-side integral components, called double glass modules
Double-glazed solar pv module
1.2
Double glass composed of photovoltaic modules
-Glass PV modules
(1) two sheets of glass must be toughened safety glass second to light a glass must be super white
(2) cell glass including: monocrystalline silicon, polycrystalline silicon, amorphous silicon any about composite layer must be a PE
Alcohol butyral resin (PVB ) Composite (national building specification for safety glass requirements).

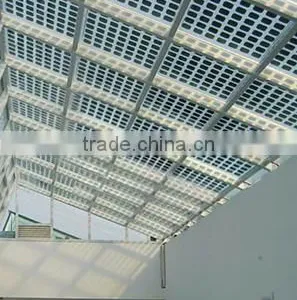

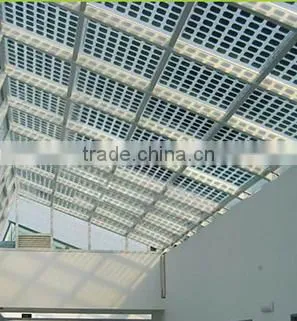

(3) Integrated Photovoltaic curtain wall and building, as part of the building envelope in vitro.
- Our products is designed according to the standard IEC61215:2005,IEC61730:2004:and trained thought adequate testing demonstration to ensure the module’s quality,performance, and life.
- Solar module is adopted high efficiency crystalline silicon cell.
- The lifespan≥25years,the power decrease is less
- No screw inner corner connection can make sure the solar panel is tighten and sealed strong mechanical resistance
Features:
- High conversion effciency
- Low power tolerance of ±3%
- Low degradation under light exposure
- Can withstand high wind-pressure, sonw load and extreme temperature
- Passing IEC61215 2400Pa mechanical load test
Quality and Safety
- Power output wanrranty: 10 years :90%
- 25 yaers: 80%
- ISO 9001:2008(Quality Management System) cetified factory
- IEC61215,IEC61730,MCS CEC certified proucts
- TUV,CE conformity
Our company is the solar energy utilization, research and development, production, sales and service in one large provincial high-tech enterprises, technology research and development began in 2003, in September 2008 formally incorporated, registered capital of 50.1 million RMB, the main products include solar energy solar panels, photovoltaic power plants, LED AC and DC solar lamps, household photovoltaic systems and other new energy products.
Based on strong strength and superior quality products, our company have undertaken many urban solar street reconstruction project in Beijing, Jiangsu, Zhejiang, and Shandong provinces and cities. When products meet domestic market demand, simultaneously they are also exported to overseas developed countries, solar cells panels and solar energy lamp have been exported to the United States, Germany, Australia, Ukraine, Spain and other countries. We are praised and recognised by the Customers at home and abroad based on superior product quality .
We have attended many exhibitions such as Indonesia Exhibition,Canton Fair,ect.Cooperative Partner are came from Southeast Asia, USA, Germany , Spain.They have provided our prodect a high repution.
u Normally packing: 1pc/2pcs per carton
u Individual packing requirement is acceptable.
