Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > 5%-50% Transparent Solar Panel BIPV For Building

5%-50% Transparent Solar Panel BIPV For Building

Name: 5%-50% Transparent Solar Panel BIPV For Building
Brand: JIEYANG
SKU: 105058343

5%-50% Transparent Solar Panel BIPV For Building thumbnail-1

5%-50% Transparent Solar Panel BIPV For Building thumbnail-2

5%-50% Transparent Solar Panel BIPV For Building thumbnail-3

5%-50% Transparent Solar Panel BIPV For Building thumbnail-4

5%-50% Transparent Solar Panel BIPV For Building thumbnail-5

5%-50% Transparent Solar Panel BIPV For Building thumbnail-6

5%-50% Transparent Solar Panel BIPV For Building photo-1

5%-50% Transparent Solar Panel BIPV For Building photo-2

5%-50% Transparent Solar Panel BIPV For Building photo-3

5%-50% Transparent Solar Panel BIPV For Building photo-4

5%-50% Transparent Solar Panel BIPV For Building photo-5

5%-50% Transparent Solar Panel BIPV For Building photo-6

US$ 0.5 - 0.7 MOQ: 100 Watts

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

JIEYANG

Model Number:

BIPV JIEYANG01

Contact Supplier Request Quote Chat Now

Shandong Jie Yang New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name JIEYANG

Model Number BIPV JIEYANG01

Specification Normal

Application Commercial

Output Voltage (V) Customerized

Load Power (W) Customerized

Solar Power (W) Customized

Work Time (h) 24hours

ITEM NO.:	*Mono 156156 cell ,72pcs . Power range from 260Wp-300Wp**
Maximum Power(W)	270	275	280	285	290	295	300	305	310
Optimum Power Voltage(Vmp)	35.1	35.3	35.5	35.7	35.8	35.9	36.1	36.5	36.9
Optimum Operatige Current(Imp)	7.7	7.8	7.89	7.99	8.11	8.11	8.32	8.36	8.4
Open Circuit Voltage(Voc)	43.9	44.1	44.3	44.5	44.7	44.7	45.2	45.5	45.8
Short Circuit Current(Isc)	8.39	8.46	8.53	8.59	8.65	8.7	8.75	8.79	8.83
Solar Cell:	*156156 Mono**
Number of Cell(pcs)	*612**
Brand Name of Solar Cells	JA Cell, Bluesun Cell
Size of Module(mm)	*195699250*
Cable & Connector Type	Pass the TUV Certificate
Frame(Material Corners,etc.)	Aluminium-alloy
Back Sheet	TPT
Cell Efficiency for 300W(%)	17.5%~18.25%
Weight Per Piece(KG)	26.35KG
FF (%)	70-76%
Junction Box Type	Pass the TUV Certificate
Tolerance Wattage(e.g.+/-5%)	0~+3%
Front Glass Thickness(mm)	3.2
Temperature Coefficients of Isc(%)	+0.04
Temperature Coefficients of Voc(%)	-0.38
Temperature Coefficients of Pm(%)	-0.47
Temperature Coefficients of Im(%)	+0.04
Temperature Coefficients of Vm(%)	-0.38
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	5400Pa
Allowable Hail Load	23m/s ,7.53g
Bypass Diode Rating(A)	12
Warranty	100% of 10 years,80% of 25 years.
Standard Test Conditions	AM1.5 1000W/m² 25 +/-2°C
Packing	carton or pallet
*120'**	10 Pallets / 250pcs
*140'STD**	20 Pallets / 500pcs

Product Overviews

Our products is designed according to the standard IEC61215:2005,IEC61730:2004:and trained thought adequate testing demonstration to ensure the module’s quality,performance, and life.
Solar module is adopted high efficiency crystalline silicon cell.
The lifespan≥25years,the power decrease is less
No screw inner corner connection can make sure the solar panel is tighten and sealed strong mechanical resistance

Product Description

Features:

High conversion effciency
Low power tolerance of ±3%
Low degradation under light exposure
Can withstand high wind-pressure, sonw load and extreme temperature
Passing IEC61215 2400Pa mechanical load test

Quality and Safety

Power output wanrranty: 10 years :90%
25 yaers: 80%
ISO 9001:2008(Quality Management System) cetified factory
IEC61215,IEC61730,MCS CEC certified proucts
TUV,CE conformity

Company Information

Our company is the solar energy utilization, research and development, production, sales and service in one large provincial high-tech enterprises, technology research and development began in 2003, in September 2008 formally incorporated, registered capital of 50.1 million RMB, the main products include solar energy solar panels, photovoltaic power plants, LED AC and DC solar lamps, household photovoltaic systems and other new energy products.

Based on strong strength and superior quality products, our company have undertaken many urban solar street reconstruction project in Beijing, Jiangsu, Zhejiang, and Shandong provinces and cities. When products meet domestic market demand, simultaneously they are also exported to overseas developed countries, solar cells panels and solar energy lamp have been exported to the United States, Germany, Australia, Ukraine, Spain and other countries. We are praised and recognised by the Customers at home and abroad based on superior product quality .

Certifications

Trade Shows

We have attended many exhibitions such as Indonesia Exhibition,Canton Fair,ect.Cooperative Partner are came from Southeast Asia, USA, Germany , Spain.They have provided our prodect a high repution.

Packaging & Shipping

Why Choose Jieyang?

1.Quality Focused
“Making Reliable Products” is the core business fundamental of our company. We implement an IEC complied quality system in the production for the unique purpose: Jieyang ONLY DELIVERS RELIABLE SOLAR PRODUCTS. For more details please refer to Jieyang Quality Control System.
2.Customer-centric Services
Jieyang rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support teams are always prepared to provide all-round services for our clients.
3.ISO Accredited Factory
With total area of 15000 m2, Jieyang’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.
4.TüVCertified Products
All of our solar panels have passed successfully the German TüV Certification Tests - the most rigorous and worldwide recognized quality standards.
5.System-wide Solutions

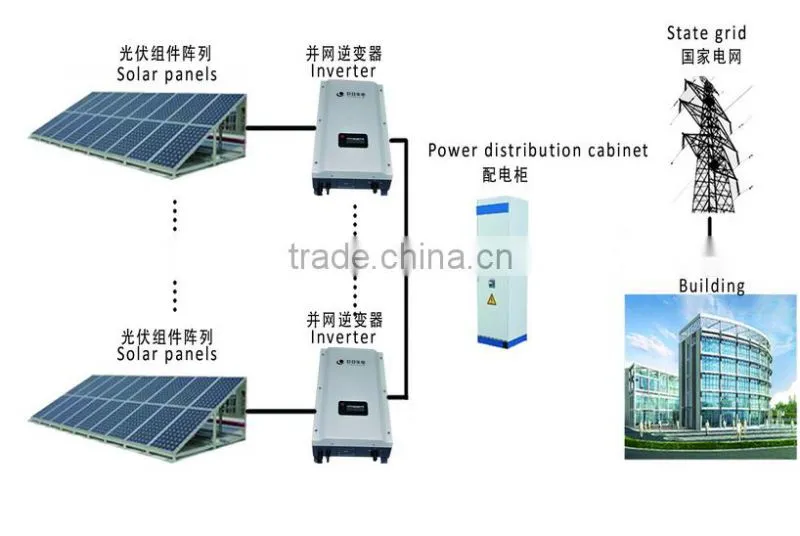

In association with partners, Jieyang provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.
6.Professional Team
Jieyang has created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
