ST3-2.5 Spring Terminal Block Electric Terminal Block
US$ 0.24 - 0.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SIPUN
Model Number:
ST3-2.5
Payment & Shipping
Payment Methods:
Port of Shipment:
00
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ST3-6 Electric Terminal Connector Block for Din RailUS$ 0.14 - 1.54MOQ: 100 Pieces -
ST3-10 Din Rail Spring Type TerminalUS$ 0.24 - 0.4MOQ: 1 Piece
-
ST3-16 Spring Type Din Rail Terminal BlockUS$ 0.2 - 0.5MOQ: 1 Piece
-
ST3-2.5JD Earthing Type Spring Din Rail Terminal BlockUS$ 0.24 - 0.4MOQ: 1 Piece
-
ST3-4JD Grounding Type Din Rail Spring Terminal BlockUS$ 0.24 - 0.4MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
SIPUN
Model Number
ST3-2.5
Number of Contacts
1 - 10
Conductor Size
11 - 20 AWG
Type
Spring
ST3-2.5 spring terminal block electric terminal block
Descruotion:
1.General specifications ST3-2.5 spring terminal Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-2.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness
Specifications:
| Model Number | ST3-2.5 |

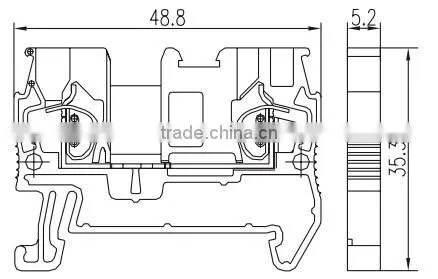

| T/W/H(mm) | 48.8*5.2*35.3 |
| Stripping Length | 10mm |
| Rated Voltage | 800V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

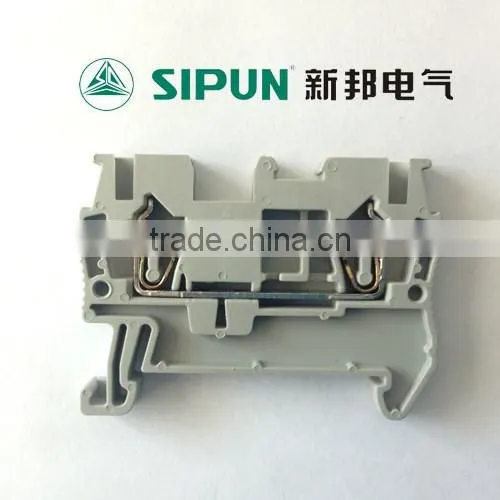

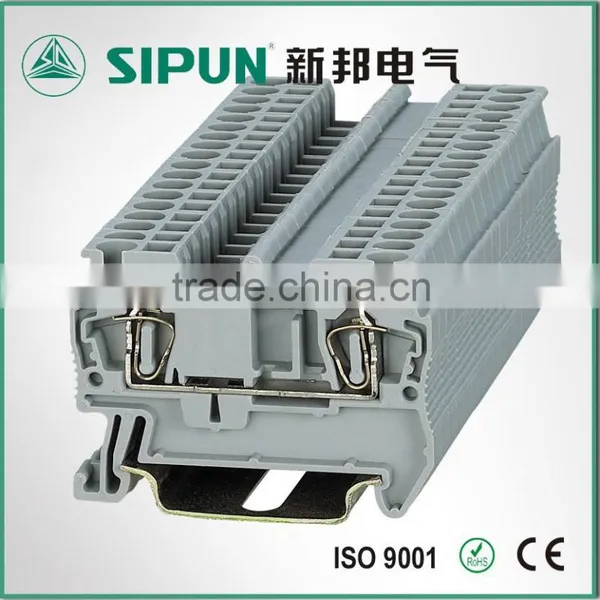

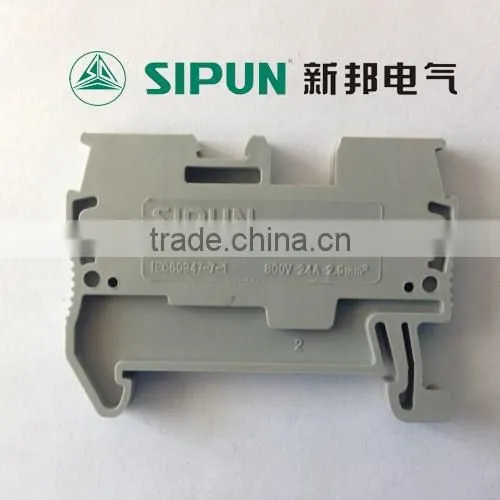

Product Shows
we can customize your color:
Parts:
Compare with others:
Wiring and Install
Wiring diagram:Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
