Home > Consumer Electronics > Kitchen Electronics > Range Hood > C -- High Performance Price Ratio Silm Hood

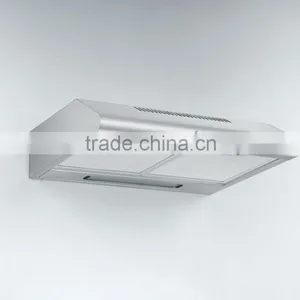

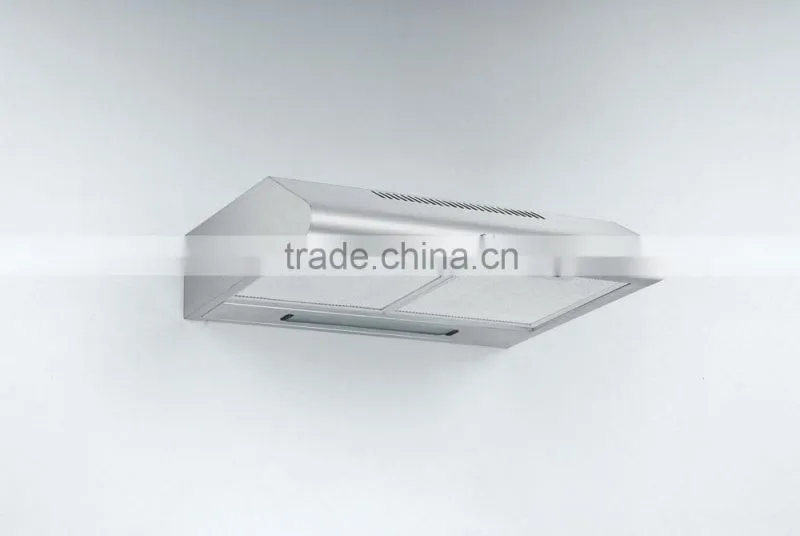

C -- High Performance Price Ratio Silm Hood
US$ 32 - 50
MOQ: 500 Cartons
Key Specifications
Get Latest Price
Type:
Under Cabinet
Exhaust Type:
Combination
Housing:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C -- Cheaper Slim Cooker HoodUS$ 60 - 200MOQ: 500 Cartons -
C -- Slim Cooker Hood Under CabinetUS$ 60 - 200MOQ: 120 Cartons
-
C -- Small Suction Under Cabinet Slim Range HoodUS$ 32 - 50MOQ: 120 Cartons
-
C -- Glass Range Hood for Under CabinetUS$ 60 - 200MOQ: 200 Cartons
-
C -- Under Cabinet Kitchen HoodUS$ 60 - 200MOQ: 200 Cartons
Type
Under Cabinet
Exhaust Type
Combination
Housing
Stainless Steel
Certification
CB, CE, EMC, GS, Other, CB, CE, EMC, GS, ETL
Power (W)
170
Voltage (V)
240
Place of Origin
Zhejiang, China
Brand Name
AISEN
Model Number
KR
Aisen Range hood----KR
| Material | SS304 / SS430 (0.6mm thickness) |
| Air Flow | 300m3/hr |
| Motor Input power(W) | 130W |
| Switch control | 3 Speed push button switch |
| Noise(db) | ≤65 dbA |
| Air outlet | 120 mm |
| Chimney height | No |

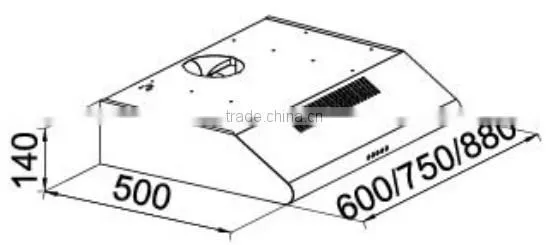

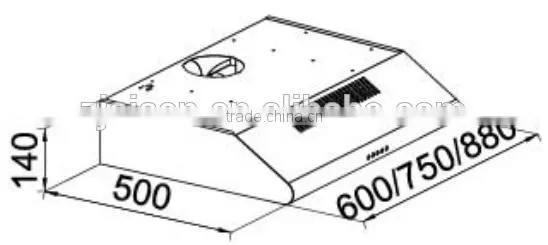

Drawing:
Details:

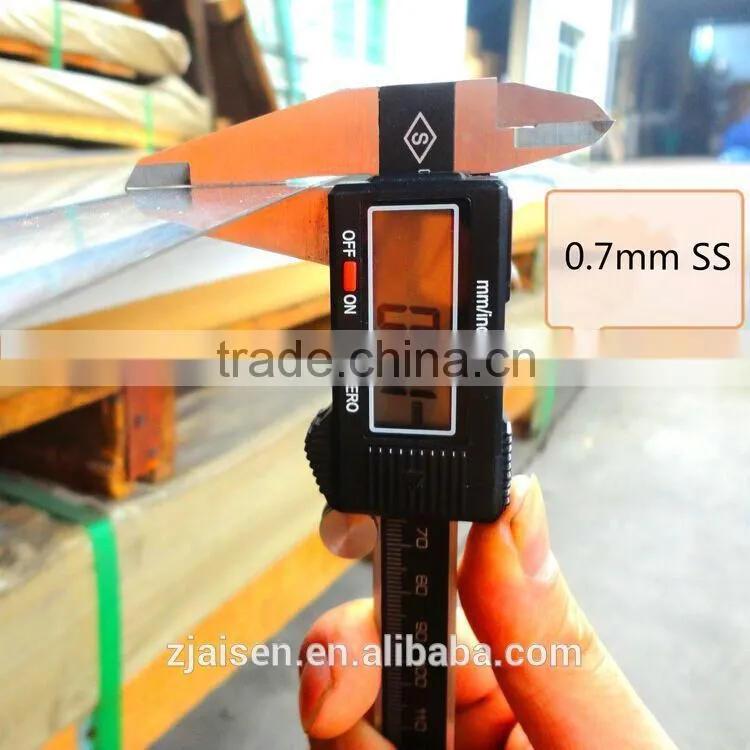

(1)0.7mm thick #430 or #304 stainless steel raw material

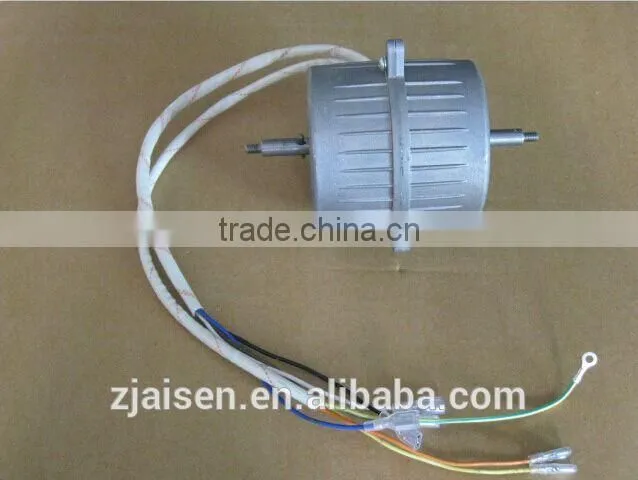

(2)130W Full sealed aluminum motor

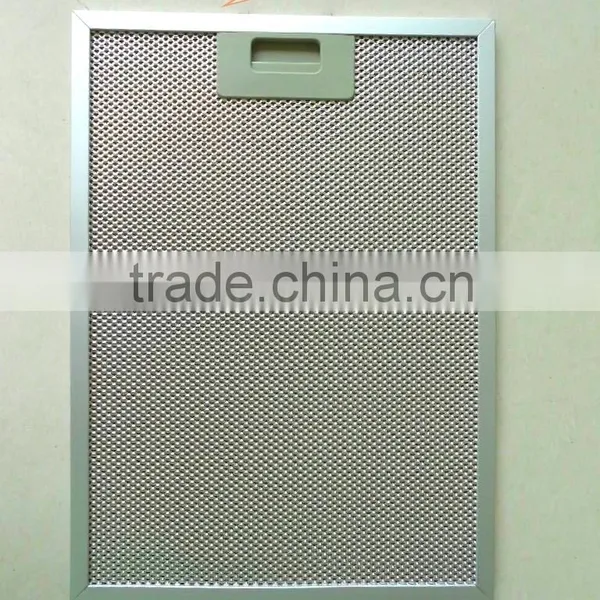

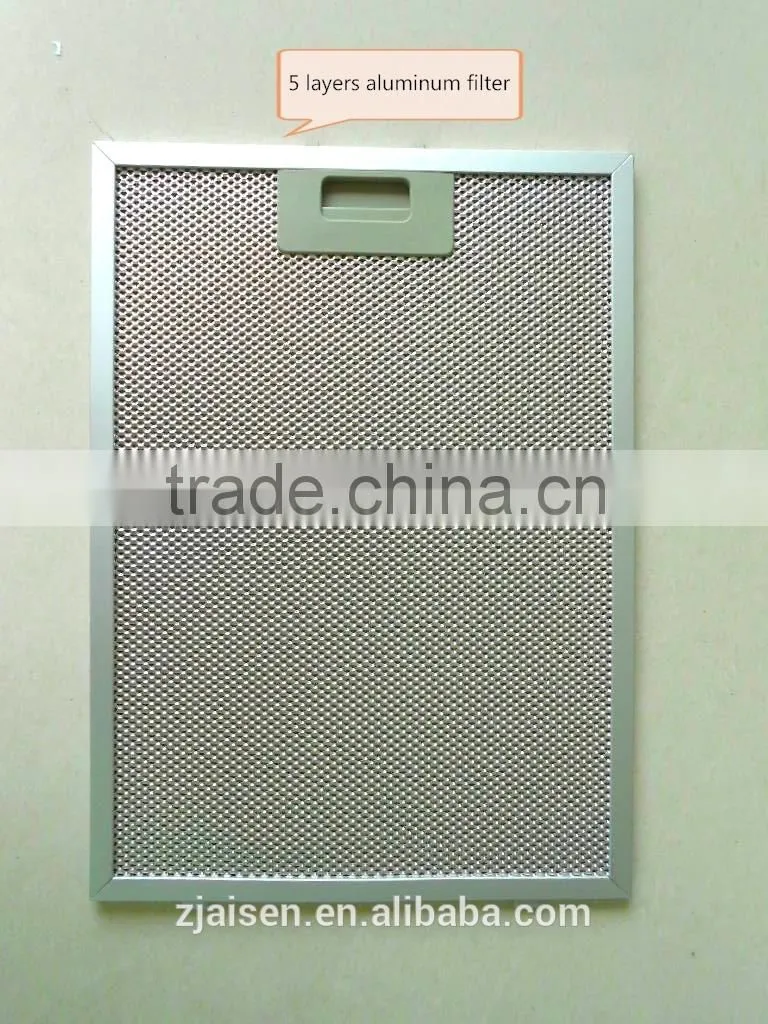

(3) 5 layers Aluminum filter

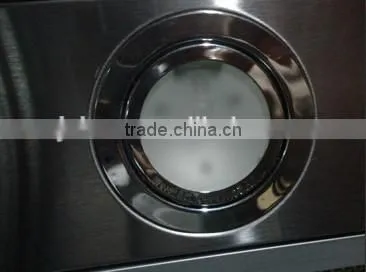

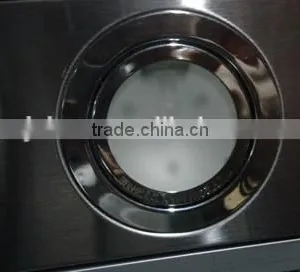

(4) Filament lamps:20W *2

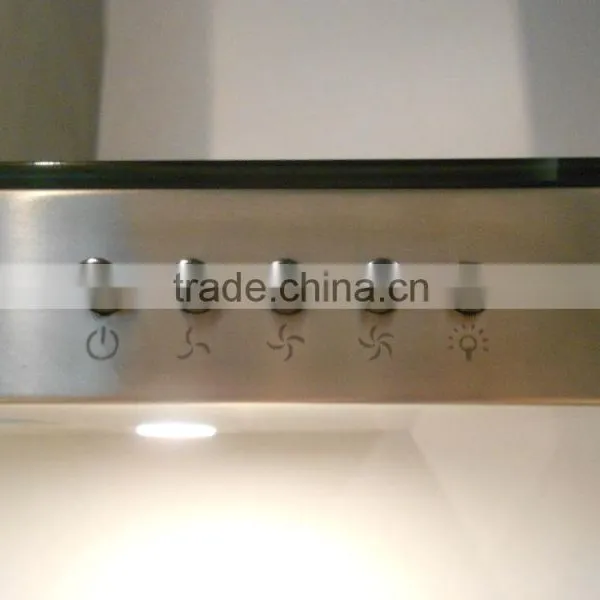

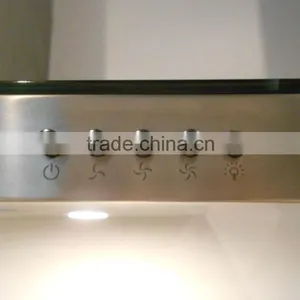

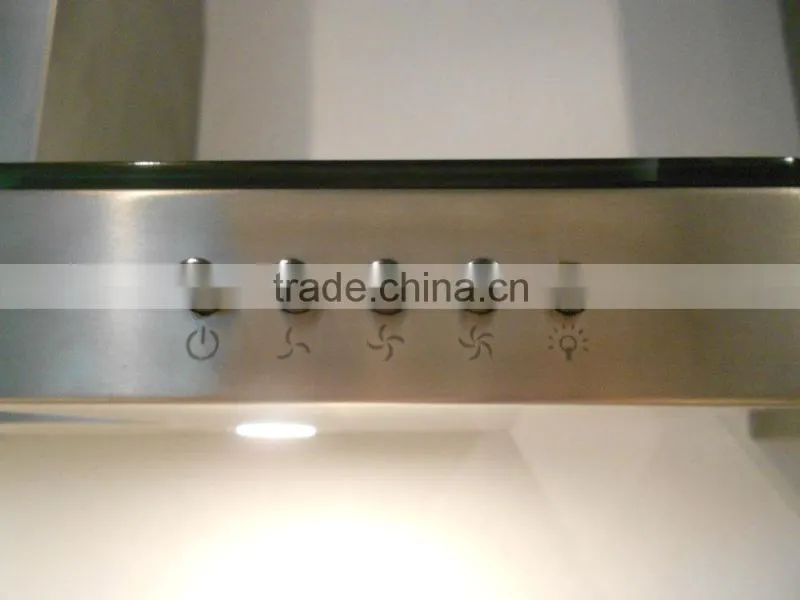

(5) 3 Speed push button switch

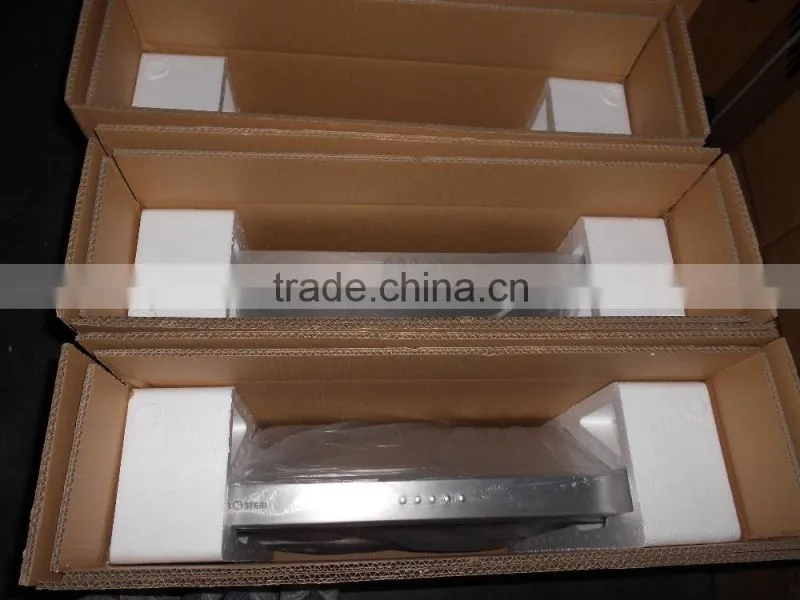

(6)Packing ways:Plastic bag+foam+5 layers corrugated carton

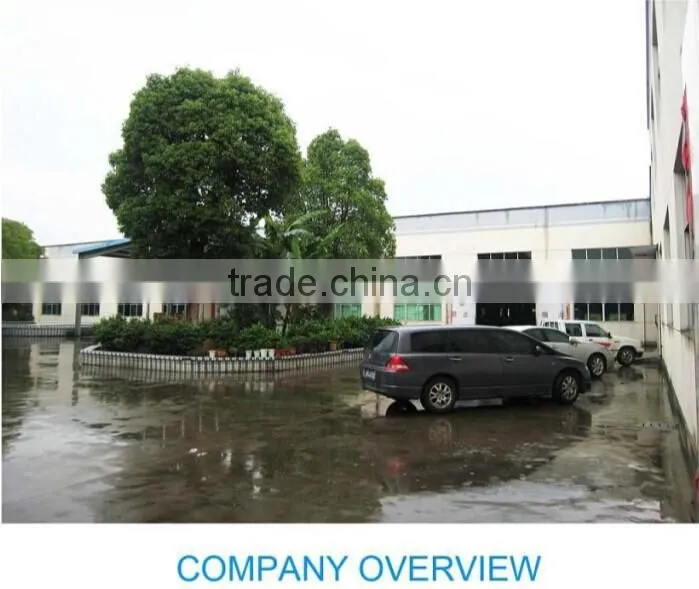

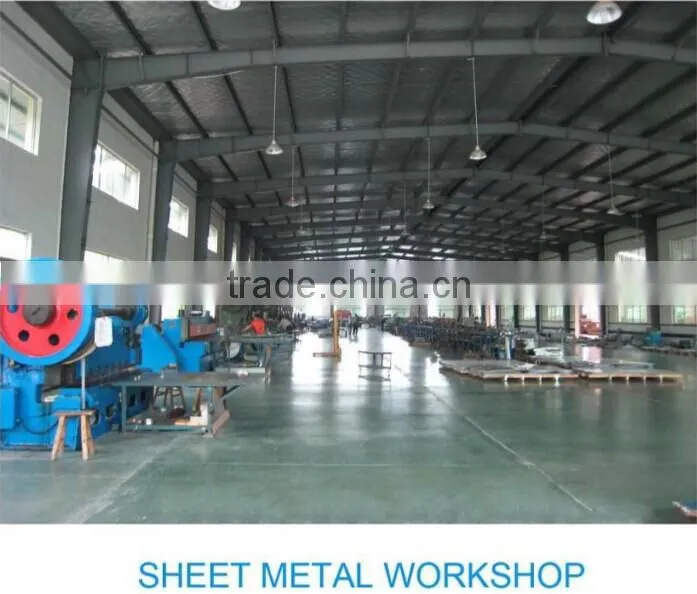

(7)Aisen company photos

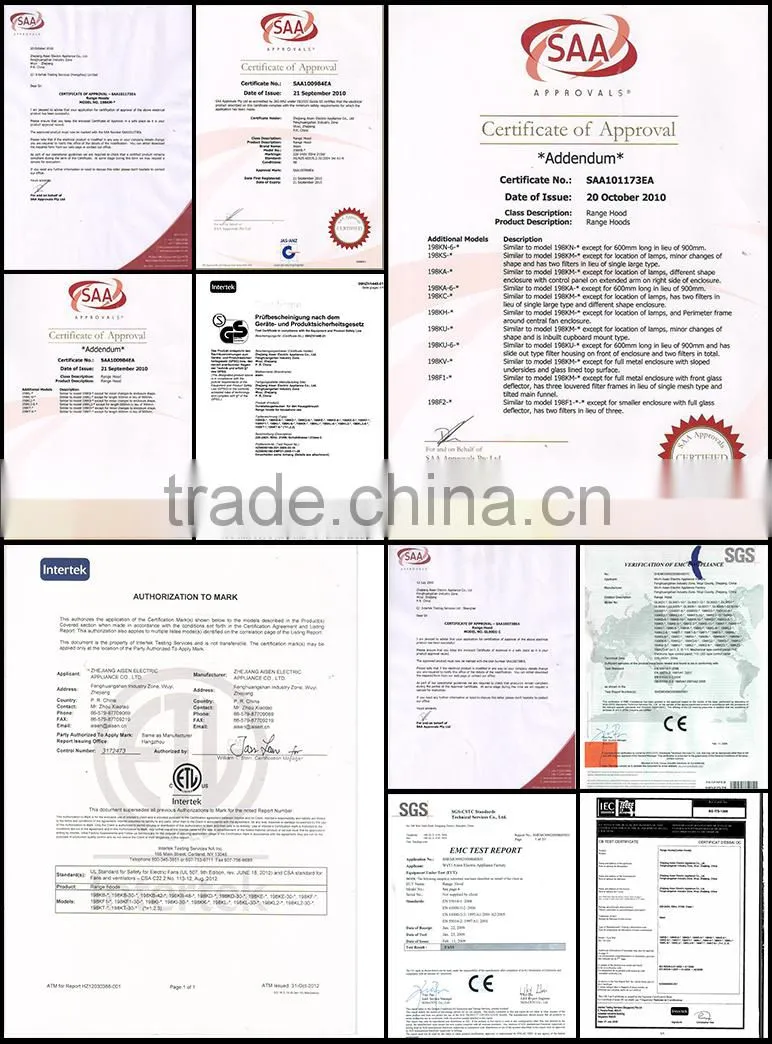

(8)Aisen certifcate--CE/CB/GS/ETL/SAA
(9)Loading information
| Hood Width | 600mm | 750mm | 900mm |
| GW/NW (KGS) | 10/8 | 10/8 | 11/10 |
| Packing size (cm) | 65*18*56 | 80*18*56 | 93*18*56 |
| 20'GP Loading | 419 PCS | 336 PCS | 288 PCS |
| 40'GP Loading | 864 PCS | 688 PCS | 612 PCS |
| 40'HQ Loading | 1000 PCS | 800 PCS | 708 PCS |
| MOQ | 1*20GP | ||

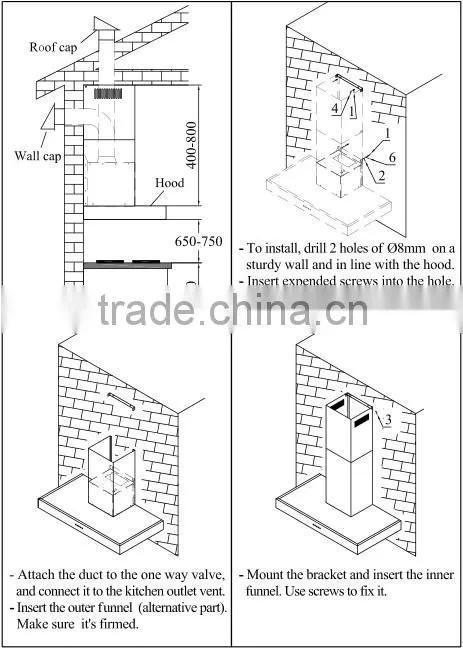

(10)Installation for wall mounted hood
(11)Trouble Shooting
| Problem | Reason | Action |
| Can not function | No electrical supply |
Check that the plug is connected. Check that the main switch is turned on. |
| Poor air flow | Aluminum grease filters clogged | Clean the filters and replace when dry. |
| Charcoal grease filters clogged | Replace charcoal filters with new sets. | |
| No air flow | Butterfly valve jammed | Contact technician. |
| Motor cuts after a few minutes | High temperature safely device activated |
The hood is installed too near the cooking stove. The kitchen is not suffciently ventilated. |
| Strong cooking smell | Charcoal filters not installed | In re-circulating mode,charcoal filters must be installed. |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2009
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
