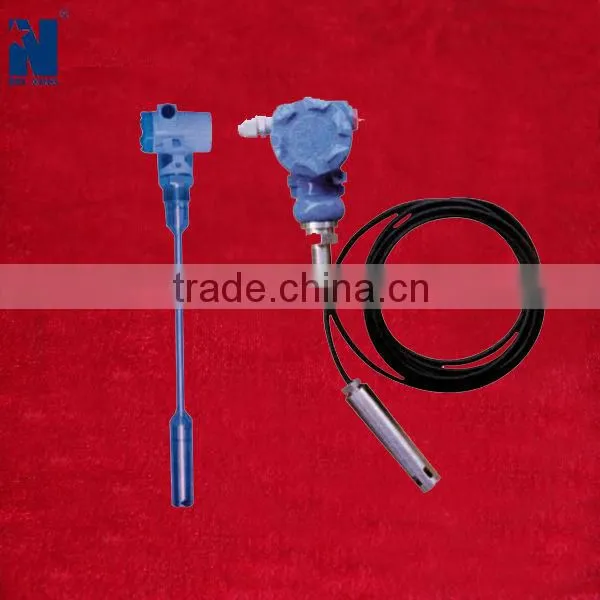

Input type liquid level gauge/indicator/transmitter
General information
Input type hydrostatic level transmitter is a kind of modified product of pressure measurement right for the open vessels.
Features
1. Convenient to use, flexible
2. Widely used, easy to fit
3. Wide measurement range
4. High accuracy, good stability, high reliability
5. Good design for water-proof
Technical parameters
1. Errors: 0.5%F.S or 0.2%F.S
2. Measurement range: cable: min 0~0.35m
max: 0~100m
pole: (gas operated): min: 0~0.35m
max: 0~3m
Power supply: 24VDC
Output: 4-20mA(or 0~10mA, 1-5V, 0~10V),if voltage signal, the sampling resistance must be to 0.05% accuracy.
3. Load resistance: 250 Ω
4. Environment temperature: -20~+85°C
5. Medium temperature: -20~+85°C
6. Storage Temperature: -40~+125°C
7. Installation site: input the bottom of the liquid
8. Cover material of the sensor: 1Cr18Ni9Ti or polytetrafluoroethylene
9. The material of the sensing isolated patch: 316L stainless steel or ceramic
10. The material of the gas leading cable: polyethylene
Installation struction
