Specifications
RGX P8mm outdoor led display1: Low power consumption
2: Long lifespan
3: High resolution
4: High Brightness led display

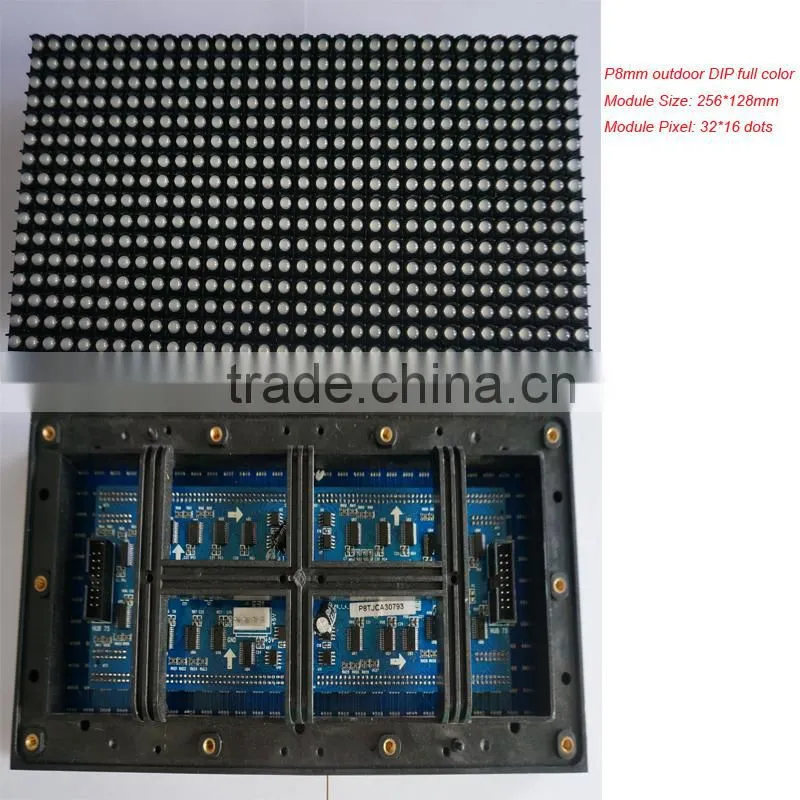

RGX P8 full color led display,p8 dip 3in1 468 rgb led display, p8 dip outdoor led module
Unit Module |
Item: |
RGX outdoor led display Parameter |
Model: |
P8mm Full color outdoor led Module |
|
Pixel Pitch: |
8 mm |
|
Pixel configuration: |
1R1G1B 3in1 DIP |
|
Module Size: |
256mm * 128mm |
|
Module Resolution: |
32dots(W) * 16dots(H) |
|
Module Thickness: |
28mm |
|
Module Weight: |
0.55 KG |
|
LED type: |
DIP468 3in1 |
|
Max Power: |
23W |
|
Pixel Density: |
15625 dots / SQM |
|
Driving Method: |
Constant Current Driving |
|
Scan Method: |
1/4 Scan |
|
Interface Way: |
HUB 75 B |
|
Brightness: |
≥ 8500CD /SQM |
|
Unit Cabinet |
Cabinet Size: |
768mm * 768mm (Support Customize) |
Cabinet Composing: |
18 pcs |
|
Power Supply Mode: |
5V/40A 5V/60A |
|
Cabinet Resolution: |
96dots * 96dots |
|
Optimal Viewing Distance: |
8-120M (according to the big screen size) |
|
Optimal Viewing Angle: |
Horizontal angle: 160 degree; Vertical angle: 90 degree |
|
Environment Temperature: |
Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree |
|
Relative Humidity: |
10% ~ 95% |
|
Power |
Operating Voltage: |
AC:100V~120V AC:220~240V |
Average Power: |
300W/ SQM |
|
Max Power Consumption: |
≤ 600W |
|
Current: |
≤ 20mA (single LED) |
|
Control System |
Computer: |
Pentium4 or above P4 or above |
Operate System: |
Win98/2000/NT/XP |
|
Control Mode: |
Synchronization with PC |
|
|
Main Technical Parameter |
Driving Device: |
IC Constant Current Driving |
Refresh Rate: |
≥ 600Hz |
|
Gray/Color: |
RGB each 256 grade, can display 16.7color |
|
MTPF: |
≥ 9000hours |
|
Power Switch: |
RGX Automatic Switch |
|
Display Mode: |
800*6001024*7681280*960 |
5: Test: Each producing step of P8mm full color led display we have strict test.
6: RGX Certification:
7: Installation: ( Our factory will give you Drawing to teach you how to install it)
9: Pack, Flight case or Wooden case
10: Transportation:
11: Tech. Support:
12: Our Advantage:
1) Professional manufacturer
2) Exquisite quality
A: ISO 9000 and 5S management system
B: Each procedure have special machine and QC to supervise and check
C: From the material purchasing, all have the special Equipment to stakeout
3) Perfect service
A: 2-3years guarantee with free charge, maintain in all life
B: Free training in our company or guide installation and train in customer country or on lone training by long- distance control in internet( you could send your colleagues who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair)
In the end, thank very much for you time, and wish you have good business in your life.
