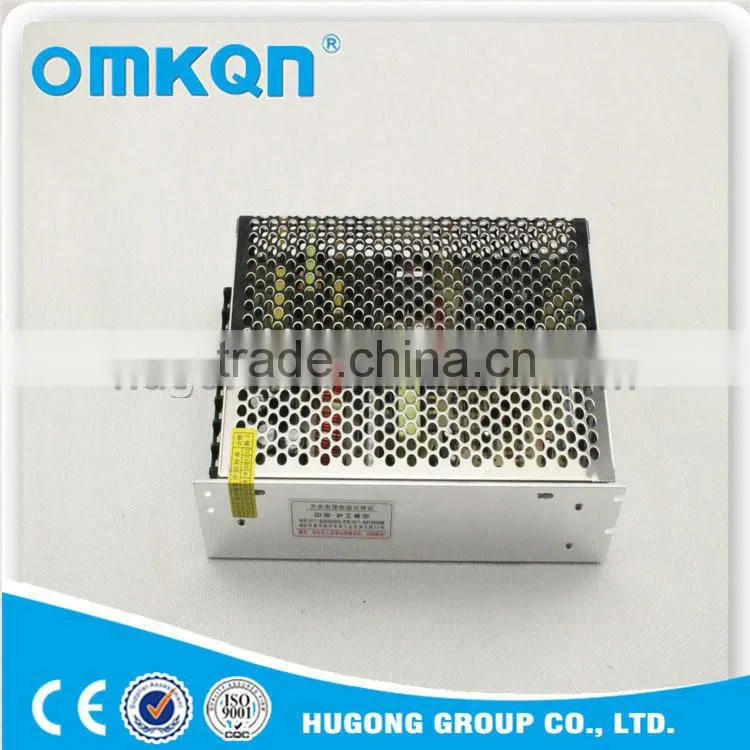

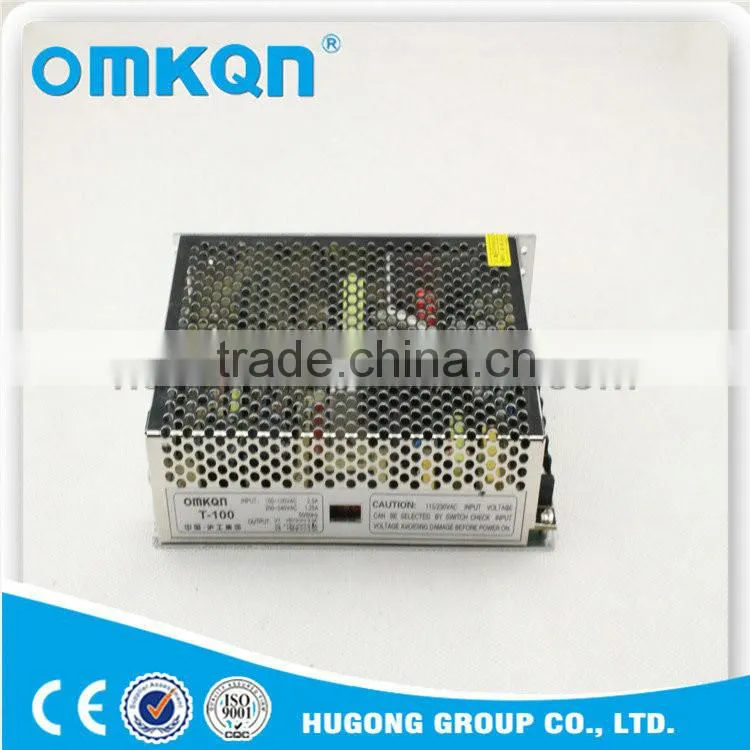

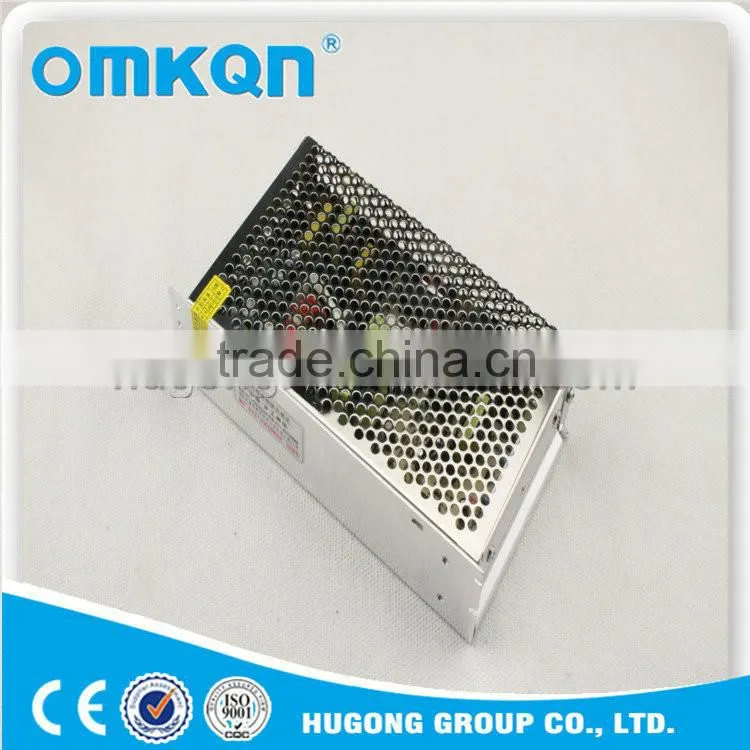

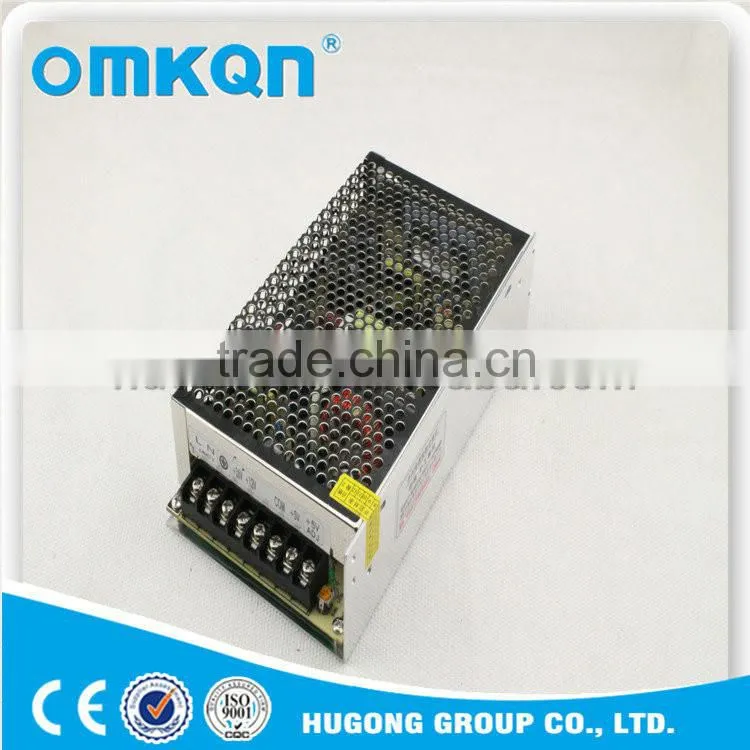

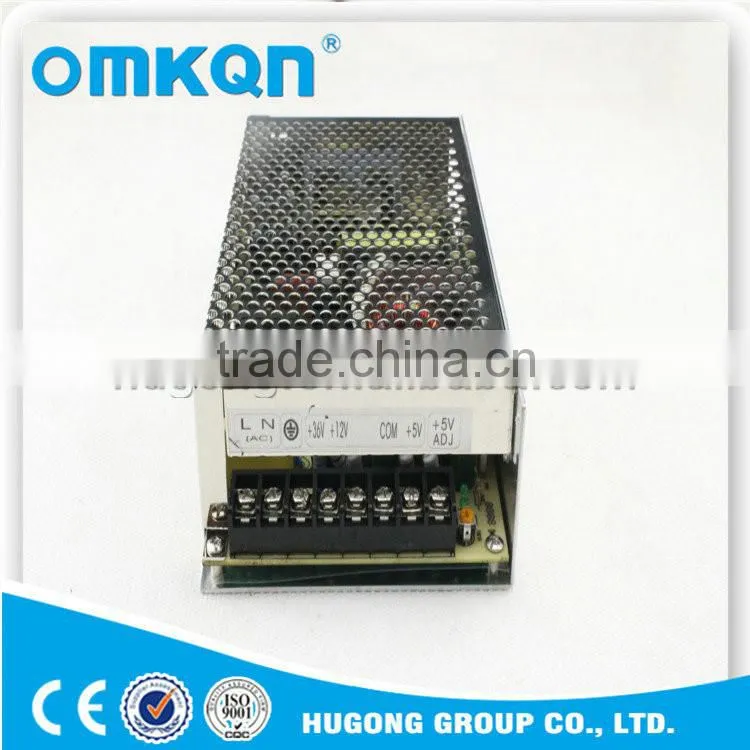

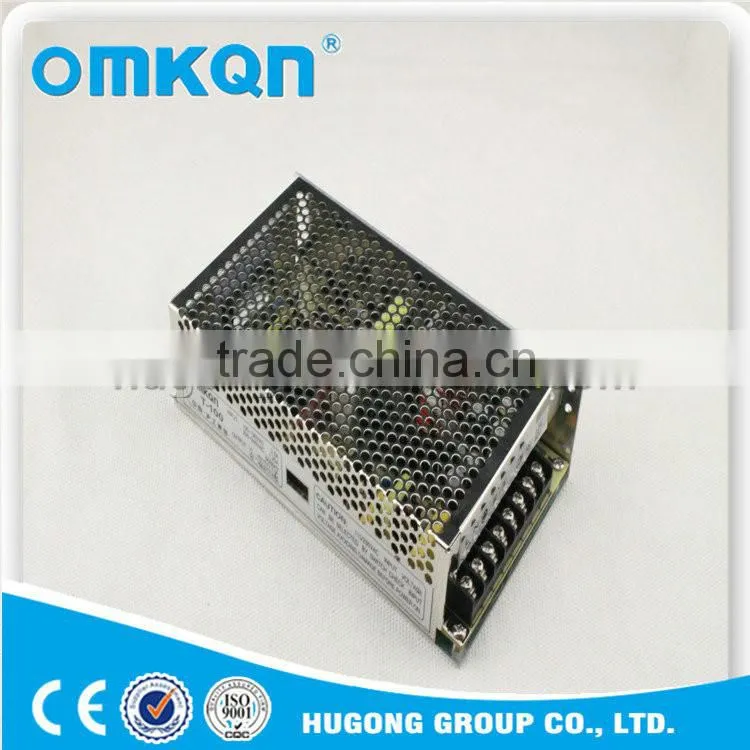

Help CenterWholesale Products T-100 6 Channel Battery Switching Mode Power Supply
Related Products
-
CE Approved 6.5a 150w Single Output 24v Power Supply Switching Power Supply S-150-24US$ 9.92 - 14.81MOQ: 1 Piece -
CE 12v 5a 60w Switching Mode Power Supply Powerizer Factory Price S-60-12US$ 18.93 - 28.46MOQ: 1 Piece
-
CE 100w 24v 4.5a Switching Power Supply Power Switch Manufacturer Factory Price S-100-24US$ 10.78 - 20.93MOQ: 1 Piece
-
CE DC 24v 0.7A 15w Power Supply Switch Factory Price S-15-24US$ 6.23 - 20.23MOQ: 1 Piece
-
12v 25w 2.1A S-25-12 Power Supplies Manufacturer Price CE S-25-12US$ 6.62 - 20.84MOQ: 1 Piece
Welcome,my friend! Glad to introduce our company Hugong Group to you.
Our company produce proximity Sensor, magnetic sensor,position sensor,
infrared sensor,photoelectric sensor,switching power supply and etc.
If you have any questions, please don't hesitate to ask me.
The specification of our Newest Products.
| Model |
T-100C |
T-100D |
||||
| Specification | ||||||
| CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| DC Output voltage | 5V | 15V | -15V | 5V | 12V | 24V |
| Output voltage range(Note:2) | ±2% | ±6% | ±6% | ±2% | ±6% | ±6% |
| Rated output current | 10A | 2.5A | 1A | 10A | 2A | 2A |
| Output current range | 2-10A | 0.2-2.5A | 0.1-1A | 2-10A | 0.1-2A | 0.2-2A |
| Wave and noise(Note:3) | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note:4) | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% |
| Load stability(Note:5) | ±1% | ±5% | ±5% | ±1% | ±5% | ±5% |
| DC output power | 102W | 122W | ||||
| Efficiency | 77% | 79% | ||||
| Adjustable range for DC voltage | CH1;+10,-5% | CH1;+10,-5% | ||||
| AC input voltage range | 85 ~ 132VAC / 176 ~ 264VAC selected by a switch 47 ~ 63Hz, 240 ~ 370VDC | |||||
| Input current | 2.5A/115V 1.25A/230V | |||||
| AC Inrush current | Cold-start current 30A/115V 60/230V | |||||
| Leakage current | < 0.5mA/240VAC | |||||
| Overload | 105% -150% Type: current limiting reset: auto recovery | |||||
| Temperature Coefficient | ±0.03%/℃ (0-50℃) | |||||
| Start, rise, holding time | 200ms 50ms 16ms | |||||
| Shock resistance | 10-500Hz, 2G 10min, / 1 cycle, period for 60 minutes each axis | |||||
| Pressure resistance | Between input and output: 1.5KvAC Input and enclosure: 1.5KvAC Output and enclosure: 0.5KvAC | |||||
| Isolation resistance | Between input and output, input and enclosure, Output and enclosure: 500VDC / 100MΩ | |||||
| Temperature, humidity | -10 ℃ - + 60 ℃ (reference output characteristic diagram), 20% -90% RH | |||||
| Storage temperature and humidity | -20℃-+85℃,10%-95%RH | |||||
| Dimensions | 199*110*50mm | |||||
| weight | 0.83Kgs | |||||
| Note | 1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature. | |||||
| 2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5). | ||||||
| 3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting. | ||||||
| 4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload. | ||||||
| 5. Load stability test: The load is from 0% to 100%. | ||||||
Output voltage can be specified by the customer
Our Group introduction
1.With 10 years specializing in producing sensor selection manual,solid state relay,switching power supply
selection manual.
2.After years of development, the company has created a wealth of experience in sales and after-sales service team
3.Strong enterprise innovation,with groups of professional engineers and salesman.
4.Our high quality have gain the market public praise from domestic.
5.We have very good and comprehensive after sales service
6.We have no MOQ for client.
7.Manufacturers and users in the formation of a very high reputation.
1. Q: What certifications do you get?
A: We have CE.
2. Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
4. Q: How to pay?
A: T/T,PayPal and western union are acceptable.Full payment by T/T before shipment. Trade term:FOB CIF CNF DDP
5. Q: What is the delivery time?
A: Generally, 3-5 working days after the payment.We have the normal type on stock and we can make the delivery
within 3 days.If the customer has the special requirements,delivery time depends on the quantity ordered.
6. Q: What about the Package?
A: Standard export package (paper carton) for shipment with our company’s brand.Inner box with 10pcs products
sealed package.All of the productions are inspected carefully by QC before delivery.
7.Q:What is your company min.order?
A: No MOQ for stocking production.
Order a HQ container,price will be more favorable.
