Specifications
S-15-12 12vdc output switching power supply110v to 12v dc converter factory price
focus on 110v to 12v dc converter
CE
Welcome,my friend! Glad to introduce S-15-12 CE approved 12vdc single output switching power supply 110v to 12v dc converter and our company Hugong Group to you. If you have any questions, please don't hesitate to ask me.
Product details

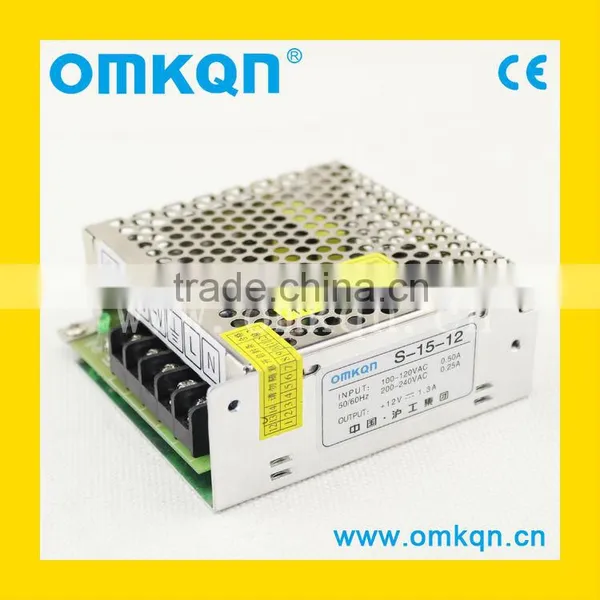

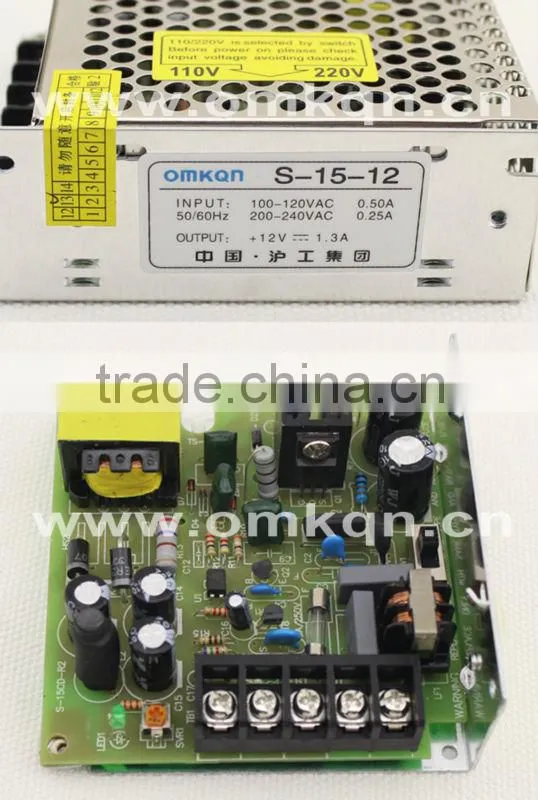

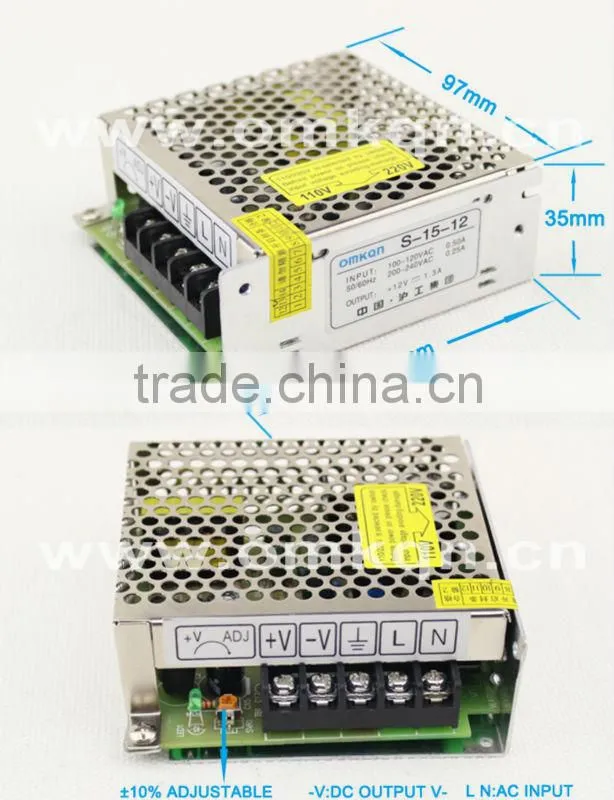

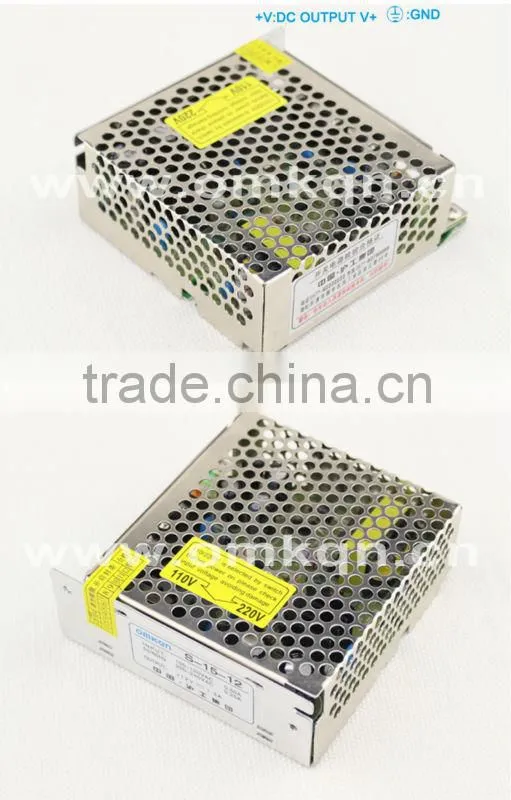

1. Product appearance pictures of S-15-12 CE approved 12vdc single output switching power supply 110v to 12v dc converter

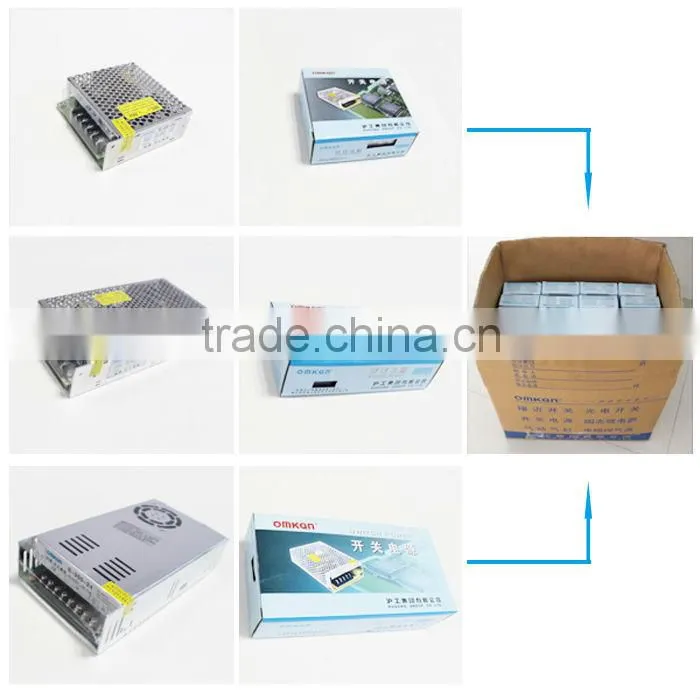

2.Packing of S-15-12 CE approved 12vdc single output switching power supply 110v to 12v dc converter
ODM is welcome
3.Specification of S-15-12 CE approved 12vdc single output switching power supply 110v to 12v dc converter
| Model | S-15-5 | S-15-12 | S-15-24 |
| Specification | |||
| DC output voltage | 5V | 12V | 24V |
| Output voltage range(Note:2) | ±2% | ±1% | ±1% |
| Rated output current | 3A | 1.3A | 0.7A |
| Output current range | 0-3A | 0-1.3A | 0-0.7A |
| Wave and noise(Note:3) | 50mVp-p | 50mVp-p | 100mVp-p |
| Inlet stability(Note:4) | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note:5) | ±1% | ±0.5% | ±0.5% |
| DC output power | 15W | 15.6W | 16.8W |
| Efficiency | 65% | 68% | 72% |
| Adjustable range for DC voltage | +10,-5% | ±10% | ±10% |
| AC input voltage range | 85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC | ||
| Input current | 0.5A/115V 0.25A/230V | ||
| AC Inrush current | Cold-start current 15A/115V 30A/230V | ||
| Leakage current | <0.5mA/240VAC | ||
| Overload protection | 105%-150% Type: pulsing hiccup shutdown Reset: auto recovery | ||
| Over-voltage protection | ………… | ||
| High-temperature protection | ………… | ||
| Temperature coefficient | ±0.02%/°C(0~50°C) | ||
| Set up, rise, hold up time | 200ms,100ms,30ms | ||
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | ||
| Withstand voltage | Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvAC | ||
| Isolation resistance | Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ | ||
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH | ||
| Store temperature and humidity | -20°C~+85°C,10%~95%RH | ||

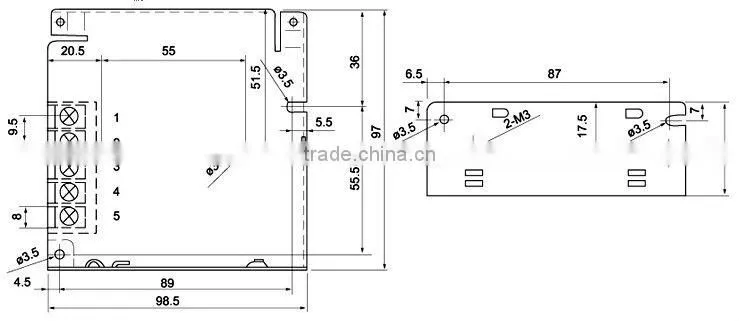

| Overall dimension | 99X97X35mm | ||
| Weight | 0.3kgS | ||
| Safety standards | Meet UL 1012 requirement(Not apply for the mark) | ||
| EMC standards | Meet FCC PART15 J Conduction class B | ||
| Note | 1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature. | ||
| 2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5). | |||
| 3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting. | |||
| 4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload. | |||
| 5. Load stability test: The load is from 0% to 100%. | |||
Output voltage can be specified by the customer
4.CE certification of S-15-12 CE approved 12vdc single output switching power supply 110v to 12v dc converter
Company Information
1.Our company have 10 years' experience in producting switching power supply.We are professional switching power supply manufacturer with professional R&D team,mass production,complete type of switching power supply and large inventory spot.
2.Our switching power supply will be packed and shipped undergoing the strict material selection,production,inspection and a series of steps.
3.Here are our ministry of foreign trade's members.
Thanks for your time,waiting for your kindly inquiry :)
