CE Approved Switching Power Supply Circuit Diagram 75w 12v 6A S-75-12

Name: CE Approved Switching Power Supply Circuit Diagram 75w 12v 6A S-75-12
Brand: OMKQN
SKU: 105193997

CE Approved Switching Power Supply Circuit Diagram 75w 12v 6A S-75-12 thumbnail-1

CE Approved Switching Power Supply Circuit Diagram 75w 12v 6A S-75-12 photo-1

US$ 5.48 - 8.35 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OMKQN

Model Number:

S-75-12

Contact Supplier Request Quote Chat Now

Hugong Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OMKQN

Model Number S-75-12

Output Power Other, 75w

Output Type Single

Input Voltage Other, 110V/220V

Output Voltage 12V

Output Frequency 47-63HZ

Output Current 6A

Specifications

switching power supply circuit diagram S-75-12
switching power supply circuit diagram factory price
2 years warranty
CE

Welcome,my friend! Glad to introduce CE approved switching power supply circuit diagram 75w 12v 6A S-75-12 and our company Hugong Group to you. If you have any questions, please don't hesitate to ask me.

Product details

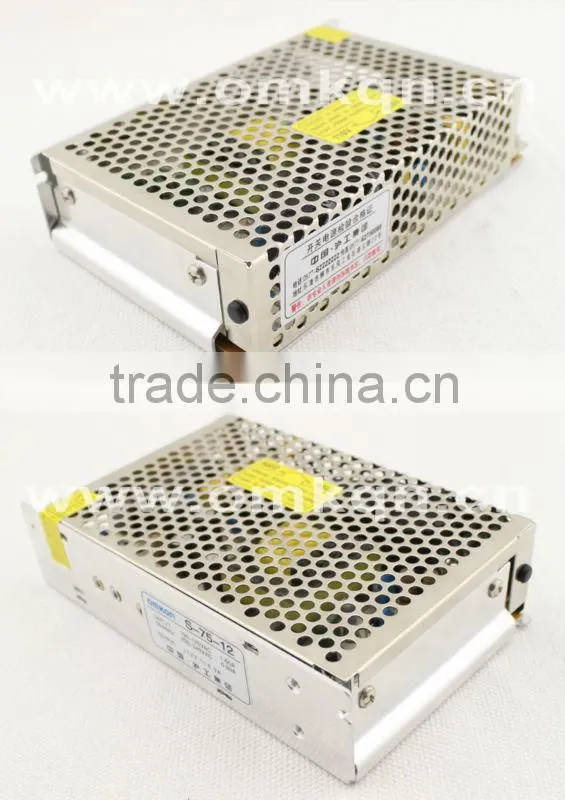

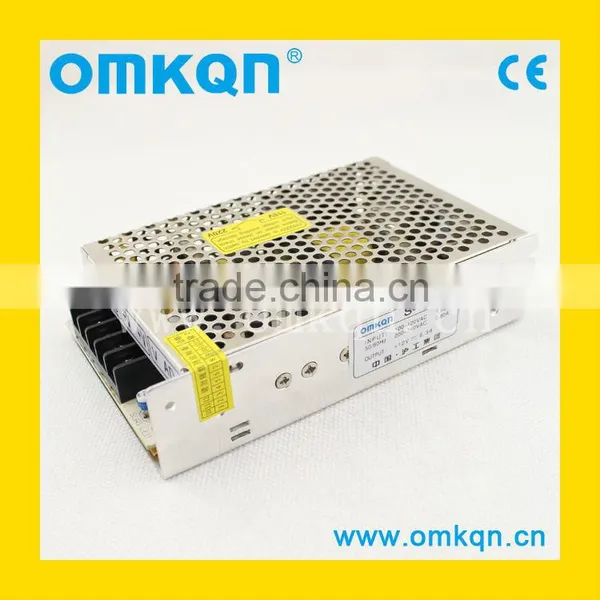

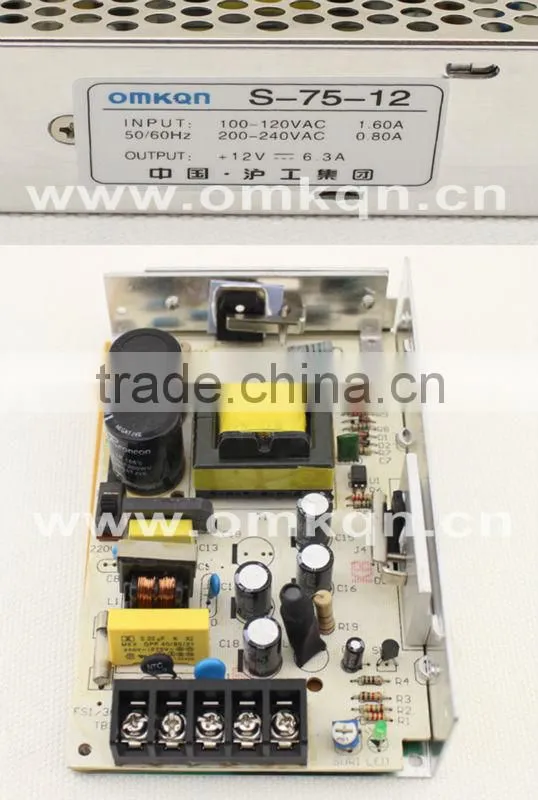

1.Product appearance pictures of CE approved switching power supply circuit diagram 75w 12v 6A S-75-12

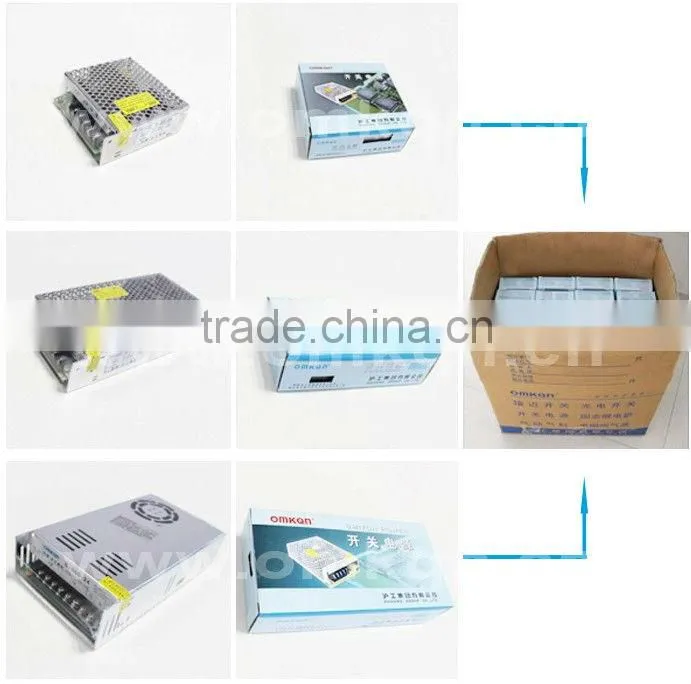

2.Packing of CE approved switching power supply circuit diagram 75w 12v 6A S-75-12

ODM is welcome

3.Specification of CE approved switching power supply circuit diagram 75w 12v 6A S-75-12

Model	S-75-5	S-75-12	S-75-15	S-75-24
Specification	S-75-5	S-75-12	S-75-15	S-75-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±2%	±1%	±1%
Rated output current	12A	6A	5A	3.2A
Output current range	0~12A	0~6.3A	0~5A	0~3.2A
Wave and noise(Note:3)	70mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	60W	75.6W	75W	76.8W
Efficiency	71%	78%	78%	82%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
Input current	1.6A/115V 0.8A/230V
AC Inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH

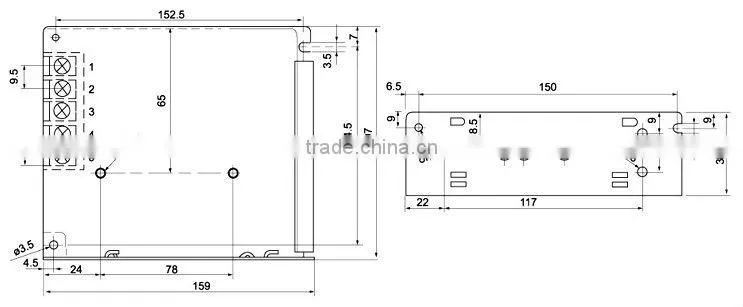

Overall dimension	*159X97X38mm (LWH)*
Weight	0.6kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	.........................................................
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.
	2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).
	3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
	4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.
	5. Load stability test: The load is from 0% to 100%.

Output voltage can be specified by the customer

4.CE certification of CE approved switching power supply circuit diagram 75w 12v 6A S-75-12

Company Information

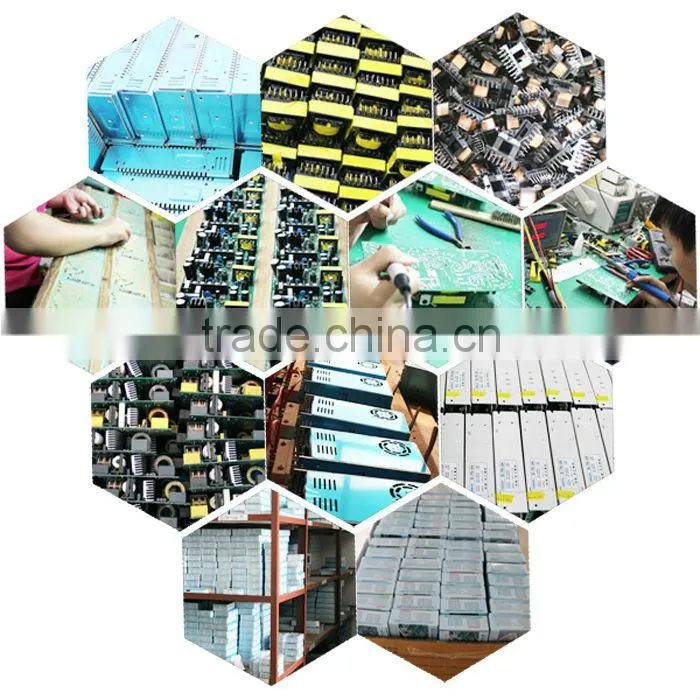

1.Our company have 10 years' experience in producting switching power supply.We are professional switching power supply manufacturer with professional R&D team,mass production,complete type of switching power supply and large inventory spot.

2.Our switching power supply will be packed and shipped undergoing the strict material selection,production,inspection and a series of steps.

3.Here are our ministry of foreign trade's members.

Thanks for your time,waiting for your kindly inquiry :)
