Slider type automatic toroid winding machine
Product Description
Description of SS900S4 slider type automatic toroid winding machine :
The SS900S4 digital automatic toroid winding machine adopts CNC toroid controller,it is one slider shuttle type.
It's an accurately and reliability digital toroid-winding machine. is used for toroidal inductor, toroidal transformer,
toroidal current transformer, toroidal current sensor, toroidal coil, toroid chock coil, power inductors, power magnetics,
The SS900S4 digital automatic toroid winding machine adopts CNC toroid controller,it is one slider shuttle type.
It's an accurately and reliability digital toroid-winding machine. is used for toroidal inductor, toroidal transformer,
toroidal current transformer, toroidal current sensor, toroidal coil, toroid chock coil, power inductors, power magnetics,
UPS inductor, converter inductors, watter metter sensors, toroid current transformer of electronic watt-hour meter, etc.
Features of SS900S4 slider type automatic toroid winding machine :
1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count wire length of loading by wire lenght sensor which be integrated in the motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900S4 slider type automatic toroid winding machine :
Features of SS900S4 slider type automatic toroid winding machine :
1. Collocate slider type winding head,interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count wire length of loading by wire lenght sensor which be integrated in the motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900S4 slider type automatic toroid winding machine :
Copper wire diameter: 0.05~0.3mm
Min. Finished coil ID: 4.5mm(will be different by shuttle size and coil height)
Finished coil OD range: 5~60mm
Max. Speed: 1800RPM
Winding motor: 1/2HP DC brushless motor
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V/110V +10%, 50/60 Hz
Dimension: L60x36x64(cm)
Net weight: 40kgs
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V/110V +10%, 50/60 Hz
Dimension: L60x36x64(cm)
Net weight: 40kgs
| Model | Universally matched shuttle model | Copper wire diameter range(mm) | Min. inside diameter of finished coil (mm) | Out side diameter of finished coil range (mm) | Height of finished coil range (mm) |
| SS900B2 |
1.6 1.8 2.0
|
0.07 ~0.25 | 2.5 | 5 ~ 16 | 3 ~8 |
SS900B3 |
1.8 2.0 2.5
|
0.07 ~0.25 | 2.5 | 5 ~16 | 3 ~8 |
| SS900B4 | 2.5 2.8 3.0 3.5 or customized | 0.15 ~0.8 | 3 | 5 ~60 | 3 ~25 |
| SS900S4 | 2.6 3.0 3.5 or customized | 0.05 ~0.3 | 4.5 | 5 ~60 | 3 ~25 |
| SS900B6 | 3.5 5.0 6.3 or customized | 0.3 ~1.2 | 6 | 10 ~80 | 5 ~45 |
| SS900S6 | 3.5 5.0 6.3 or customized | 0.08 ~0.35 | 7 | 10 ~80 | 5 ~45 |
| SS900B8 | 8 10 12 15 or customized | 0.35 ~1.5 | 12 | 20 ~150 | 8 ~80 |
| SS900S8 | 8 10 12 15 or customized | 0.3 ~0.6 | 15 | 20 ~150 | 8 ~80 |
How to select the best suited automatic toroid coil winding machine for your toroid coil,
Tell us your toroidal coil of data as below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.
Automatic toroid winding machine

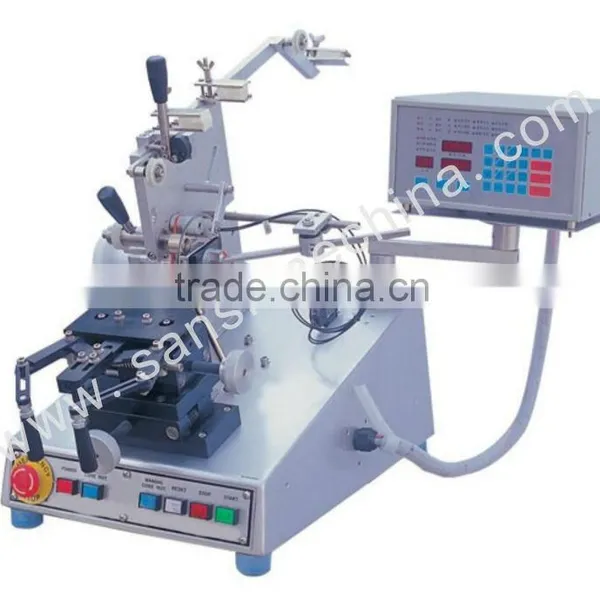

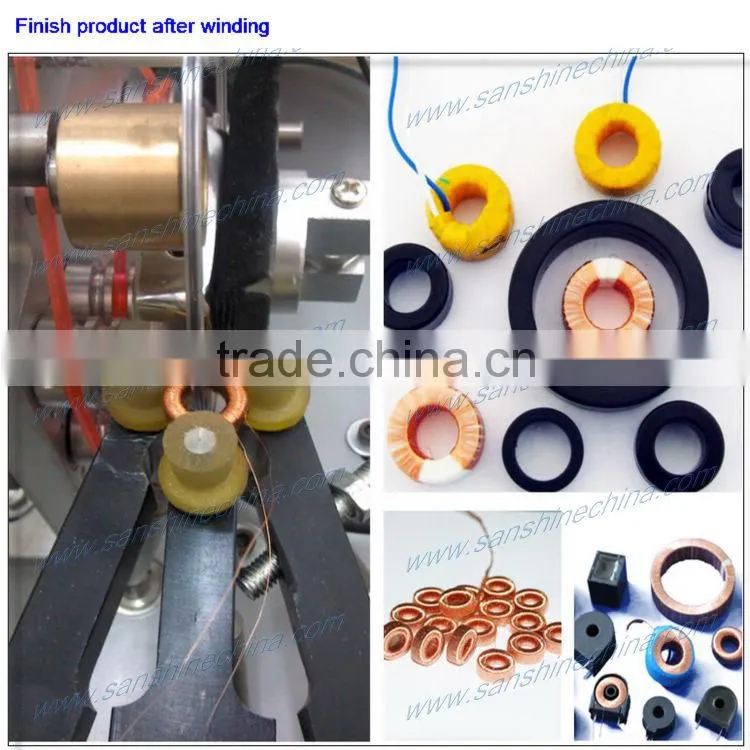

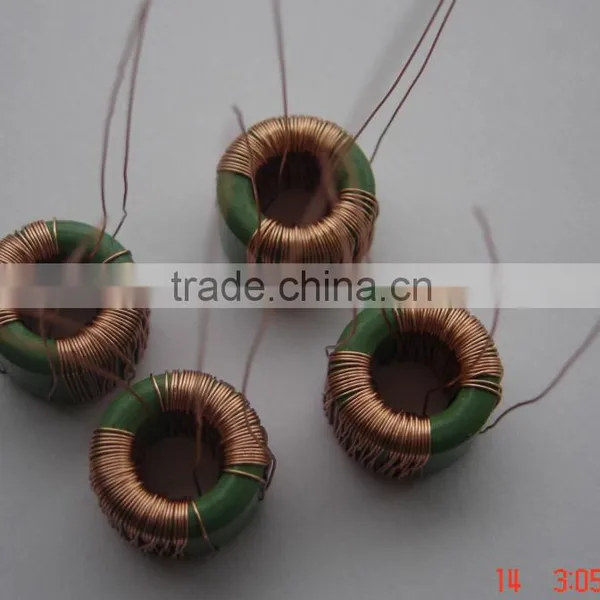

Coil winding example of SS900S4 slider type automatic toroid winding machine

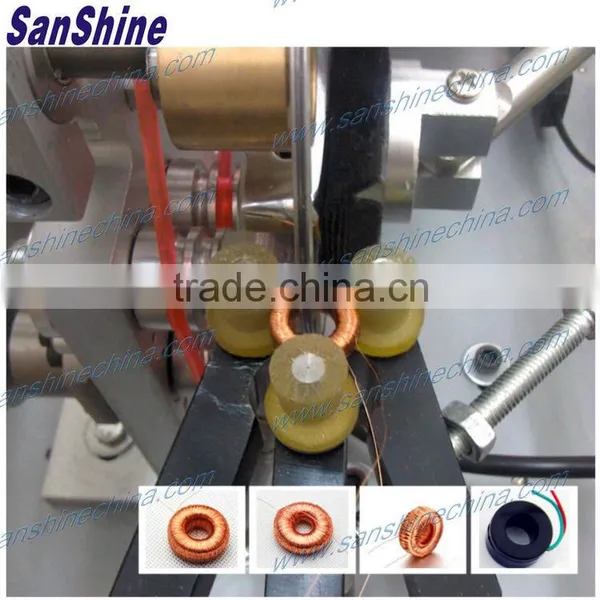

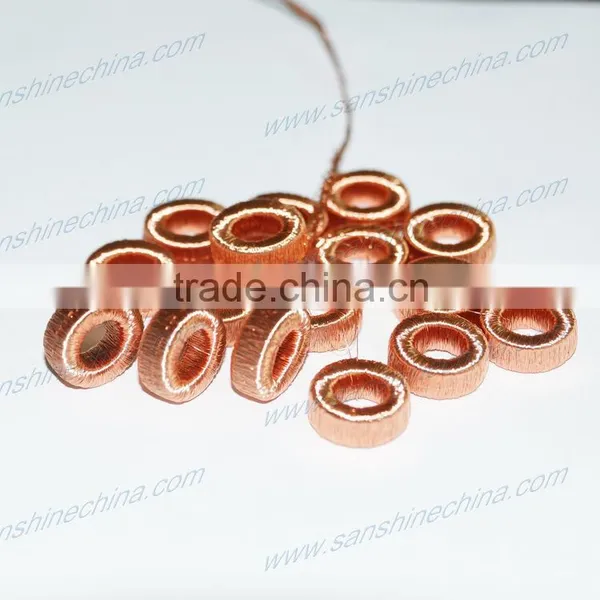

Coil winding example of SS900S4 slider type automatic toroid winding machine

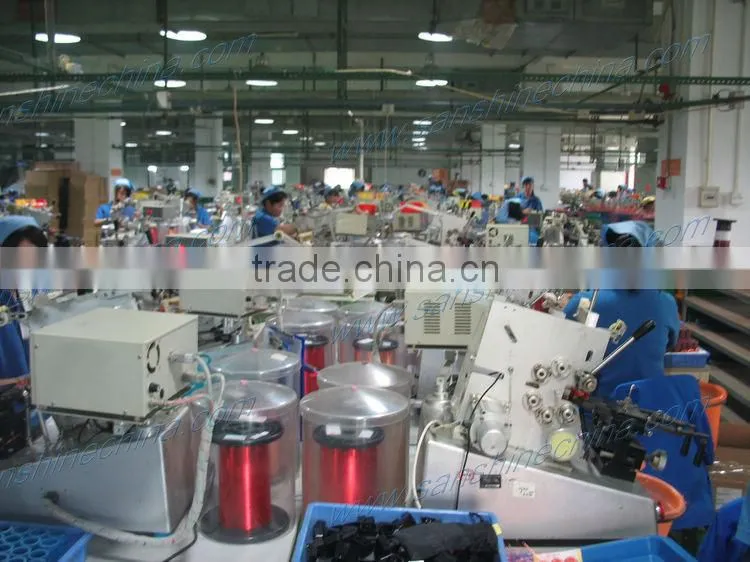

SS900S4 slider type automatic toroid winding machines are working in user's factory

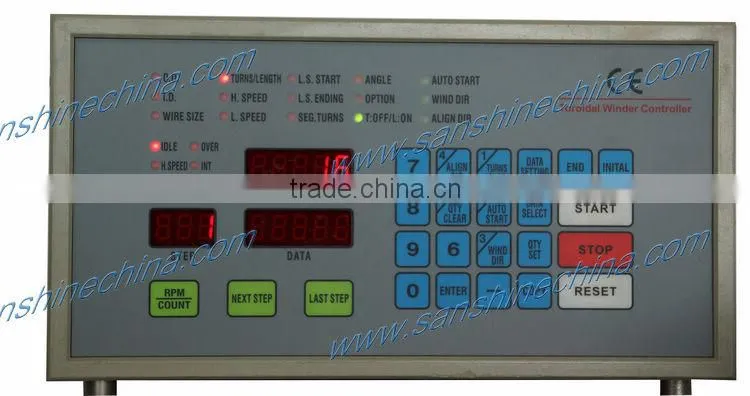

CNC controller panel of SS900S4 slider type automatic toroid winding machine
Buttons panel of of SS900S4 slider type automatic toroid winding machine
