Help CenterChinese Supplier Earth Moving Machine Log Loader With Trailer Wheel Loader Price for Sale
Related Products
-
Manufacture China With High Quality Construction Machinery Mini Excavator Wheel Backhoe Loader l Skid Steer Loader for SaleUS$ 15,000 - 50,000MOQ: 1 Set -
Chinese Constrction Machine WZ30-25 Wheel Mini Tractor Backhoe Loader for SaleUS$ 9,000 - 60,000MOQ: 1 Set
-
Chinese Articulated Mini Used Wheel Loader Spare Parts Tires for Sale Price List for 17.5-25 Zl50gUS$ 10000.00 - 10000.00MOQ: 1 Set
-
Hot Sale Factory Supply John Deere Tractor Front Loader With 4 in 1 BucketUS$ 10000.00 - 10000.00MOQ: 1 Set
-
EVERUN Brand New 2.0 Ton CE Approved Wheel Loader With Electric Joystick/Quick Hitch/Euroiii Engine/SweeperUS$ 10000.00 - 10000.00MOQ: 1 Set
Chinese maufacture SAM857 5 ton wheel front end loader for sale
Performance |
1 |
rated load |
5000kg |
2 |
overall weight |
17100kg |
|
3 |
rated bucket capacity |
3m3 |
|
4 |
maximum tractive force |
152KN |
|
5 |
maximum breakout force |
≥170KN |
|
6 |
maximum grade ability |
30℃ |
|
7 |
maximum dump height |
3150mm |
|
8 |
maximum dump reach |
1250mm |
|
9 |
overall dimension (L×W×H) |
7920×3050×3400mm |
|
10 |
minimum turning radius |
6640mm |
|
Engine |
11 |
model |
Wei chai Steyr . |
12 |
type |
lnline water cooling dry cylinder injection |
|
13 |
No. of cylinder-bore/stroke |
6-126×130mm |
|
14 |
rated power |
162kw--2400r/min |
|
15 |
maximum torque |
860N.m |
|
16 |
min fuel-consume ratio |
≤215g/kw.h |
|
Transmission system |
17 |
torque converter |
)Single-stage,two-phase,four-element (dual-turbine) |
18 |
gearbox mode |
power shift, planetary structure |
|
19 |
gear shift |
two forward and one reverse gears |
|
20 |
maximum speed |
38km/h |
|
Drive axles |
21 |
main reducing spiral |
bevel gear grade 1reduction |
22 |
decelerating mode |
planetary reduction,grade 1 |
|
23 |
wheel base (mm) |
3200mm |
|
24 |
wheel tread |
2250mm |
|
25 |
minimum ground clearance |
450mm |
|
Hydraulic system |
26 |
system working pressure |
18MPa |
27 |
boom lifting time |
5.95±0.2s |
|
28 |
total time |
10.95±0.5s |
|
29 |
fuel tank capacity |
300L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air over hydraulic disc brake on 4 wheels |
32 |
parking brake |
manual parking brake |
|
Tyre |
33 |
type specification |
23.5-25 |
34 |
front tyre pressure |
0.4Mpa |
|
35 |
rear tyre pressure |
0.35Mpa |

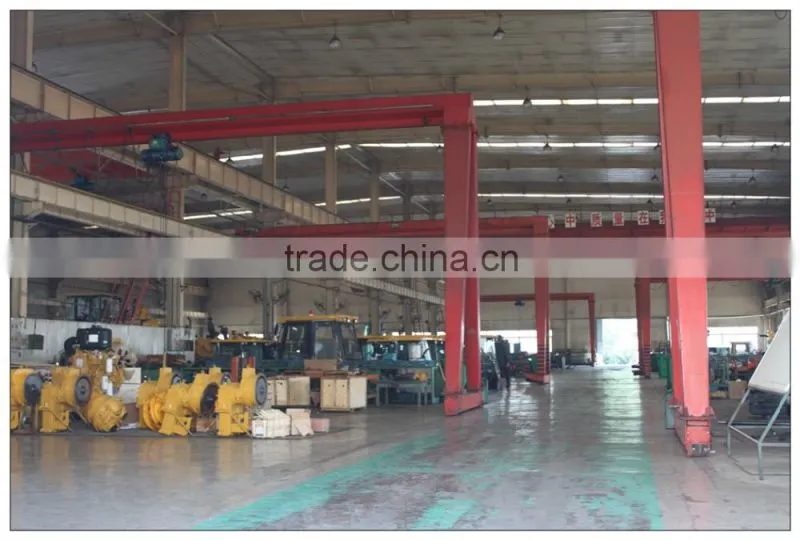

WORKSHOP
1.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge, transmissions, and many parts designed and produced by ourselves, always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce production costs to ensure that our price is competitive.
3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your questions at any time. Second, professional maintenance team with
senior technicians, ready to provide support services to users and dealers. Most problems can be solved within 24 hours.
4)Fast Delivery: Under normal circumstances, we can delivery with 10 working days in factory after receiving pre-payment.
2.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without “soft clauses” can be accepted.
3.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.
4.What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
5. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust our price based on two situations:
1)The rate of USD
2)The price of material
Other questions, please contact us.
