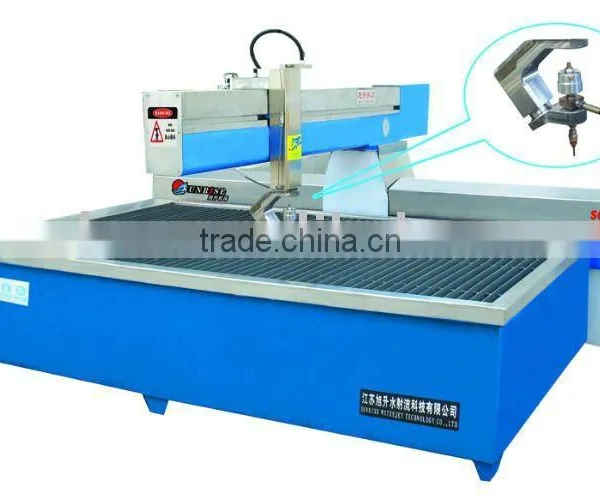

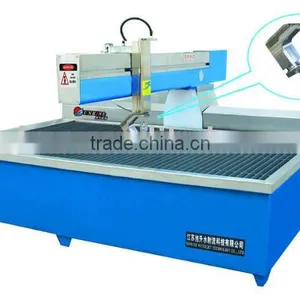

Granite Water Cutting 2.5m x 1.5m
US$ 30,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Marble
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Glass Cutting MachineUS$ 32,000 - 70,000MOQ: 1 Set -
KMT Pump Metal Cutting MachineUS$ 32,000 - 60,000MOQ: 1 Set
-
High Pressure Waterjet Cutting MachineUS$ 30,000 - 50,000MOQ: 1 Set
-
Cnc Glass Cutting MachineUS$ 35,000 - 60,000MOQ: 1 Set
-
Granite Cutting MachineUS$ 40,000 - 70,000MOQ: 1 Set
Condition
New
Type
Stone Cutting Machine
Use
Marble
Production Capacity
400 sets
Place of Origin
Jiangsu, China
Brand Name
sunrise
Model Number
CUX400-SQ2515
Voltage
480V
Power(W)
30kw
Dimension(L*W*H)
2m x 3m
Weight
8tons
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.basicially,cut any materials ld water cut no heat generated 3.no need to change cutter 4.operation easily 5.low costModel |
SQ1313 |
SQ2515 |
SQ3020 |
SQ4020 |
Processing scope |
1.3m×1.3m |
2.5m×1.5m |
3.0m×2.0m |
4.0m×2.0m |
Form of machine |
Cantilever |
|||
Runing speed |
0-10m/min |
|||

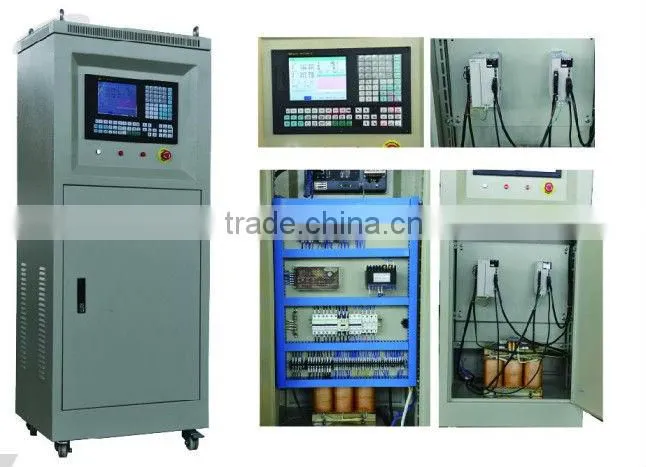

Control system |
AC servo system |
|||
Control accuracy |
±0.02mm |
|||
Cutting accuracy |
±0.1mm |
|||
Max working pressure |
400Mpa(60000psi) |
|||
Max.flow rate of UHP water |
3.8L/in |
|||
Motor power of oil pump |
22kw/30kw |
|||
Power supply |
380V 50HZ |
|||
Metal cutting machine:1, cut metal in thickness 130mm; 2,cut metal in smooth edge;3, high work efficiency;4,save produce cost.

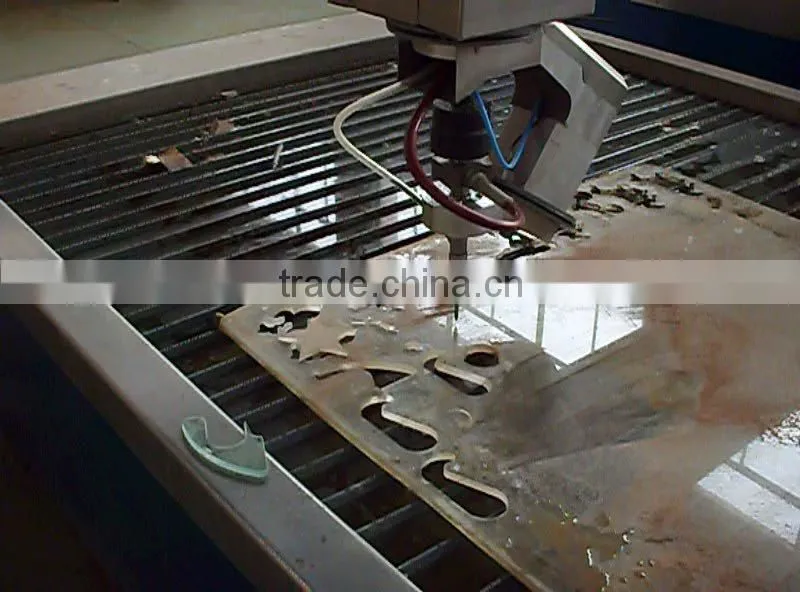

waterjet machine can cut any metal or non-metal materials ,there is no heat generated during cutting.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2006
Factory Size
50,000-100,000 square meters
Total Employees
51 - 100 People
