Specifications

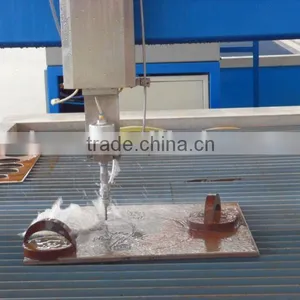

CNC Stone Cutting Machine, Cantilever Structure, in high and steady quality, convient for cutting any material in any shape.Advantages of Waterjet Cutting over Laser or Plasma.
Environmentally Friendly. No gasses or fumes produced while cutting. Machine uses only Water and Garnet.
No heat affected zone, so no warping or change in chemical composition.
Clean cut with variable finish so little or no hand finishing required after cutting. Tight inside corners are achievable
5th axis head attached to this machine so angles up to 55 degrees are capable. Intricate shapes with high accuracy are possible very easily.
Easy set up. Low operating costs. Increased productivity. Raw material savings. Higher quality parts.
Model |
SQ1313 |
SQ2515 |
SQ3020 |
SQ4020 |
Processing scope |
1.3m×1.3m |
2.5m×1.5m |
3.0m×2.0m |
4.0m×2.0m |
Form of machine |
Cantilever |
|||
Runing speed |
0-10m/min |
|||
Control system |
AC servo system |
|||
Control accuracy |
±0.002mm |
|||
Cutting accuracy |
±0.1mm |
|||
Max working pressure |
400Mpa(60000psi) |
|||
Max.flow rate of UHP water |
3.8L/in |
|||
Motor power of oil pump |
22kw/30kw |
|||
Power supply |
380V 50HZ |
|||
