Home > Industrial Equipment & Components > Valve > Ball Valve > ZCLF-50F Pilot Steam Flange Solenoid Valve

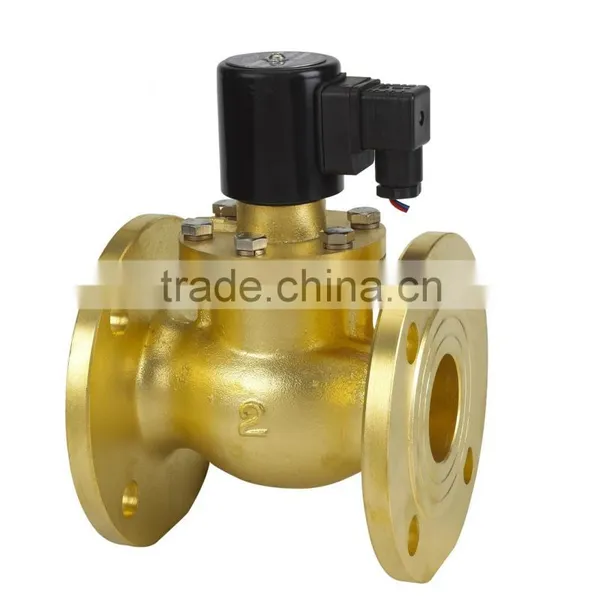

ZCLF-50F Pilot Steam Flange Solenoid Valve
US$ 35 - 415
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pilot
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZCLF-50CF Pilot Cast Iron Steam Flange Solenoid ValveUS$ 35 - 415MOQ: 1 Set -
ZCLF-25 Pilot Brass Steam Flange Solenoid ValveUS$ 35 - 415MOQ: 1 Set
-
ZCLF Steam Solenoid ValveNegotiableMOQ: 1 Piece
-
ZCLF Flange Big Size Solenoid Valve G1.5"--4"NegotiableMOQ: 1 Piece
-
ZCLF-50CF Flange Big Size Solenoid Valve G1.5"--4"NegotiableMOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Pilot
Pressure
Medium Pressure
Power
Solenoid
Material
Brass
Temperature of Media
High Temperature
Media
Water
Port Size
1/2"~4"
Place of Origin
Zhejiang, China
Model Number
ZCLF-50F
Brand Name
Round Star
Specifications
1)flange Solenoid valve2)Medium:steam, water, oil
3)Temp.:-5-180 degree
4)1/2"~2", brass
11/2"~4", cast iron big flange
flange solenoid valve
1)Solenoid valve
2)Medium:steam, water, oil
3)Temp.:-5-180 degree
4)1/2"~2", brass
11/2"~4", cast iron big flange
5)Sealing material:PTFE
6)Protection class: IP54
| Model | ZCLF-15 | ZCLF-20 | ZCLF-25 | ZCLF-32 | ZCLF-40 | ZCLF-50 | ZCLF-40CF | ZCLF-50CF | ZCLF-65CF | ZCLF-80CF | ZCLF-100CF |
| BODY MATERAIL | BRASS | CAST IRON | |||||||||
| CONNECTION | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | FLANGE | ||||
| DN MM | 15 | 20 | 25 | 32 | 40 | 50 | 40 | 50 | 65 | 80 | 100 |
| CV VALUE | 5.2 | 8.5 | 15.3 | 20.4 | 31 | 51 | 31 | 51 | 76 | 119 | 187 |
| MDEIUM TEMP. | -5-180 | ||||||||||
| PRESSURE BAR | N/C:0.4-16; N/O: 0.4-8 | ||||||||||
| POWER | 220V-230V AC /50-60HZ; 110V-120V AC/50-60HZ; DC 24V; DC 12V; RANGE;-/+10% | ||||||||||
