2*36/40W Recessed Lamp Tray, Lamp Panel, Grill Lamp Tray

2*36/40W Recessed Lamp Tray, Lamp Panel, Grill Lamp Tray thumbnail-1
2*36/40W Recessed Lamp Tray, Lamp Panel, Grill Lamp Tray photo-1
US$ 8 - 10.1 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ROMAN
Model Number:
GI240IQ1-B1
Contact Supplier Request Quote Chat Now
Foshan Shunde Roman Electrical Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Rongqi
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ROMAN
Model Number GI240IQ1-B1
Light Source Fluorescent
Install Style Embeded
Reflector Mirror
Ballast Other, Electromagnetic, electronic or magnetic ballast
Grid Shape I
Voltage 220v

Specifications

Inlaid grill lamp tray fro T8/T10 18/20W or 36/40W tubes
0.4mm-0.60mm steel, power painting,
0.3mm chinese alunium

Recessed Lamp Tray, Lamp Panel, Grille Light Fixture Features:

2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

Model And Specifications:

  1. Model and spec:

GI120IQ1-B1: T8/T10-1*17/18/20W, 600*150mm/595*145mm/625*175mm;

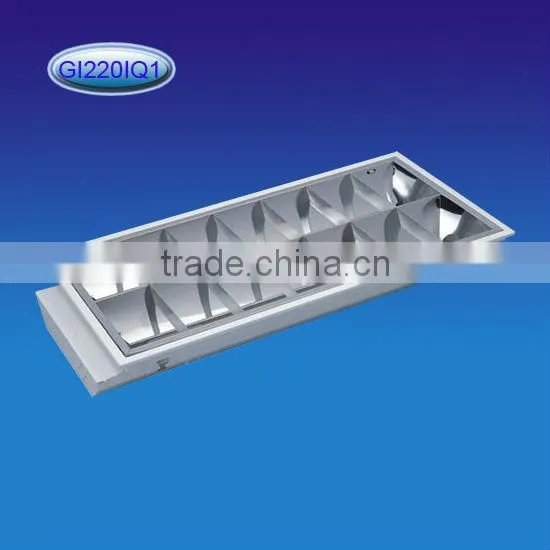

GI220IQ1-B1: T8/T10-2*17/18/20W, 600*300mm/595*295mm/625*325mm;

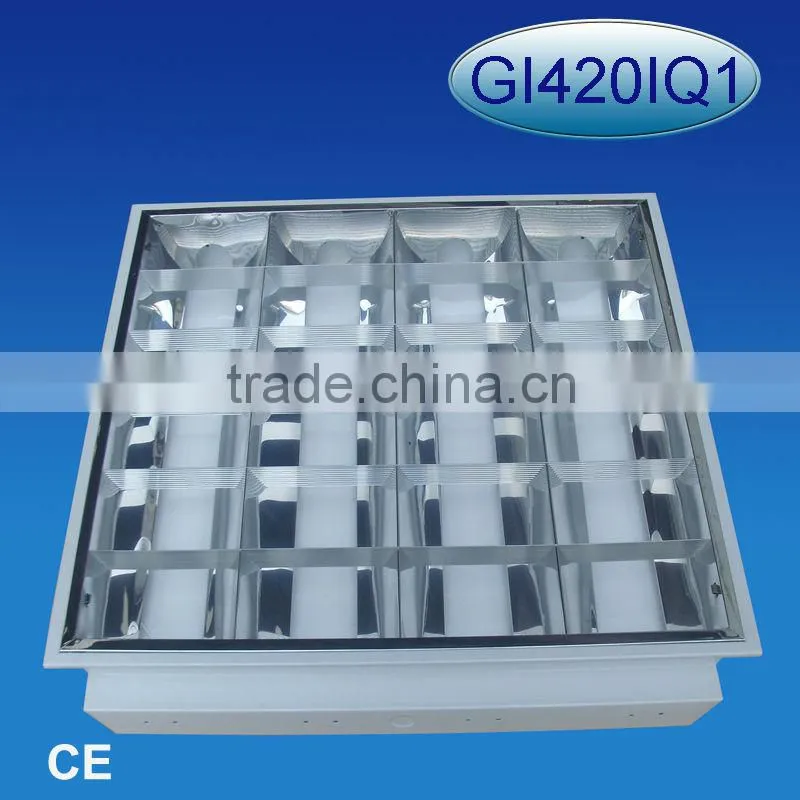

GI320IQ1-B1: T8/T10-3*17/18/20W, 600*600mm/595*595mm/625*625mm;

GI420IQ1-B1: T8/T10-4*17/18/20W, 600*600mm/595*600mm/625*625mm;

GI140IQ1-B1: T8/T10-1*32/36/40W, 1200*150mm/1195*145mm/1225*175mm;

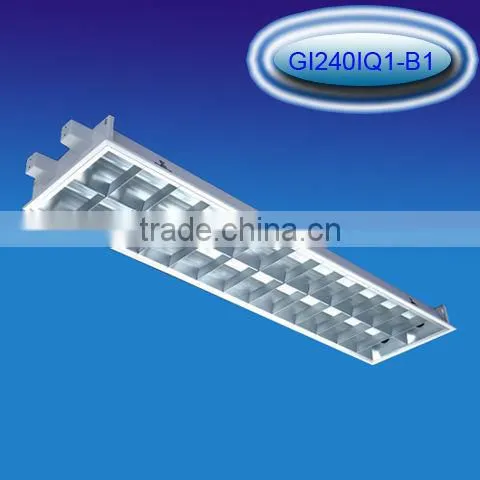

GI240IQ1-B1: T8/T10-2*32/36/40W, 1200*300mm/1195*295mm/1225*325mm;

GI340IQ1-B1: T8/T10-3*32/36/40W, 1200*600mm/1195*595mm/1225*625mm;

GI440IQ1-B1: T8/T10-4*32/36/40W, 1200*600mm/1195*595mm/1225*625mm;

GI160IQ1-B1: T8/T10-1*58/65W, 1500*150mm/1495*145mm/1525*175mm;

GI260IQ1-B1: T8/T10-2*58/65W, 1500*300mm/1495*295mm/1525*325mm;

GI360IQ1-B1: T8/T10-3*58/65W, 1500*150mm/1495*595mm/1525*625mm;

GI460IQ1-B1: T8/T10-4*58/65W, 600*150mm/1495*595mm/1525*625mm;

  1. Voltage: 80-120V/60Hz,180-230V/50Hz,80-270V/50/60Hz.

Material Feature:

  1. Housing: 0.40-0.60mm cold-roll steel with electrostatic powder coated finish;
  2. Louver: high purifier 0.30-0.35mm Chinese aluminum with 86% reflection, or 0.4mm Germany aluminum with 96% reflection;
  3. Lamp holder: ABS or PC anti-fire plastic, CE,VDE, or UL certificated;
  4. Wire: pure copper wire, 0.5-0.8mm2, CE,VDE or UL certificated;

 Design Feature:

  1. The air-conditioning lamp tray integrate the project luminaire, commercial luminaire and air outlet, facilitating the installation exercise, saving project cost, and playing a decorative landscaping work;
  2. The Inclined bottom design, can be matched with a variety of different structure of ceiling keel.
  3. The air stream line design ensure the enough air-conditioning wind out, and the adjustable grill can be change the wind blowing way;
  4. Double cambered grille and the arc-shaped side plate, the lamp body fluid lines;
  5. The wider bat wing light distribution, double arc grille has decomposition glare, higher diffusion rate
  6. Design of optical professional distribution, ensure the light distribution curve is more scientific and reasonable, avoiding glare, and result more even and soft light

Available Light Source:

  1. Traditional T5 lamp 28W or 54W (the tube length without pins are 1149mm) ;
  2. Traditional T8 lamp 32/36W (the tube length without pins are 1198-1200mm);
  3. Traditional T10 lamp 40W (the tube length without pins are 1198-1200mm);
  4. T5 type LED lamp 6-10W (the tube length without pins are 1149mm) ;
  5. T8/T10 type LED lamp 15-20W (the tube length without pins are 1198-1200mm);

Control Gears:

  1. built-in pure copper wire magnetic ballast, collocated starter, rapid start, noiseless, more than five years life span;
  2. built-in high quality electronic ballast, ≥0.90PF, collocated EMC and protection system, extending the using life, more than three years;

Installation Attention:

  1. The available surface frame: 1200*600MM,1195*595MM,1198*598MM,1225*625MM;
  2. Installation: recessed, embedded, inlaid;
  3. Hole size of installation: (1175-1195)*(575-595)mm.

Package:

  1. Every piece packed into poly bag or paper box;
  2. 2pcs/ctn;
  3. Exported standard carton,

Carton size:

  1. T8/T10 (traditional and LED) types: 124*31*16.5cm, 124*34*16.5cm.

Application:

Office, supermarket, meeting room, business centre, hospital, work room, restaurant, Indoor parking lot, school, and other indoor lighting required.

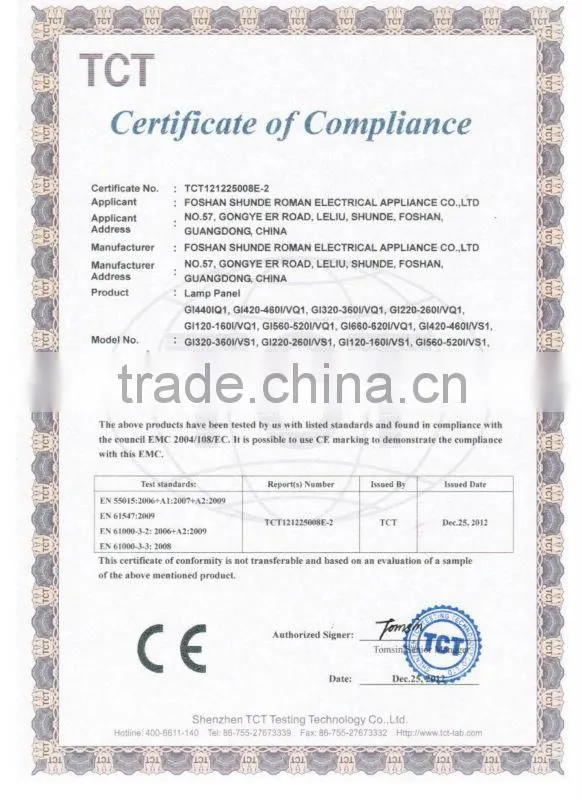

Certificated:

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray

More Spec And Types:

2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray      2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray



2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray       2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray

2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray       2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray

2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray        2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray

2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray       2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray





2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray       2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray







2*36/40W recessed lamp tray, lamp panel, grille light fixture, lamp house, lighting fixture, light fixture,grille lamp fixture

2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray       2*36/40W Recessed Lamp Tray, Lamp panel, Grill lamp tray
