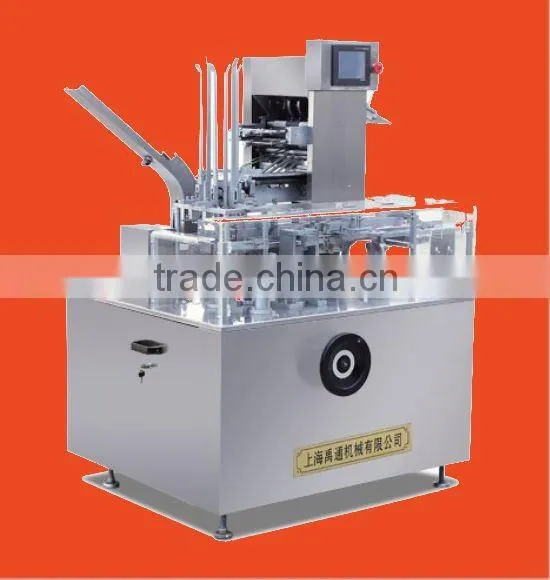

Cartoning Machine
US$ 30,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, health products,pharmacy,food,&cosmetics
Packaging Type:
Other, board
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Other, health products,pharmacy,food,&cosmetics
Packaging Type
Other, board
Packaging Material
Other, carton
Automatic Grade
Automatic
Power
1.4 Kw
Place of Origin
Shanghai, China
Brand Name
yutong
Model Number
YTZ-100B Automatic Board Encasing Machine
Specifications
cartoning machine1)for pharmacy,cosmetics,etc
2)one-person operate
3)low price, quick delivery
4)good after-sale service
cartoning machine
Main Technical Parameters
model
YTZ-100B Automatic Board Encasing Machine
production capacity
60-100 cartons/minute
power supply
50HZ 380v
total power
1.4KW
compressed air
0.5-0.8Mpa
air consumption
5-20L/minute
vacuum pressure
(with vacuum pump)-0.08Mpa
overall weight
900KG
overall dimension
L1200*W1100*H1550mm
after-shaping
dimentionL(60-200)*W(30-100)*H(12-55mm)
paper characteristics
of the carton250-400g/M2
instruction dimension
L(70-200mm)*W(100-160mm)
paper characteristics
of the instruction45_80g/M2
| packing machine main characteristics: - The main machine adopts frequency control,PLC automatic control system. - Multiple automatic detective devices are equipped for all materials the unqualified products will be detected and rejected. - It adopts human-machine interface operation system with easy and convinient operation ,and automatically displays the working speed,counting function. - Automatically fold the instruction for 1-4 folds,and automatically convey the instruction into the carton. - synchronously &automatically print 2-4 rows of steel-seal lot numbers. - Automatically display failures ,stop/alarm ,and display the operation and maintenance methods. - Realize multiple specification adjustment on one machine,the adjustment is simple and convinient - This series encasing machine can be combined with labeling machine ,bottle packing line,blister packaging machine,pillow packaging machine,transparent membrance 3D packing machine and strapping machine to form a production line,so as to improve the product grade and improve the productivity. |
