Home > Electrical & Electronics > Telecommunication & Broadcasting > VoIP Products > E1 R2 ISDN Converter Gateway

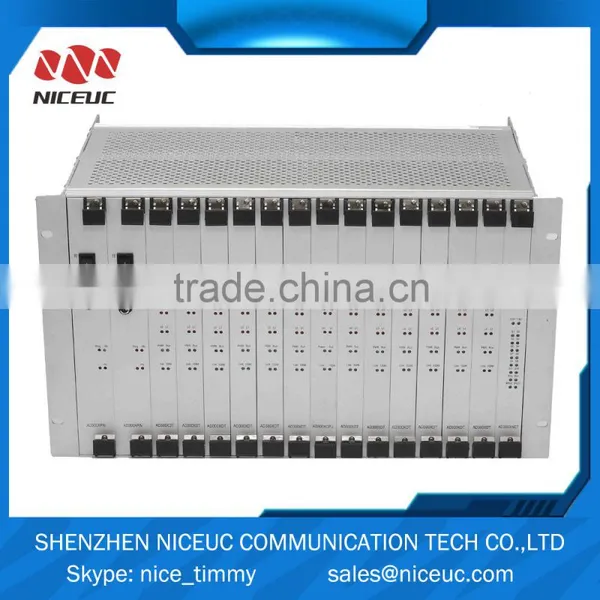

E1 R2 ISDN Converter Gateway

Name: E1 R2 ISDN Converter Gateway
Brand: NICE
SKU: 105529641

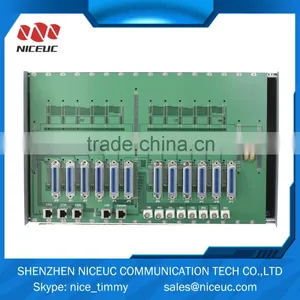

E1 R2 ISDN Converter Gateway thumbnail-1

E1 R2 ISDN Converter Gateway thumbnail-2

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

NICE

Model Number:

NC-AD300XD

Contact Supplier Request Quote Chat Now

Shenzhen Niceuc Communication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name NICE

Model Number NC-AD300XD

Type VoIP Gateway

E1 R2 ISDN Converter Gateway

What is a Signaling Converter/gateway?

A Signaling Converter enables network connectivity by performing signaling conversion between various switches and equipment that use different signaling protocols

Description:

NC-AD300XD is a carrier-grade embedded operating system gateway product which designed by NiceComm to meet the demand of large capacity signaling voice conversion.it be used insert box structure, high performance CPU.and software be based on the real-time embedded OS, powerful processor.The major job for AD300XD is to complete the conversion between signalings, it provides a variety of trunking and signaling interface, and can also support secondary development CTI interface. Anyway,it can be used for a variety of telcomm value-added services such as call center.

Specialty:
·Signaling support: SS7, PRI, Q.SIG, R2, V5.2;
·Interface Connector: E1 maximum 100,10/100M Ethernet×2, RS232 console×2;
·Link: SS7 links×16, PRI×16,V5 master link×1 V5 slave link×1;
·Switching Volume: 4096 x 4096;
·Clocking accuracy: stratum 3 Clock;
·Clocking Source: E1, inner;
·DSP resource: single board(the maximum is 4,can support 256MFC/128 DTMF/ 256 voice /128 mixed audio) ;

Function:
·Convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;
·Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing;
·Grouping switching management;
·User identifier, can provide black and white name list or connect to the database;
·Powerful calling function to provide customize calling mode;
·Voice management function with voice record and voice play;
·Meeting function;
·Calling number and called number modification;
·Real time telephone traffic monitor and handling;
·Can expand the capacity through multi stack;
·Provide CTI Link API interface for user program control;

Module information
Board configure			Number			Note
Mother board			1			Essential
digital trunk board			1-12			Optional
Network board			1			Essential
Power board			1-2			Essential
back board			1			Essential

Physical Specification
Interface			Standard				The Type of Connector
PCM			E1,G.703				BNC/RJ45
Ethernet Port			10/100Base-T,IEEE802.3				RJ45
Serial Port			RS232				RJ45

Item					Specification
Input voltage					-48v DC or 200~240V AC
Power					150 W
Dimension	(width×depth×height)				437mm×280mm×267mm (6U)
Weight					10 kgs
Environment		Temperature			0°C~50°C
		Rel Humidity			Less than 80%

Product Packaging
Packaging				Carton Box
Packaging Size				54cm38cm36cm

Shenzhen Niceuc Communication Technology CO., LTD, in shenzhen of China.

Niceuc Communication CO., LTD, in HongKong.

A professional manufacturer in VoIP Products from 2000 year.

Now, our main products and services are as follows:

·Signaling Converter: convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;

·VoIP Media Trunk Gateway: transform between SS7, ISDN PRI, V5.2, R2 and SIP, transfer PSTN to IP;

·IP-PBX: support CTI, SIP, FXO, FXS, E1, E&M, PTT, GSM/CDMA/WCDMA, Recording and Conference;

·PBX/PABX System: support E1, FXO, FXS, CTI, Recording and Conference;

·GSM Gateway: convert E1 to GSM, to save telephone expenses;

·Services: develop special customized service/software/features/products to customers with low cost.

As one supplier of Huawei, we will provide you with Huawei's quality by low price. Please feel free to contact us from now, thank you. (skype:nice_timmy)
