Precise Metal Tube Straightening and Cutting Machine

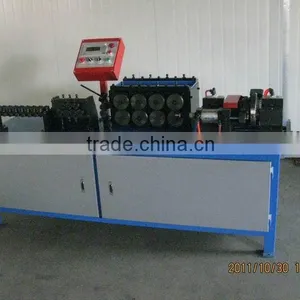

Precise Metal Tube Straightening and Cutting Machine photo-1

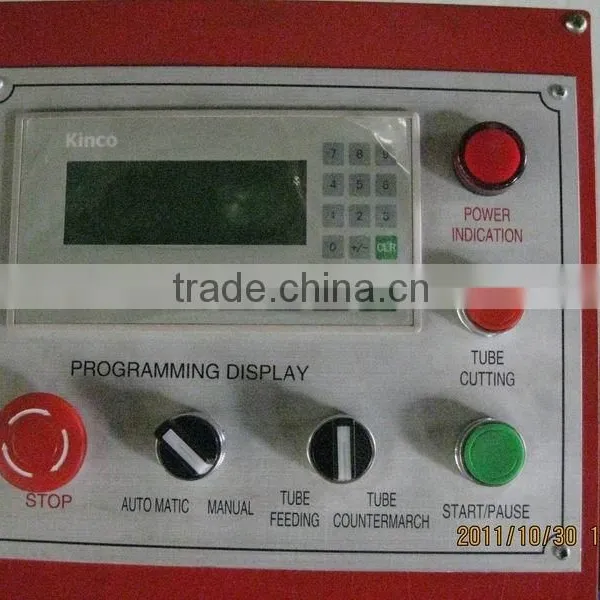

Precise Metal Tube Straightening and Cutting Machine photo-2
Precise Metal Tube Straightening and Cutting Machine photo-3
US$ 15000.00 - 20000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
BAOLIANG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name BAOLIANG
Model Number BLXZBT-8
Voltage 380V
Rated Power 2.2KW
Dimension(L*W*H) 2300*1000*1350mm
Weight 520KGS
Certification SGS
Warranty 1 Years Guarantee
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Bundy tube straightener machine

No
Item
Detail
Memo
1
tube diameter range
OD 4.0—8.0mm
/
2
tube thickness range
0.50-0.80mm
/
2
tube straightening length range
100-50000mm
/
3
straightening working speed
>=45meter/minute
different as tube size
4

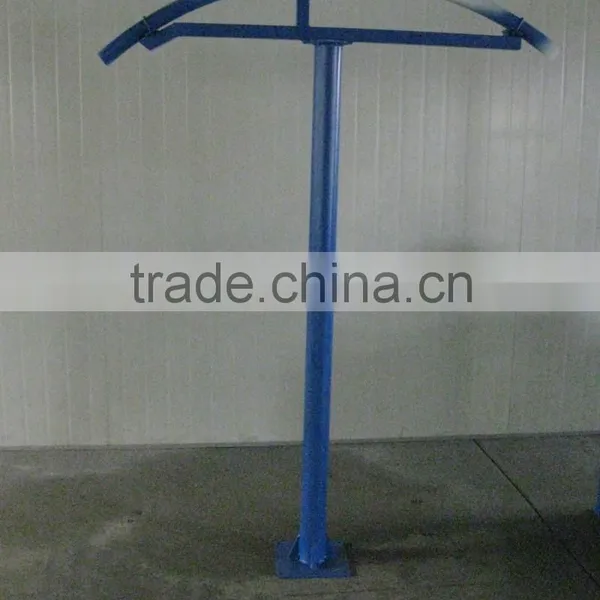

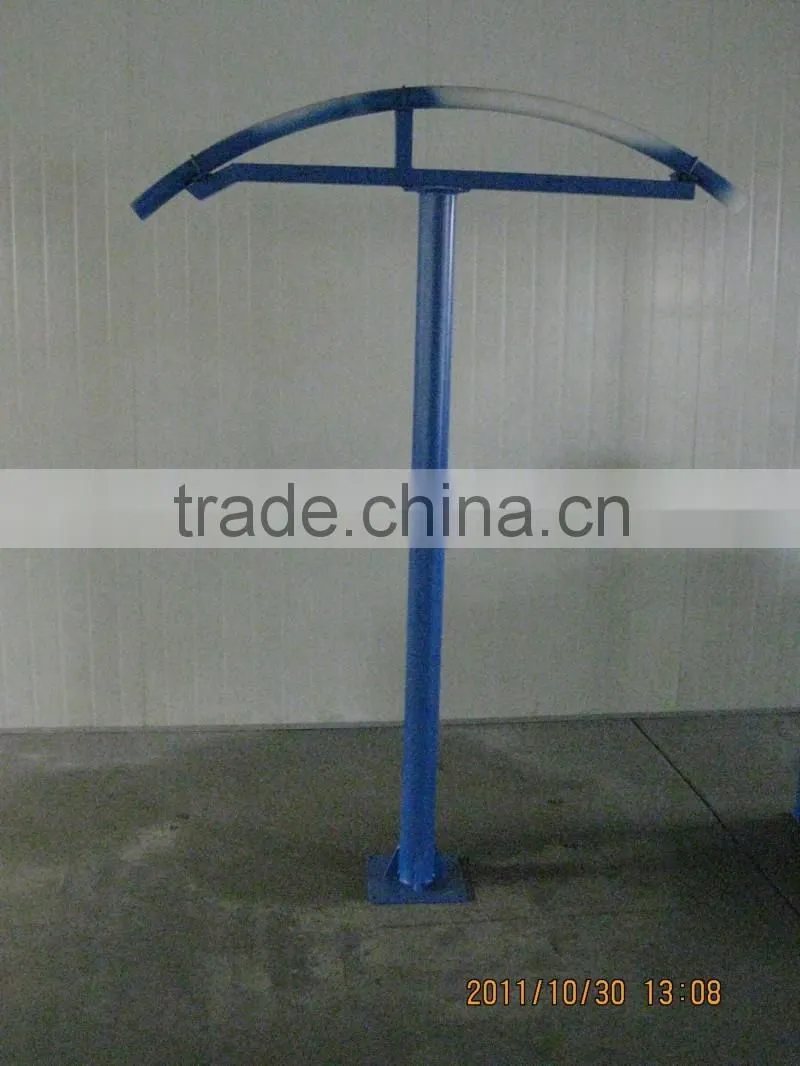

Material collection shelf
prepared by the user
/
5
length cutting tolerance
+/-1mm
/
6
power supply
380V/50Hz
3 phases 4 wires type
7
motor power
2.2KW, rev1440/rpm
Material feeding motor
0.75KW, rev1440/rpm
cutting motor
8
the pressure the air compressor
1MPa
Just need 0.6-0.8MPa in working
9
dimension
2300X1000X1350mm
Not included the material collection shelf
10
weight
520KG
/
Detailed Images
Packing & Delivery
Our Service

We can design the machine as the requirement of clients and supply all parts for sales service , any question and feedback, please contact us freely.
