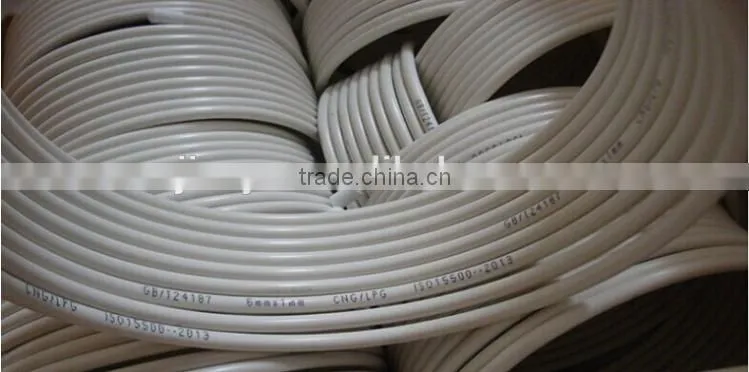

Help Center6.0x0.7mm CNG /LPG Tube
Related Products
-
Precision Cold Rolled Steel StripUS$ 800.00 - 1000.00MOQ: 3 Tons -
Steel Wire Tie Machine/condenser MachineUS$ 2000.00 - 2000.00MOQ: 1 Set
-
Steel Wire Tie MachineUS$ 2000.00 - 2000.00MOQ: 1 Set
-
Cubieboard 4 A80US$ 125.00 - 125.00MOQ: 10 Sets
-
Cubietruck Plus, Cubieboard 5US$ 85.00 - 88.00MOQ: 10 Sets
Specification
1. product name: CNG/LPG pipe
2. standard and Material: ISO15500, BHG-1 or as the customers' requirement to choose the material
3. Treatment: Soft annealed, hot dipped galvanized; Air-tight test 30MPa
4. Product usage: CNG high pressure tube is used for LPG , CNG sequential injection system conversion kits.
5. Tube surface with 5-8 um zinc coated, which can keep 72-100 hour salt spray Test without red rust.
6. Both ends of tube without rag, corner processing, smooth, absence of istortion.
7. Steel tube is welding tube with annealing treatment before zinc plating.
8. Inside of tube should be no rust
9.Bending tube with tools of 25mm radius, bending torsion should no more than 11NM
10. Packing: in carton case

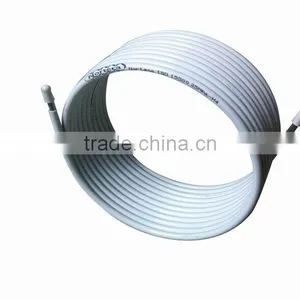

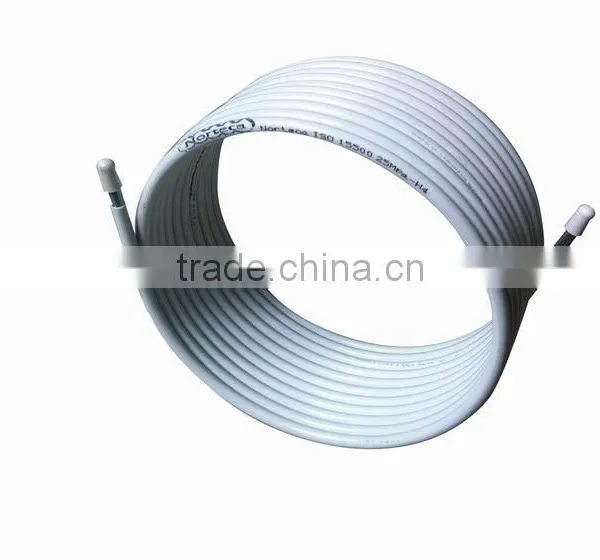

11. PVC package requirement
Steel tube should be covered with PVC after zinc plating, single wall thickness is 0.65±0.2mm.
There is 20-50mm naked tube without PVC at the roll ends. Both ends are fit with white plastic jacket.
Chemical composition and mechanical property
Chemical Composition
C |
Si |
Mn |
P |
S |
≤0.08% |
≤0.03% |
≤0.03% |
≤0.02% |
≤0.02% |
Size tolerance(mm)
Length |
Steel tube wall |
OD |
PVC tube wall |
Roll ID |
Cut-to-length ±50 |
1±0.1 |
±0.06~0.1 |
0.65±0.2 |
195-200 |
Mechanical Property
No. |
Test Item |
Technical Standard |
Test Result |
Remark |
1 |
Tensile Strength |
≥290MPa |
295MPa |
PASS |
2 |
Yield Strength |
≥180MPa |
189MPa |
PASS |
3 |
Elongation |
≥30% |
34% |
PASS |
4 |
Flaring Test |
Flaring≥25%, |
30% |
PASS |
5 |
Bending Test |
Bend 180o in a radius three times of the pipe diameter |
No crack or peeling after flaring |
PASS |
6 |
Flattening Test |
No crack after flattening |
No crack |
PASS |
7 |
Pressure Test |
Working Pressure≥26MPa |
32MPa |
PASS |
Burst Pressure≥135MPa |
140MPa |
PASS |
||
8 |
Salt Spray Test |
>48 hours |
72 hours |
PASS |

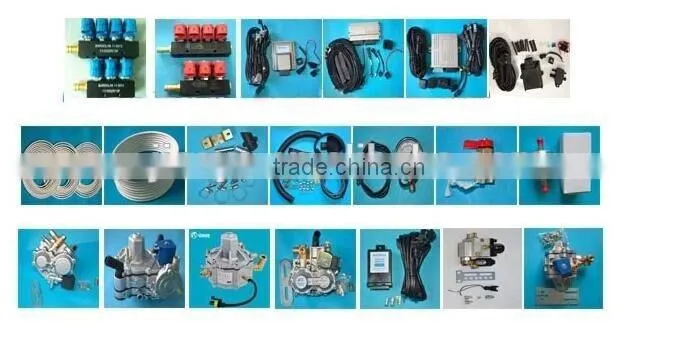

Application

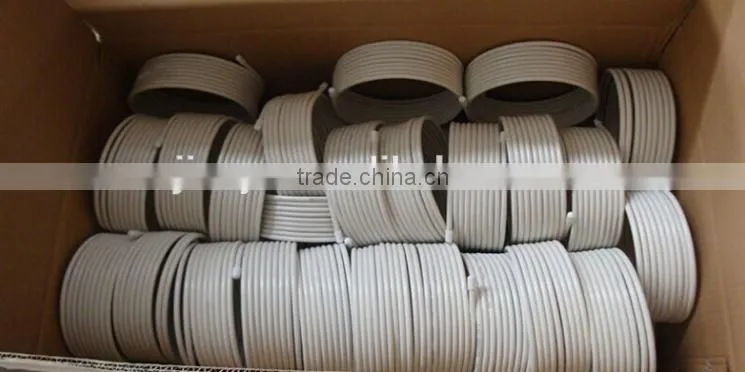

Packing Condition
Carton box
A. Pack 20 rolls of the length 6 m tube
B. Pack 20 rolls of the length 5.5 m tube
C. Pack 20 rolls of the length 4.5 m tube
