16 port gigabit PoE switch with 48V output IEEE802.3af
Feature
1. Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
2. Port1 to Port16 compatible with IEEE802.3af standard power
3. Supply (Maximum power of each port is 15.4W)
4. 16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 10/100 /1000Mbps SFP fiber uplink ports
5. Meets the standards of the IEEE 802.3af/ IEEE 802.3 10i and IEEE 802.3u standard
6. The packet forwarding speed of the wire-speed port is 1.488Mbps
7. Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
8. All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
9. 1U Rack mounted design, easy to install and use
10. Automatic adjustment, plug and play, no need software and protocol conversion

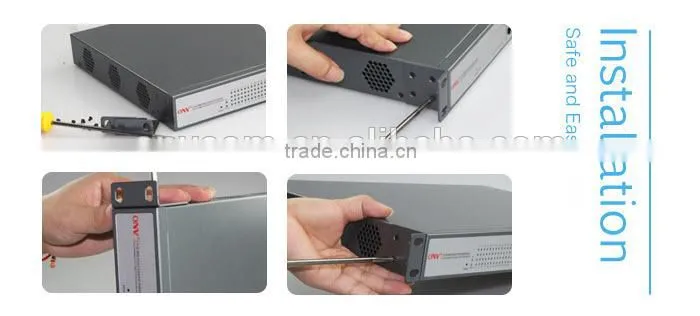

Installation Steps

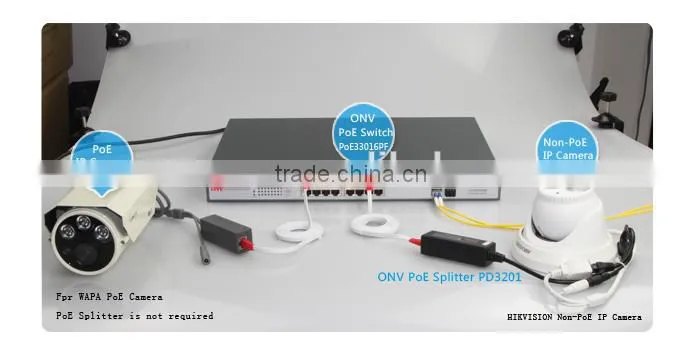

Physical Application Reference
The picture
Specification
| Product Name | 18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports 15.4W |
| Model | ONV-POE33016PF |
| Connector Type | 16x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or more UTP(≤100 meters); 1000BASE-TX: Cat5 or more UTP(≤100 meters) |
| Bandwidth | 52Gbps |
| Address Database Size | 8000 |
| MTBF | 190,000 hours (about 21 years) |
| Network Latency | less than 20 microsecond |
| Forwarding Mode | 1000M line speed forwarding; Packet Length: 10K; Packet Buffer: 4.1M |
| Buffer Memory | 96KB |
| Network Protocols | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control; IEEE 802.1af DTE Power via MDI |
| LED Display | Power, Network, PoE working status |
| PoE Ports | IEEE 802.3af, each port power is 15.4W; Port1 to Port16 support PoE power; The even number Port(1/3/5/7/9/11/13/15) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16) is mid-span(4/5+, 7/8- line pair) power supply |
| PoE Port Power | Port output power is 15.4W (IEEE802.3af) |
| PoE Standard | IEEE802.3af standard, each port power is 15.4W, total power is 260W |
| Working Environment | Working temperature:-20°~ 55°C , Storage temperature: -40°~ 85°C,Working Humidity: 5%~95%, non-condensing |
| Radiation | CE mark, commercial ; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
| Product Size | (LxWxH): 440 x 275 x 44.5mm |
| Warranty | 1 Year Warranty, Life-time Maintenance |
Order Information
Product Model: ONV-POE33016PF
Product Description: 18-Port gigabit PoE switch with 16 gigabit PoE ports and 2x gigabit SFP fiber ports; port1 to port16 supports POE IEEE 802.3af international standard, each port power is 15.4W, the total power is 260W
Ordering Note: The even number port is end-span (1/2+, 3/6- line pair) power supply, the odd number port is mid-span(4/5+, 7/8- line pair) power supply
Accessories in the Package:
Packing Lists |
18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports 15.4W (ONV-POE33016PF) |
Power Adapter Cable | |
User Guide | |
Warranty Card |
