Help Center9 Port Ethernet PoE Switch 48v With 1 Fiber Port (IEEE802.3af )
Related Products
-
24 PoE Ports+2 Gigabit SFP Uplink Fiber Ports (IEEE802.3af,15.4Watts)US$ 1 - 380MOQ: 1 Piece -
Switchs Manufacture 26 Port Gigabit POE Switch for IP Camera With 2 Gigabit SFP Uplink Fiber Port(15.4Watts)US$ 1 - 380MOQ: 1 Piece
-
( FOB Price) 24 Port Gigabit POE Switch With 2 Gigabit SFP Uplink Fiber Port(IEEE802.3af)US$ 1 - 380MOQ: 1 Piece
-
24 Port Gigabit Power Over Ethernet Switch With 24x 10/100/1000M RJ45 PoE Ports+2 Gigabit SFP Uplink Fiber PortsUS$ 1 - 380MOQ: 1 Piece
-
(IEEE802.3af,15.4Watts) ONV Swtichs POE Switch for IP Camera With 24 PoE Port+2 Uplink Fiber Port(IEEE802.3af)US$ 1 - 380MOQ: 1 Piece
Feature
IEEE 802.3af power on up to 8 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
8 10/100 Mbps Ports with AutoUplink™
One port is optical fiber SC interface of 155 Mbps
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 130W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch ONV-POE31008PF with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply

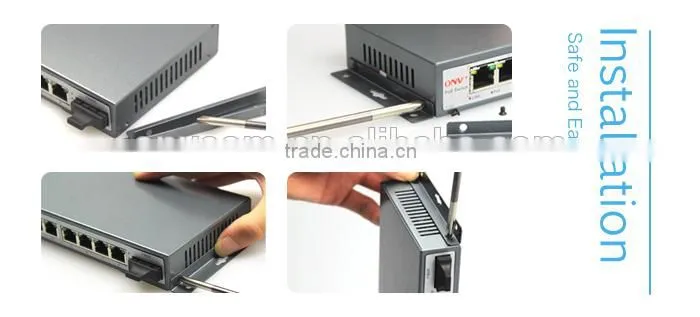

Installation Steps
Flexible
Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.
Plug and Play
The standards-based PoE Switch ONV-POE31008PF senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact
Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.

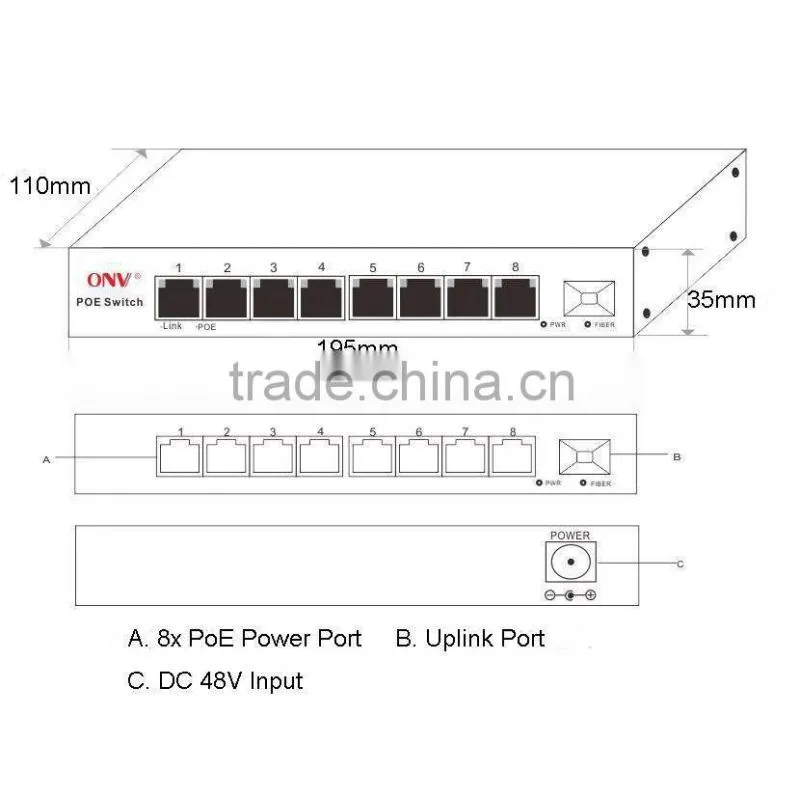

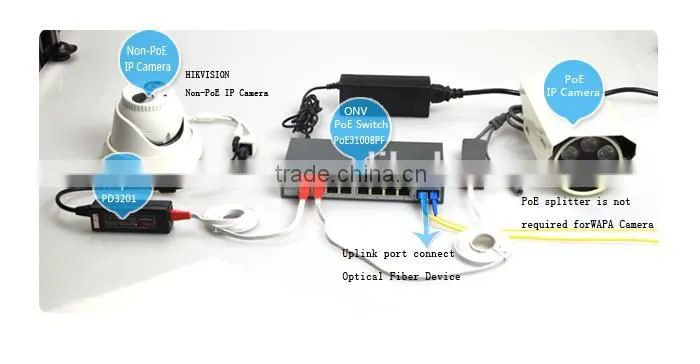

Physical Application Reference
Great Value
With data switching and Power over Ethernet integrated into one unit, the PoE Switch ONV-POE31008PF saves space, reduces cables and eliminates the requirement for dedicated electrical outlets – lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.
Product Display

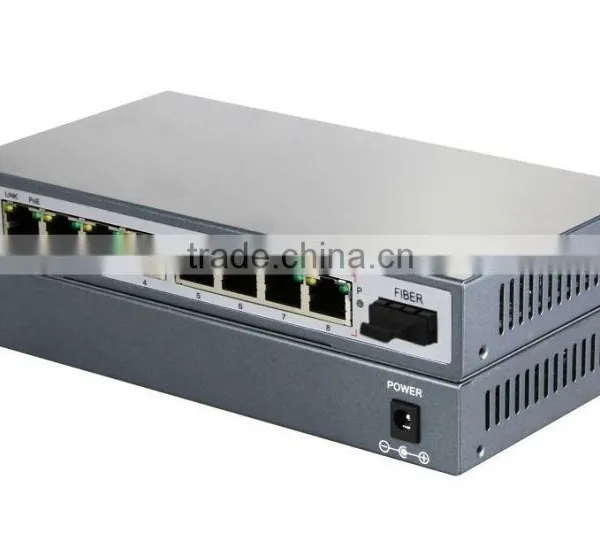

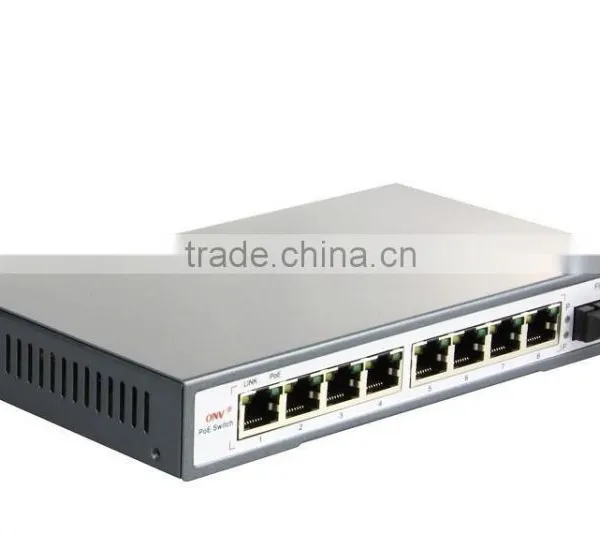

This product pictures:

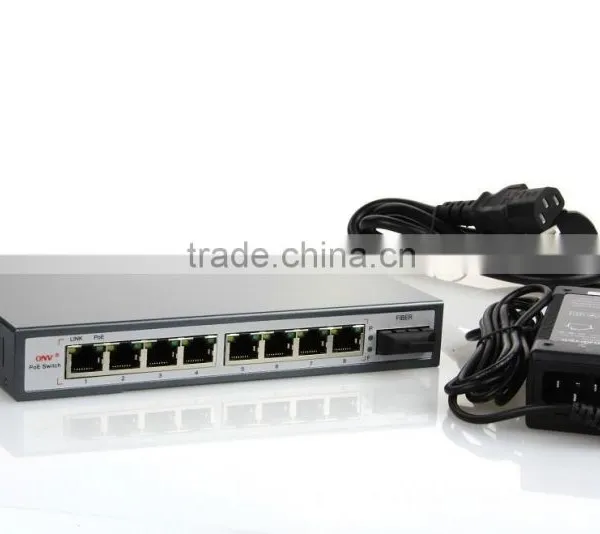

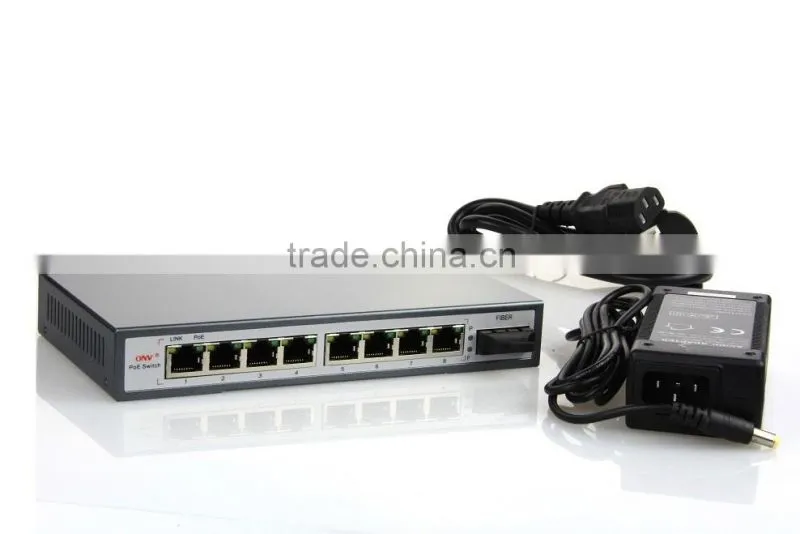

Accessories in the Package:
Certificate:
Factory and office picture
If you need further info or some other question,pls feel free to contact me
Thanks for your time
Daisy from ONV Co;Ltd
Skype:daisy.huang1321
Tel:86-755-33076632
