Specifications
1.NO need to install video cable from camera to display monitor2.Shorten the installation effort and time
3.save video cable

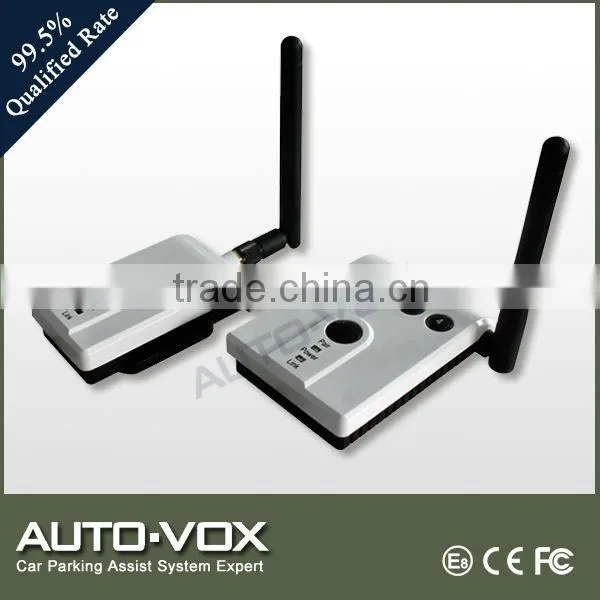

Wireless Video System digital transmitter receiver
APLICATION RANGE:
It is a series of high performance digital Wireless transceiver module for wireless rearview, wireless camera applications which integrates MPEG4 codec , FHSS base band , RF transceiver , AD&Flash,LCD drive and CVBS output. Especiallly helpful for Truck, bus, caravans, camping cars and mobile home as well as other industrial or heavy duty vehicles
• 2.4G DIGITAL WIRELESS Transceiver.
• NO need to install video cable from camera to display monitor. Shorten the installation effort and time.
• Good video quality, almost no loss which compared with original camera video output.
• No interference with other 2.4G wireless device! Video signal is much more stable than 2.4G analog wireless.
• Maximum 4 transmitters to one receiver. Every transimtter module can receive the same quality video.
• Transmission range: 300 meters in open space, 30-50 meters in real vehicle use.
• Water-resistance housing.
• Suitable for all vehicles which used 24V DC or 12V DC.
• Especiallly helpful for Truck, bus, caravans, camping cars and mobile home as well as other industrial or heavy duty vehicles.
How to pare the transmitters and receivers
First, choose your preferable channel (Channel 1, 2, 3, 4).
Secondly press the Channel Match buttons on receivers and transmitters simultaneously for 3 seconds.
The blue light flashes first, then it will become constant on to indicates the paring is completed successfully.
If you need to pare more transmitters, just repeat the above operation. One receiver can pare with Maximum four
cameras. If connect to 4 cameras, the four camera can work at the same time, but it can display only one channel’s video.
User can switch to different channels manually.
